Heavy-Duty Double-Sided Cantilever Racking, Column Spacing 1500 mm

Heavy-duty double-sided cantilever racking for long goods

Long goods take space, they get mixed up, and handling time goes up fast. This heavy-duty double-sided cantilever racking is built for the kind of stock that doesn’t fit well on standard shelving: long lengths, bundles and sheet materials that need clear access and strong support.

The rack is suitable for long goods storage in large production and storage areas, both indoors and outdoors. Typical goods include timber, steel tubes and other construction materials, as well as heavy sheets or bundled products. Because storage is horizontal and the cantilever design gives open access, you can reach what you need without moving other items first, and forklift handling is possible.

Why choose double-sided cantilever racking?

In a double-sided setup, the uprights form a central row and the arms carry loads on both sides. In practice, that means you get a lot of storage capacity from one run, while keeping the aisles clear for loading and picking. For warehouses that handle long goods every day, this layout is a straightforward way to reduce floor stacks and improve order.

Double-sided cantilever racking is typically used when you have access aisles on both sides of the rack row. If the rack will sit against a wall, a single-sided version is usually the right approach. With this model, the focus is on maximum capacity per row and easy, repeatable handling.

Designed for heavy loads and long materials

The racking is designed specifically for demanding, heavy-duty use. The combination of robust uprights and cantilever arms provides stable support for long products, whether you store them as individual lengths or in heavier bundles. The stated load ratings help you plan storage safely and keep the rack in good working condition over time.

Direct access supports faster picking and safer handling

Cantilever racking is popular for long goods for one simple reason: direct access. Instead of pulling stock out of a dense block, you can go straight to the bundle or length you need. That reduces handling steps, which is often where damage and delays start to appear.

Because this is a double-sided rack, you can organise stock by type, size or job order across both faces. For example, you can keep faster-moving items at a convenient height and position, while slower-moving lengths sit further along the row.

Quality materials and easy assembly

The racking is made from high-quality materials to provide reliable performance even in demanding conditions. It is designed so that it can be assembled and dismantled easily without special tools, which is helpful if your storage needs change or you need to rearrange a production area.

The rack is delivered as components and is straightforward to assemble using the included instructions. Good installation practice matters for any heavy-duty storage system: follow the instructions carefully, make sure the rack is positioned correctly for your site, and keep to the stated load ratings.

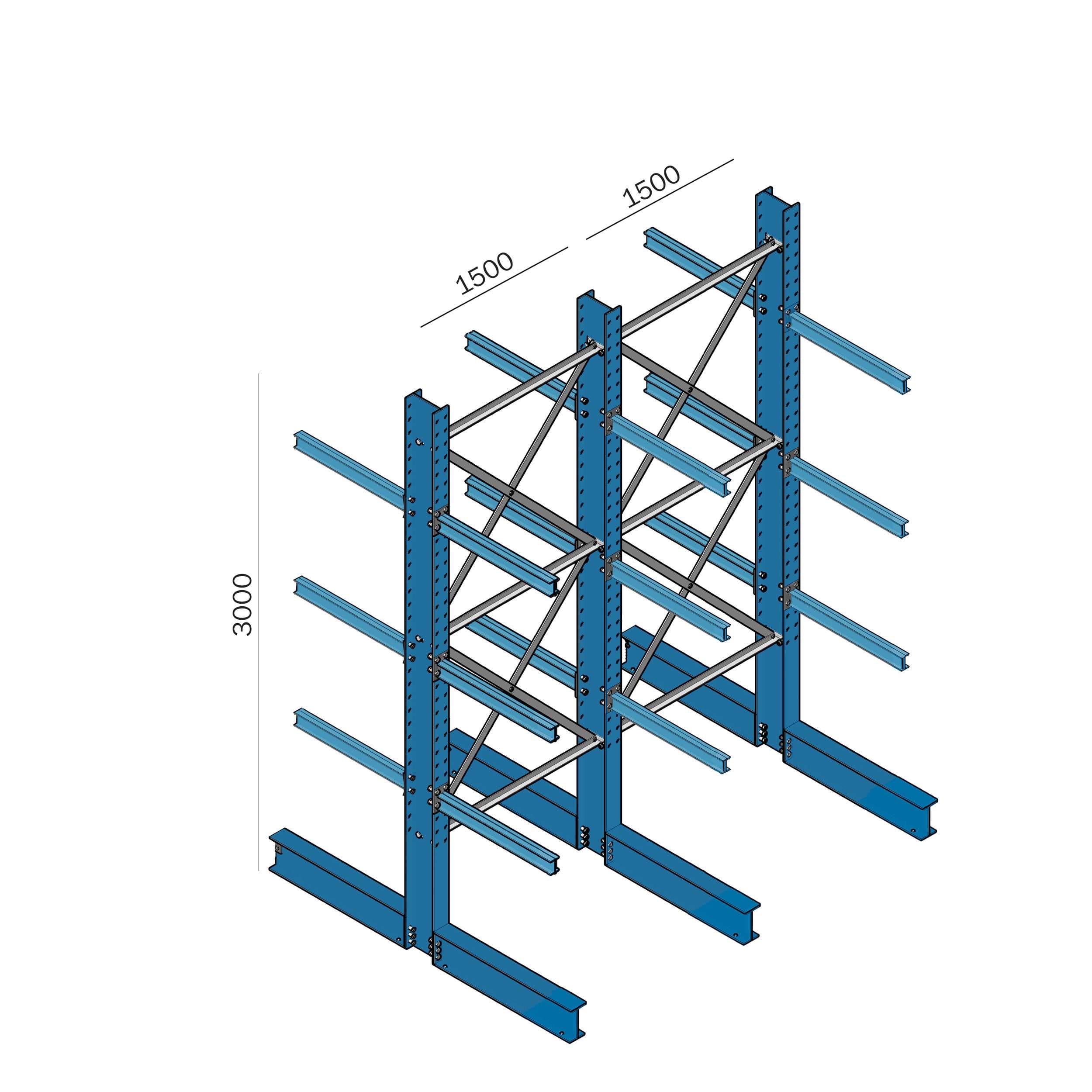

Technical data

• Configuration: heavy-duty cantilever racking, double-sided
• Upright spacing (centre distance): 1500 mm
• Upright height options: 3000 / 4000 / 5000 mm
• Arm length options: 1000 or 1200 mm
• Load capacity per arm: 1,250 kg
• Load capacity per upright: 5,000 kg per upright side

Delivery, installation and help with planning

We provide comprehensive transport and installation services. If you would like help planning your warehouse layout or choosing the right configuration for your goods and space, our experienced sales team can support you.
