Rocla Electric Pallet Stackers SWS/SPE

Rocla electric pallet stacker trucks – SWS, SPE and SP

The Rocla electric pallet stacker family is designed for the everyday realities of warehouse work: receiving, put‑away, replenishment and pallet transfer. These stacker trucks deliver stable handling, fast lifting and lowering, and a clear line of sight to the load. With a low centre of gravity and robust chassis, the trucks stay composed even when working at the top end of their rated lifting height.

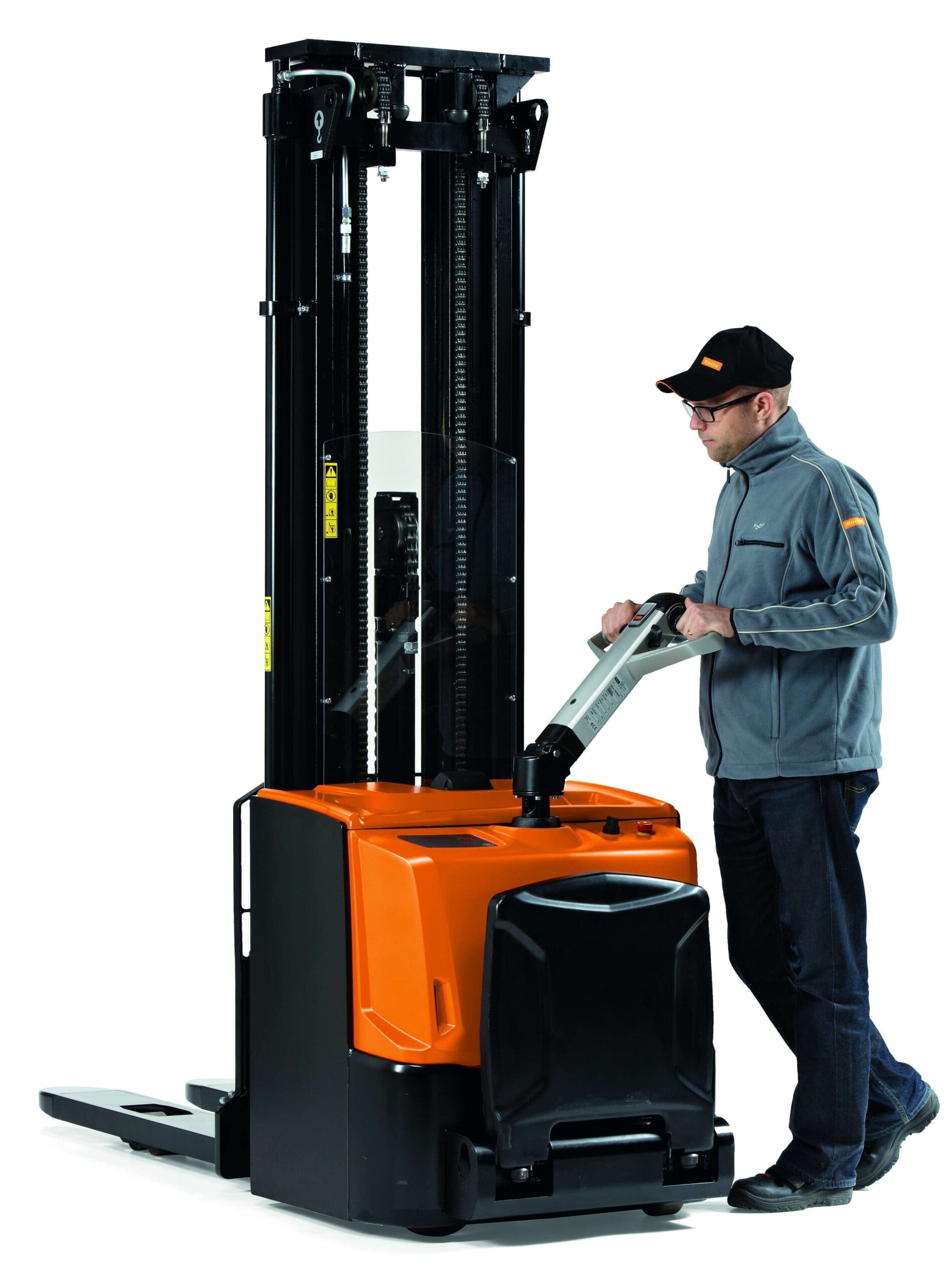

Walk‑behind electric pallet stacker Rocla SWS

The Rocla SWS is a compact, pedestrian stacker for narrow aisles and tight production areas. The tiller position and the mast design give the operator unobstructed visibility to the fork tips and the load, which adds confidence when working in racking. Despite its small footprint, SWS offers strong performance for everyday pallet stacking and short shuttle moves.

A range of mast and battery choices helps tailor the electric pallet stacker to the task.

Platform ride‑on pallet stackers Rocla SPE and SP

When working distances grow, a platform stacker saves minutes on every run. The Rocla SPE and Rocla SP models add a fold‑down operator platform so the truck can be used as a ride‑on stacker for transfers between zones, vehicle loading and all‑round warehouse duties. Strong masts, precise hydraulic control and the same stable chassis design allow confident stacking at height.

These pallet stacker trucks are the warehouse “all‑rounders”: equally at home at the goods‑in dock, in bulk storage or in picking support. Quick lift and lower speeds keep cycle times tight, while the platform helps the operator cover longer routes without fatigue.

Stand‑in and sit‑on stackers

Alongside the pedestrian and platform models, the Rocla range also includes stand‑in and sit‑on configurations for sustained, heavy‑duty shifts. The Rocla SSTac is a compact stand‑in stacker truck with high residual capacities and excellent agility in narrow aisles. Its ergonomic layout and hydraulic side supports enable safe handling of heavy loads at height.

• Capacities are 1200/1600/2000 kg
• Maximum lift heights of 6500/6300 mm

For long, continuous duty the Rocla SSI sit‑on electric pallet stacker brings a seated driving position and fast battery change for multi‑shift operation. Models with support arms are available at 1500 and 2000 kg capacities. Hydraulic side supports help maintain high residual capacities at large lift heights. Maximum lifting heights are 6500/6300 mm.

Battery options and energy management

The SWS models operate on a 24 V system with battery capacities from 150 Ah up to 375 Ah depending on configuration, as shown in the table above. Multiple mast and battery combinations are available across the range so each electric pallet stacker can be matched to its duty cycle.

Specifications

• Capacities: 1000–1600 kg (SWS/SPE/SP), 1200/1600/2000 kg (SSTac), 1500/2000 kg (SSI).
• Max lifting height: up to 5400 mm (SWS/SPE/SP) and up to 6500/6300 mm (SSTac/SSI).
• Power: 24 V with battery capacities from 150 to 375 Ah on SWS models.
