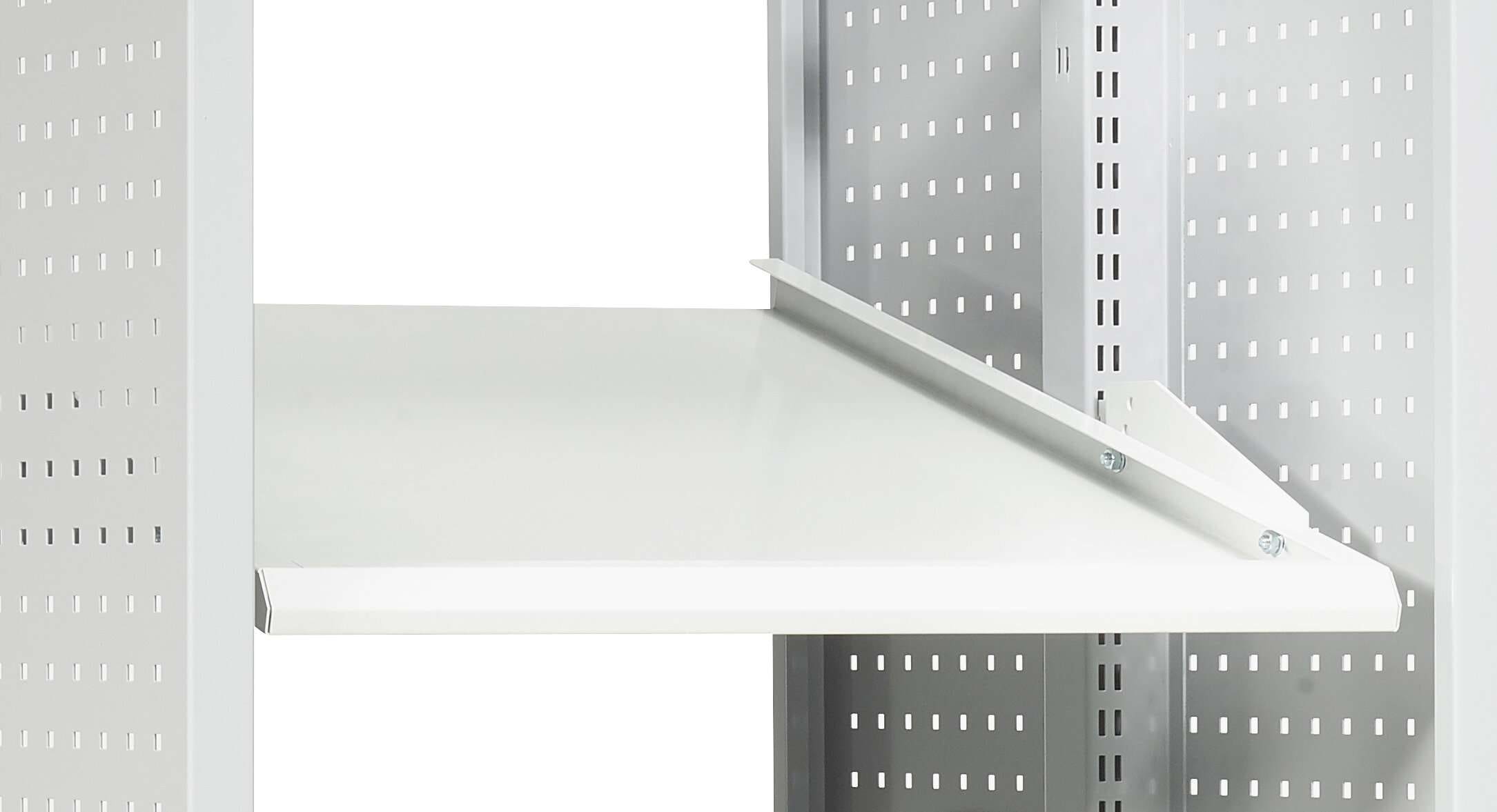

Treston M750 Flow-Through Shelf

Treston M750 Flow-Through Shelf – controlled gravity feed for parts at the workstation

Finnish-made Treston M750 Flow-Through Shelf is a straightforward way to keep small parts and unit goods moving in the right direction. By letting gravity do the work, you bring items to the front pick area and keep your workstation tidy and predictable.

What a flow-through shelf solves in production and intralogistics

You load items from one side and pick from the other. As soon as the front container is taken, the next one moves forward. This simple principle supports FIFO handling (first in, first out) and keeps the pick face stocked without constant walking and reaching.

On a workstation, a gravity-fed shelf is especially useful for parts that are handled many times a day: fasteners, electrical components, sub-assemblies, small boxes and ESD containers. The shelf creates a clear lane for each item type, which improves visual control and makes replenishment easier. In packing and kitting, it helps keep the workflow moving, because the next box is always ready at the same point.

Six angle positions

Different products move differently. A heavy metal part in a robust bin should not slide at the same speed as a lightweight plastic package. That is why the Treston M750 Flow-Through Shelf can be installed in six fixed positions between 0 and 25 degrees. The integrated mounting rail makes angle changes quick and repeatable.

150 kg load capacity in powder-coated steel

This flow-through shelf is made for daily industrial use. The rigid, powder-coated steel construction spreads the load evenly across the shelf surface, which helps the shelf stay straight even when fully loaded. With a maximum load of 150 kg, it supports demanding workstation storage where several bins or unit loads are kept ready for picking. The powder coating (RAL 7035, light grey) gives a durable, easy-to-wipe surface.

Made for the M750 module size and Treston accessories

The shelf is designed for Treston M-series frames in the M750 module size, so it integrates neatly into existing workstation and trolley setups. According to the product compatibility information, the Treston M750 Flow-Through Shelf is suitable for the following solutions:

• Concept ergonomic workbench
• Treston Multi general trolley
• Treston Tower storage and workstation unit

Technical data

• Dimensions (W x D): 718 x 835 mm
• Angle adjustment: 0-25°, 6 positions
• Max load: 150 kg
• Material: powder-coated steel
• Colour: RAL 7035 (light grey)
