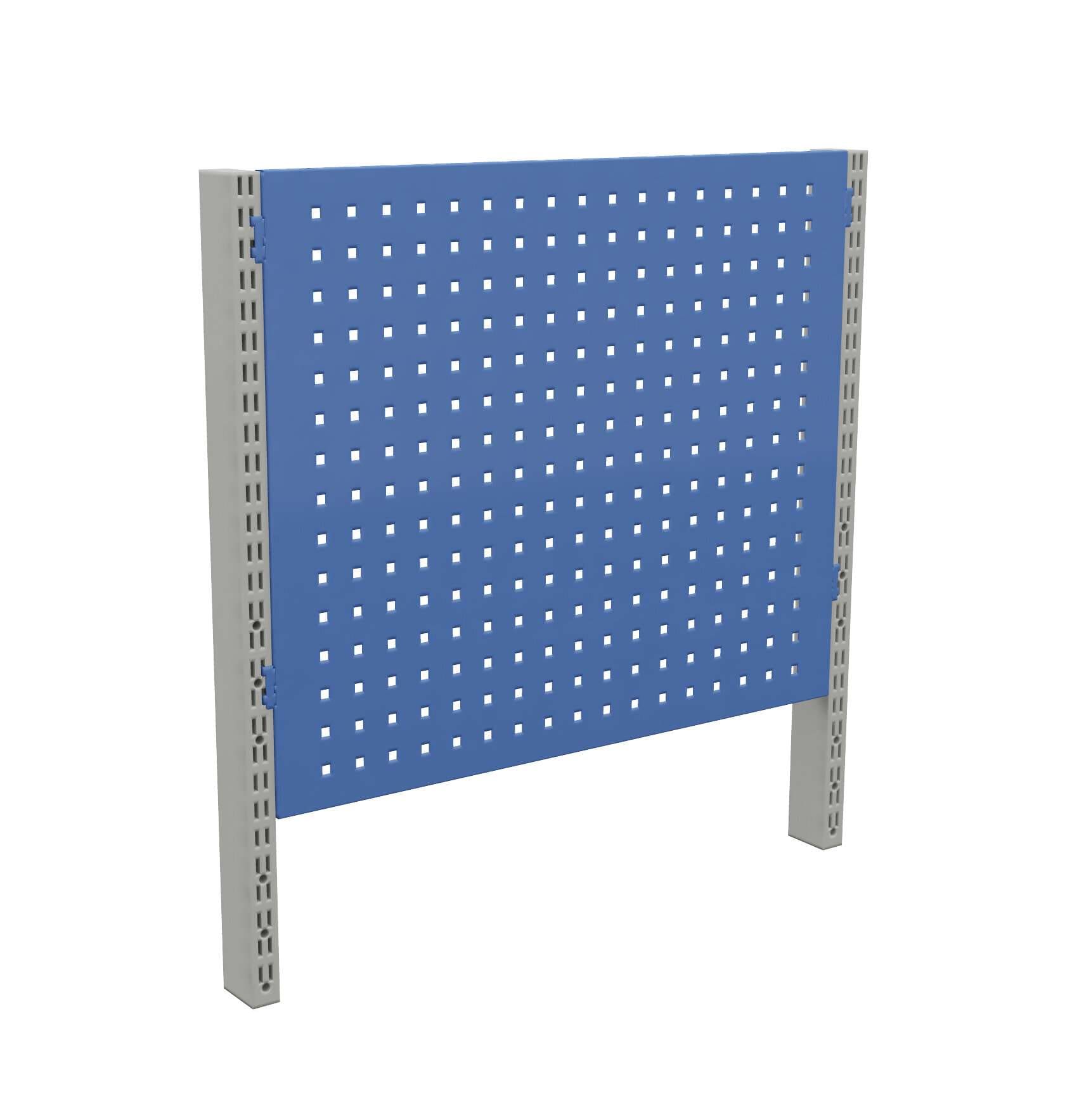

Treston Perforated Back Panel M750/M900

Treston perforated back panel M750 / M900 for organised workstation storage

The Treston perforated back panel M750 / M900 is made for exactly that purpose. It brings tool storage up from the bench surface and into the back area of the workstation, where tools, small parts, labels and other daily-use items can be seen quickly and reached without opening drawers. The panel is designed for Treston workbench and workstation environments. It is suitable for Treston M750 and M900 module sizes and can be used with the compatible Treston furniture listed for this product. The blue perforated steel surface also gives the workstation a more defined rear area. When several benches are placed close to each other, the back panel can work as a visual divider between neighbouring workstations while still giving useful storage space for tools and work equipment.

Perforated panel for tools, accessories and small parts

The main function of the perforated panel is simple: it keeps frequently used items off the worktop and in a clear position. A worktop should be available for assembly, repair, inspection, packing or writing, not covered by loose tools. With the Treston perforated back panel, suitable hooks, bin rails and shelf accessories can be arranged on the panel according to the task. The square hole pattern makes the layout flexible. A tool position can be changed when the process changes, when a new product is added to the workstation, or when a worker finds a more practical reach zone.

9 × 9 mm square perforation with 38 mm pitch

The perforation size is 9 × 9 mm, and the hole spacing is 38 mm from centre to centre. This is an important detail because the value of a perforated back panel depends on the accessories that fit it. The grid is made for the Treston hook, bin rail and shelf system dimensioning used with these panels. The pattern gives enough structure for a tidy tool wall while still allowing positions to be changed when needed.

Powder-coated steel in blue RAL5007

The Treston perforated back panel is made from powder-coated steel in blue RAL5007. Steel gives the panel a stable feel in industrial use, and the powder-coated surface is suitable for normal workshop and production environments. A perforated steel back panel is also easy to understand for new workers and visiting maintenance personnel. Tools are not hidden, and the storage area is immediately visible. For companies that use clear workstation routines, this supports a cleaner and more controlled workplace without making the setup complicated. The panel is a practical accessory, not a separate storage cabinet that takes floor space.

Available M750 and M900 sizes

This product is available in two size options: 750 × 600 mm and 900 × 400 mm. The M750 size is a good choice when a taller storage area is needed for a narrower module. The M900 size gives a wider tool area with a lower height. The best option depends on the workstation frame, the available upright space and the type of tools or accessories being stored.

• 750 × 600 mm option, product code 861512-07
• 900 × 400 mm option, product code 861516-07
• Perforation: 9 × 9 mm square holes
• Hole spacing: 38 mm centre to centre
• Material: powder-coated steel, RAL5007 blue

Compatibility with Treston workstations

The Treston perforated back panel is suitable for several Treston workbench and workstation products. It is intended for use with Concept ergonomic workbenches, TP workbenches, Workshop heavy workbenches, the Treston Multi trolley and the Treston Tower storage and workstation unit. This makes it useful both for fixed benches and for mobile or modular workstation solutions where the tool set must move with the work.
