Workshop Mechanic Workstation 3

Mechanic workbench for heavy components

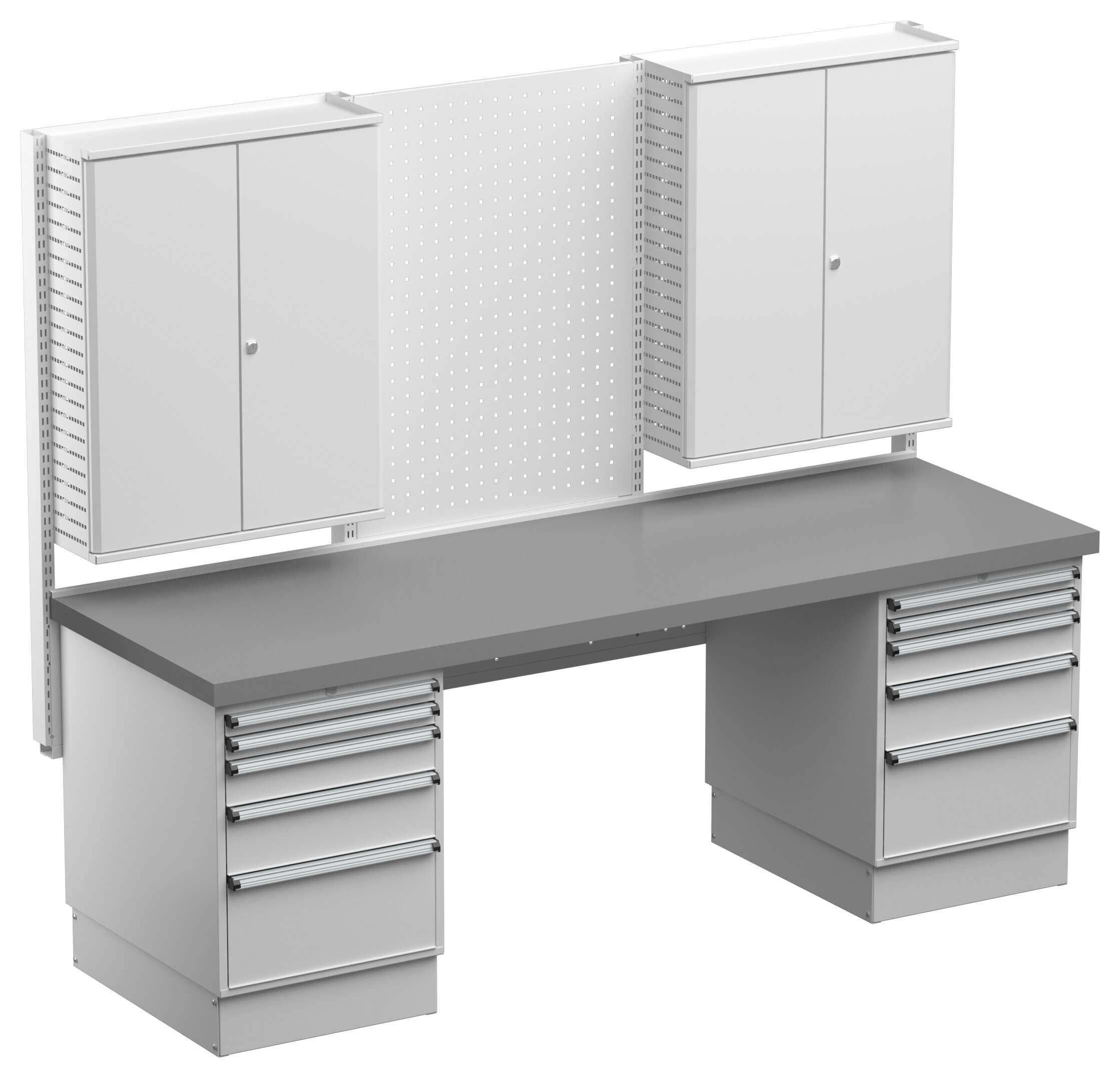

Workshop Mechanic Workstation 3 combines a wide steel worktop, integrated drawer storage and M750 tool panels in one stable package. It is designed for workflows where a single bench is used for dismantling, repair, assembly and testing. The 50 mm thick top is clad with 1.5 mm steel so it tolerates sparks, oils and concentrated loads typical of workshop use. The fixed 850 mm working height supports standing tasks and also suits a tall industrial chair when the job calls for seated work.

Large steel worktop

The 2250 × 750 mm surface gives room for sub‑assemblies, parts trays and test equipment without crowding the operator. Steel cladding over a rigid 50 mm core resists dents and abrasion from fixtures, vices and impact tools. It is easy to wipe clean after contact with cutting fluids, lubricants or sealants.

Two drawer cabinets

Each table end is a Treston 55/66‑4 drawer cabinet, creating a leg‑free kneehole while adding secure storage. Per cabinet you get five drawers:

• 2 × 50 mm
• 1 × 100 mm
• 1 × 150 mm
• 1 × 250 mm

Central locking with two keys keeps micrometers, torque drivers and consumables secure. Drawers run on rollers, the 50 mm drawers open 100 % of their depth, the larger drawers to 85 %, so the contents remain visible and accessible.

Perforated panel and two lockable wall cabinets

Four uprights carry an M750 perforated panel across the full bench width. The 9 × 9 mm hole pattern with a 38 mm pitch accepts Treston hooks, holders, bin rails and lighting arms, making tool layouts fast to configure and easy to standardise. On both sides of the panel sit two M750 perforated‑panel wall cabinets. Their doors close with a key lock to protect sensitive meters, battery tools and documentation from dust and casual access.

Rigid steel frame

A powder‑coated steel frame supports the 50 mm top and ties into the drawer cabinets. Together they produce a rigid assembly rated for a 750 kg uniformly distributed load. Engine blocks, gearboxes and hydraulic power packs can be set directly on the surface without intermediate pallets or stands. The neutral light‑grey finish integrates cleanly into maintenance, production and service areas and makes dirt and fluid leaks easy to spot for quick cleanup.

Technical data

• Worktop: 2250 × 750 mm, 50 mm thick, steel‑clad
• Working height: 850 mm (fixed)
• Total load capacity: 750 kg
• Frame: powder‑coated steel, RAL 7035
• Drawer cabinets: 2 pcs Treston 55/66‑4, each with five drawers (2 × 50, 1 × 100, 1 × 150, 1 × 250 mm), central locking with two keys
• Drawer opening: 50 mm drawers 100 %, others 85 %
• Internal drawer size: 460 × 612 mm, heights 35 / 85 / 135 / 235 mm
• M750 perforated panel: 718 × 612 mm, hole 9 × 9 mm; pitch 38 mm
• M750 wall cabinets: 2 pcs 720 × 255 × 900 mm, key lock
• Uprights: 4 pcs to M750 height
