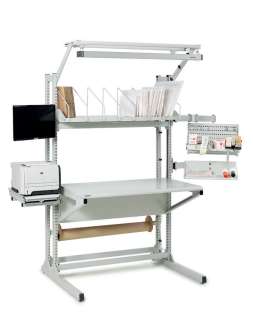

Treston Quick Edge Height Adjustable Workbench

Treston Quick Edge height adjustable workbench — ultra-fast manual adjustment

When tasks change minute by minute, a fixed bench slows the line. The Treston Quick Edge solves that problem with the quickest height adjustment on the market. Operators can move from the lowest to the highest position in under two seconds, then lock in a safe, comfortable working posture.

Manual, safe and maintenance-light

Quick Edge uses a patent‑pending constant‑force spring mechanism, so no power supply is required. Height changes are smooth and controlled and can be done with one hand, the bench top is adjusted without load. For facilities that prefer to avoid electrics at the workstation, the design provides the speed of a power bench with the simplicity of a manual one.

Wide height range and repeatable increments

The bench covers a 570–1300 mm height range, giving genuine sit‑stand flexibility for different users and tasks. Adjustment is made in 25 mm steps, which makes it quick to return to known, repeatable settings on multi‑product lines and during changeovers.

Industrial materials that stand up to daily use

The frame is rigid, powder‑coated steel in light grey RAL 7035. The work surface is an epoxy‑coated aluminium worktop that is easy to wipe clean and made for busy industrial spaces. Static load on the top is 100 kg, while the total frame capacity is 300 kg, so the bench handles tools, jigs, totes and packaging materials with confidence.

Dimensions that fit packing and assembly

The Quick Edge supplied here is the popular M1200 module. The frame module width is 1200 mm and the usable worktop measures 1150 x 700 mm, giving good reach without over‑extension. With upright profiles and accessories fitted, the overall structure height is 1930 mm, leaving plenty of space for shelves, LED task lighting and bin rails above the work surface.

Used as a packing workstation or an adjustable packing table, the Quick Edge gives operators a clear, sturdy surface at the right height for taping, weighing and labelling. It also serves as a flexible packing workbench in goods‑in and returns areas where task variety is high.

Ergonomics

Height adjustment only prevents strain if people actually do it. Because the Quick Edge changes height so quickly and without effort, operators are more likely to move between positions during the shift. That supports neutral wrist and shoulder angles, keeps the work within the power zone and helps maintain focus during precise tasks.

Specification

• Adjustment: manual, constant‑force spring.
• Height range: 570–1300 mm in 25 mm increments.
• Capacities: 100 kg static load on the worktop, 300 kg total frame capacity.
• Module: M1200. Worktop 1150 x 700 mm, overall height 1930 mm.
• Materials & finish: powder‑coated steel frame in light grey RAL 7035, epoxy‑coated aluminium worktop.

Modularity and accessories

Quick Edge is part of a modular workstation family. Start with the core bench, then add what the process demands: upper shelves with divider hoops for cartons, light and balancer rails, monitor and keyboard arms, perforated panels for tool hooks, and roll holders for paper or film. Accessories can be moved and reconfigured as workflows evolve, helping the bench stay productive for years.
