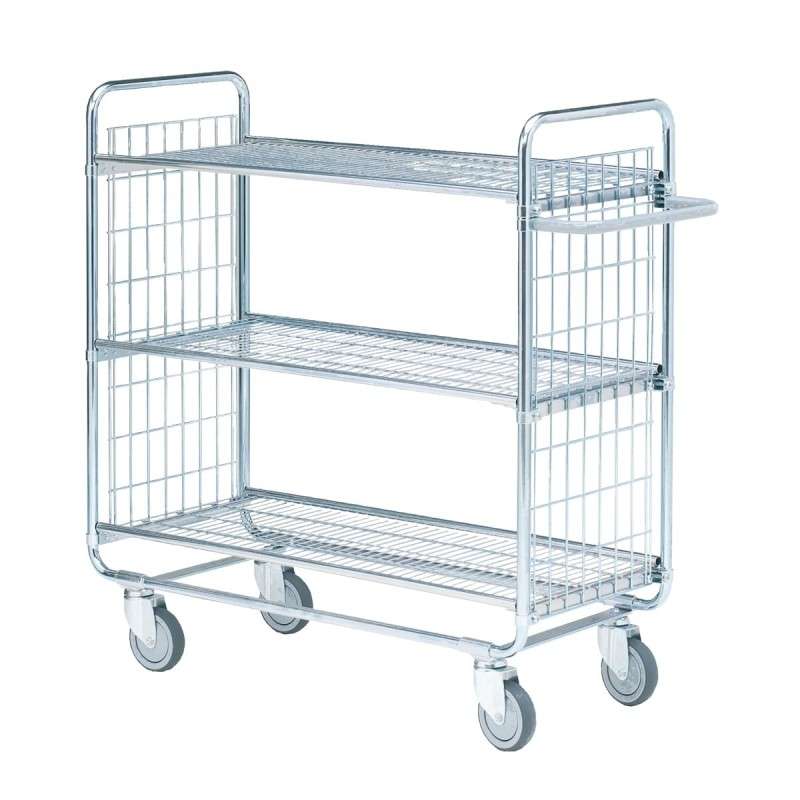

The 100 Series shelf trolley with 3 shelves is built for everyday storage and internal transport in warehouses, production areas and stockrooms. A strong tubular steel frame, mesh end panels and an ergonomic push handle make it easy to move goods while keeping items visible and accessible. The load capacity is 200 kg.
The shelf levels are height-adjustable, allowing the trolley to suit different cartons, components, tools and work materials. In the 3-shelf model, the upper shelf height is 1050 mm and the free space between shelves is 350 mm. The trolley is available with white laminate shelves or galvanised steel mesh shelves, the mesh option is a good choice for dusty environments because dust does not collect on it in the same way as on a solid shelf.
Available shelf sizes are 620, 750, 1000 or 1200 x 425 mm. Overall dimensions range from 800 x 460 x 1120 mm to 1380 x 460 x 1120 mm. Options include other shelf quantities and ESD protection.
"*" indicates required fields
The 100 Series shelf trolley with 3 shelves gives goods a clear place, keeps them at a practical working height and helps the user move several items in one trip. This 3-shelf trolley combines a strong tubular steel frame, mesh end panels, adjustable shelves and an ergonomic push handle. The trolley is suitable for storing and moving cartons, tools, spare parts, components and other handled items in industrial and logistics environments. The total load capacity is 200 kg, making the trolley a solid choice for medium-duty internal transport.
One of the main advantages of the 100 Series shelf trolley is its flexibility. All shelf levels are height-adjustable, so the layout can be adapted to the goods being handled. If the load is low and flat, the shelves can be arranged for efficient use of space. If larger packages, bins or tools need more room, the shelf spacing can be changed to suit the task. In the 3-shelf trolley model, the upper shelf is 1050 mm high. The free space between the shelves is 350 mm when the levels are positioned evenly. This gives the trolley a practical structure for daily picking, storage and transport.
A trolley is only useful if it is easy to move. The 100 Series shelf trolley has an ergonomic push handle designed to support comfortable handling by different users. A good grip and a natural working position reduce unnecessary strain during repeated movement, especially when the trolley is used throughout the day. The handle also improves control in narrow aisles, beside packing tables and around production lines. When the trolley is used for internal transport, the user can steer it smoothly without needing to lift or drag the load.
The frame of the shelf trolley is made from strong tubular steel. This gives the trolley the durability needed for regular use in warehouses, industrial facilities and other working environments where equipment must handle repeated movement. The steel frame supports safe, reliable use and gives the trolley a long service life when used within its rated capacity. The mesh end panels add another practical feature. They help keep the ends of the trolley open and visible, while also giving useful attachment points for suitable accessories. Depending on the work area, the mesh end panel can be used for holders for picking lists or electronic aids.
The 100 Series shelf trolley is available with two shelf material options: white laminate shelves or galvanised steel mesh shelves. Both options are durable and easy to maintain, but they suit slightly different working environments. White laminate shelves offer a solid shelf surface for boxes, tools and loose items. They are a good choice when the goods need a flat support surface and when small items should not fall through the shelf. Galvanised steel mesh shelves are a practical alternative when airflow, visibility and easy cleaning are important. The open mesh surface does not collect dust in the same way as a solid shelf, which makes it a better option for dusty warehouse or production areas.
The shelf trolley is fitted with 125 mm non-marking rubber castors. Non-marking rubber helps the trolley move quietly and reduces the risk of leaving marks on the floor. This is useful in warehouses, workshops, production areas and other premises where both movement and floor protection matter. The castors are bearing-mounted and all of them swivel. This makes the trolley easy to steer, even when turning in tight spaces or positioning it beside a workstation.
The 100 Series shelf trolley is available in several lengths, all with a shelf width of 425 mm and an overall height of 1120 mm.
| Shelf size (L x W) | Overall dimensions (L x W x H) |
|---|---|
| 620 x 425 mm | 800 x 460 x 1120 mm |
| 750 x 425 mm | 930 x 460 x 1120 mm |
| 1000 x 425 mm | 1180 x 460 x 1120 mm |
| 1200 x 425 mm | 1380 x 460 x 1120 mm |
If three levels are not enough for the task, the 100 Series shelf trolley is also available as a 4-shelf model. This can be useful when the handled items are smaller and more separate levels are needed. The product family also offers ESD protection as an option. ESD protection is especially important in electronics-related environments where sensitive components must be protected against electrostatic discharge.
| Thumbnail | SKU | Platform size (mm) | Shelve material | Price | Quantity | |
|---|---|---|---|---|---|---|
| 6170-101 | 620 x 425 | Laminate shelves | €420,42 0 % ALV / kpl | ||
| 6171-101 | 750 x 425 | Laminate shelves | €428,26 0 % ALV / kpl | ||
| 6172-101 | 1000 x 425 | Laminate shelves | €456,68 0 % ALV / kpl | ||
| 6173-101 | 1200 x 425 | Laminate shelves | €479,22 0 % ALV / kpl | ||
| 6175-101 | 750 x 425 | Wire shelves | €526,26 0 % ALV / kpl | ||
| 6176-101 | 1000 x 425 | Wire shelves | €547,82 0 % ALV / kpl | ||
| 6177-101 | 1200 x 425 | Wire shelves | €592,90 0 % ALV / kpl |
