9000 Series Order Picking Trolley with 4 Shelves

9000 Series Order Picking Trolley with 4 Shelves for Flexible Daily Picking

This 4-shelf picking trolley is built for changing warehouse routines, giving you a clear way to move goods, keep product groups separated and adjust the trolley to the load instead of adjusting the load to the trolley. With four shelves, an adjustable handle and three height-adjustable upper levels, the 9000 Series shelf trolley suits internal logistics where the load changes from one task to the next. The overall load capacity is 300 kg and each shelf carries up to 100 kg. Combined with a zinc-plated frame, durable laminate shelves and solid rubber castors, the result is a warehouse picking trolley that stays useful across a wide range of everyday work.

Four shelves that can be arranged around the goods

The main strength of this order picking trolley is flexibility. The upper three shelves can be adjusted as needed, so the trolley is easier to configure for low cartons, taller packs, totes, boxed parts and other goods that do not share the same height. When the shelf spacing works with the load, picking feels more controlled and the available space is used more efficiently.

The lower shelf gives you a stable base level for heavier or bulkier items. Placing the weight lower down is also a sensible way to keep the trolley balanced during movement. Because the layout can be changed, the same picking trolley can serve more than one route or task during the day. That can be useful in stockrooms, warehouses, parts storage and replenishment work where product dimensions vary and a fixed-height shelf trolley quickly becomes limiting.

Durable laminate shelves for repeated use

The shelves are made of laminate, a material choice that suits regular working environments where the trolley is loaded, unloaded and moved many times during the week. The laminate shelves give the trolley a flat, dependable load surface for boxes, crates, parts and packed items.

Each shelf has a load capacity of 100 kg, which gives this order picking trolley solid everyday strength for demanding internal transport. That shelf rating is high enough for many warehouse and industrial loads while still keeping the trolley layout practical and open. If you need to separate goods between shelf levels, stage replenishment stock or build mixed orders on one unit, the four-shelf format gives you room to do it without the trolley becoming awkward to handle.

Zinc-plated frame and open access from the long sides

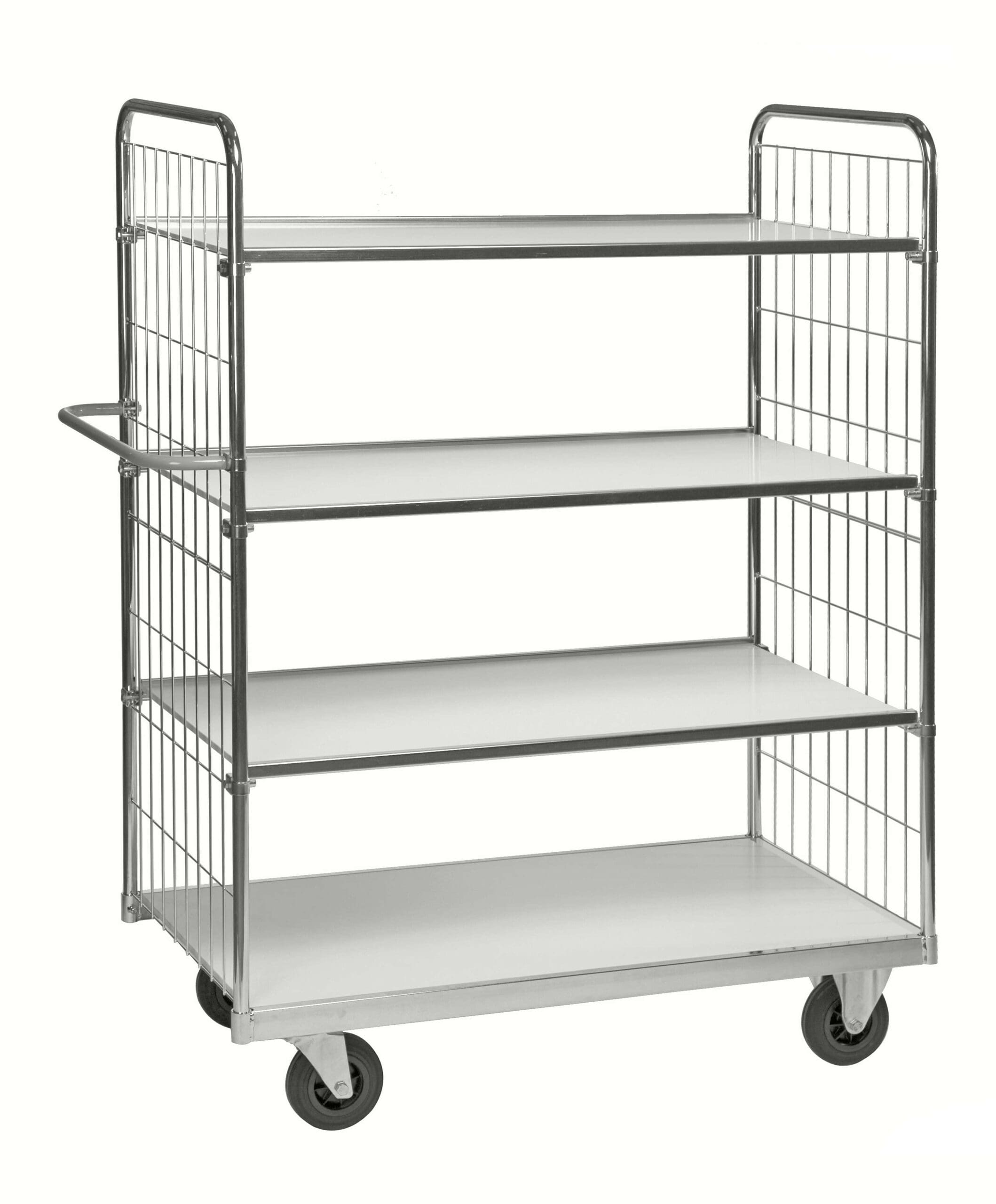

The frame finish is zinc-plated and the colour combination is zinc-plated / white. This gives the trolley a durable, work-focused appearance that fits warehouse, stockroom and industrial surroundings. The product image also shows wire mesh end frames, which help define the load area and support the structure while keeping the long sides open for fast access.

Solid rubber castors for controlled movement

The 9000 Series order picking trolley runs on two fixed and two swivel solid rubber castors with a diameter of 160 mm. This wheel layout gives a useful combination of straight-line stability and manoeuvrability. The fixed castors help the trolley hold a clean line on longer runs, while the swivel castors make it easier to turn into aisles, around corners and into packing or loading positions.

Solid rubber castors are a dependable choice for daily indoor movement where a trolley needs to roll consistently under load. The 160 mm diameter is well suited to normal workplace surfaces and helps the trolley feel predictable in use. A braked version is also available when you want the trolley to stay put more securely in parking positions, while the unbraked version is available for environments where free rolling is preferred.

An adjustable handle supports practical ergonomics

The handle height can be adjusted to suit the task and the user. That sounds like a small detail, but in real picking work it has a direct effect on how natural the trolley feels in use. When the handle is set at a better height, pushing and controlling the load usually feels more straightforward, especially over longer picking routes or during repeated use across the shift.

Four length options for different routes and product sizes

The trolley is available in four lengths: 1190, 1390, 1590 and 1790 mm. Width is 650 mm and height is 1695 mm. These options make it easier to choose the right balance between shelf length, aisle suitability and carrying space. A shorter model can be the right fit where manoeuvrability matters most, while a longer version offers more usable shelf area for larger loads or more picks on the same run.

The fixed width of 650 mm keeps the format manageable while still providing practical shelf depth for many everyday warehouse goods. The 1695 mm height gives room for four levels without turning the trolley into an unnecessarily complicated solution.

Technical data

• Total load capacity: 300 kg
• Load capacity per shelf: 100 kg
• Number of shelves: 4
• Adjustable parts: upper three shelves and handle
• Castors: 2 fixed + 2 swivel solid rubber castors
• Castor diameter: 160 mm
• Brake options: available with or without brakes
• Length options: 1190, 1390, 1590 or 1790 mm
• Width: 650 mm
• Height: 1695 mm
• Finish: zinc-plated / white
