EUR Pallet Pull-Out Unit, 100% Extension, 600 kg

EUR Pallet Pull-Out Unit with 100% Extension and 600 kg Capacity

When you store mixed stock, small parts or assembly components on pallets, the real picking work often happens by hand. The problem is access: a standard pallet location in pallet racking is built for forklift handling, not for reaching in comfortably. With this EUR pallet pull-out unit, you slide the pallet out towards the aisle, pick what you need, and push it back again.

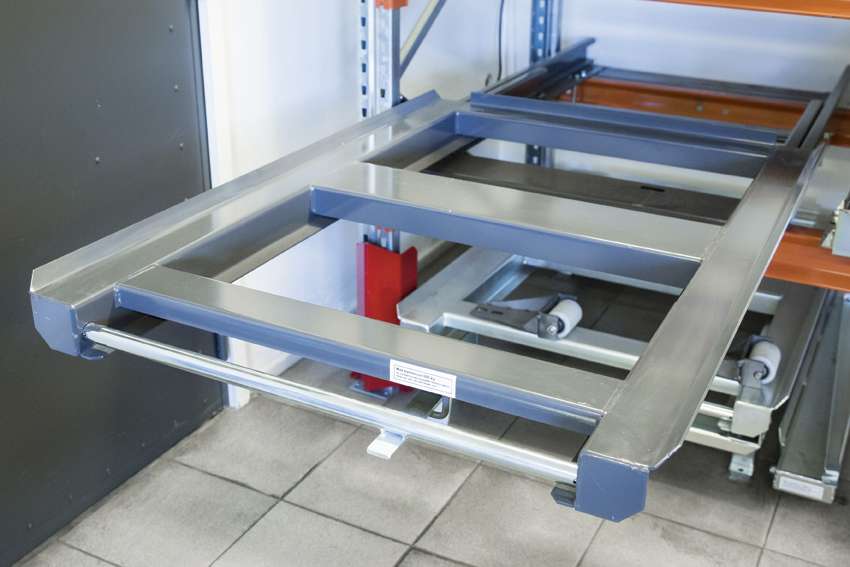

The unit mounts directly to the pallet rack beams and is designed for EUR pallets (Euro pallets). Once installed, loading and picking take place from the front. The platform extends a full 100%, so you can reach the innermost cartons and bins on the pallet without climbing, stretching or leaning deep into the bay. With a 600 kg load rating, it is also suited to heavier palletised goods where you still want controlled, manual access.

Why use a pallet pull-out unit in pallet racking

Full extension is the main benefit. With partial-extension solutions, the back row stays out of reach and the operator still has to lean in. With 100% extension, the entire pallet surface comes out to the aisle, so picking stays consistent even when the pallet is packed tight or the rack level is above waist height.

The long pull-out travel is also useful in crane-assisted workflows. If the pallet location is used for overhead crane handling, pulling the pallet forward creates working space and a clearer lifting zone in front of the rack.

What you gain in daily picking

• Faster access to every item on the pallet. With the pallet fully extracted, the operator can pick from the front edge all the way to the back without reaching into the bay. This is especially noticeable with small parts and mixed pallets where the pick face changes throughout the day.
• Better ergonomics at the rack. Pulling the pallet forward reduces overreaching and makes it easier to keep a steady stance in the aisle.
• Controlled manual handling. The guided platform keeps the pallet moving in a straight line instead of being dragged or shifted by hand. The smooth-running mechanism is designed to keep travel consistent even when the load is close to the 600 kg limit.

Compatibility and retrofitting

Because it mounts on the rack beams, the pallet pull-out unit can be used as a retrofit accessory in many existing pallet racking systems. The mounting method is straightforward: the lower frame is fixed to the beams with four bolts. This makes it practical when you want to convert only selected pallet locations into picking positions, without rebuilding entire rack rows.

As with any pallet racking accessory, always verify that the racking structure and beam capacities are suitable for the intended use. Follow the supplied installation and operating instructions, and keep the load within the stated 600 kg rating.

Specifications

• Intended pallet type: EUR pallet (Euro pallet)
• Maximum pallet outer dimensions: 830 mm (width) x 1200 mm (depth)
• Load capacity: 600 kg
• Extension depth: 1230 mm / 100% pull-out
• Overall unit size: 1230 mm (length) x 880 mm (width) x 135 mm (height)
• Mounting: secure to the pallet rack beams with four bolts
• Function: locks when pushed back into the rack
• Documentation: supplied with a yellow safety information label and installation and operating instructions
• Manufacturing and testing: made and tested in Sweden
