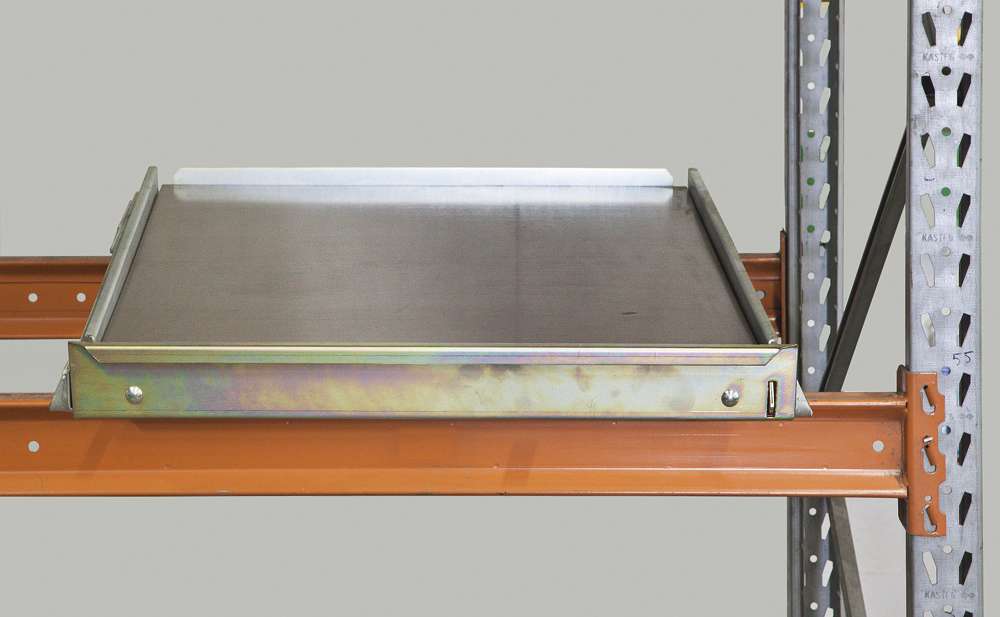

EUR Pallet Pull-Out Unit, Light Duty 300 kg

EUR Pallet Pull-Out Unit, Light Duty

Installed in pallet racking, this pallet pull-out unit allows the pallet to slide out of the bay so items can be handled from the aisle. Think of it as a pull-out pallet shelf for Euro pallets: you keep the pallet in its rack location, but you get access to it without climbing in. That means quicker manual picking, better ergonomics for daily work, and fewer situations where a forklift is needed just to access small goods.

Bring the pallet to the picker

A pull-out shelf is a simple idea: instead of stepping into the rack or stretching over beams, you pull the pallet forward. With a 900 mm pull-out length (75% extension), most of the pallet comes out where it can be reached naturally.

This model is designed for a Euro pallet (EUR) and light loads up to 300 kg. It is a practical choice for lower rack levels where picking is frequent and loads are typically cartons or smaller packages rather than full pallet weights.

Technical data

• Load capacity: 300 kg
• Overall dimensions: 1230 mm (length) x 890 mm (width) x 100 mm (height)
• Extension: 900 mm pull-out length, 75% extension
• Finish and deck: grey painted frame, film-faced plywood base
• Pallet collar compatibility: a standard pallet collar fits directly on the shelf
