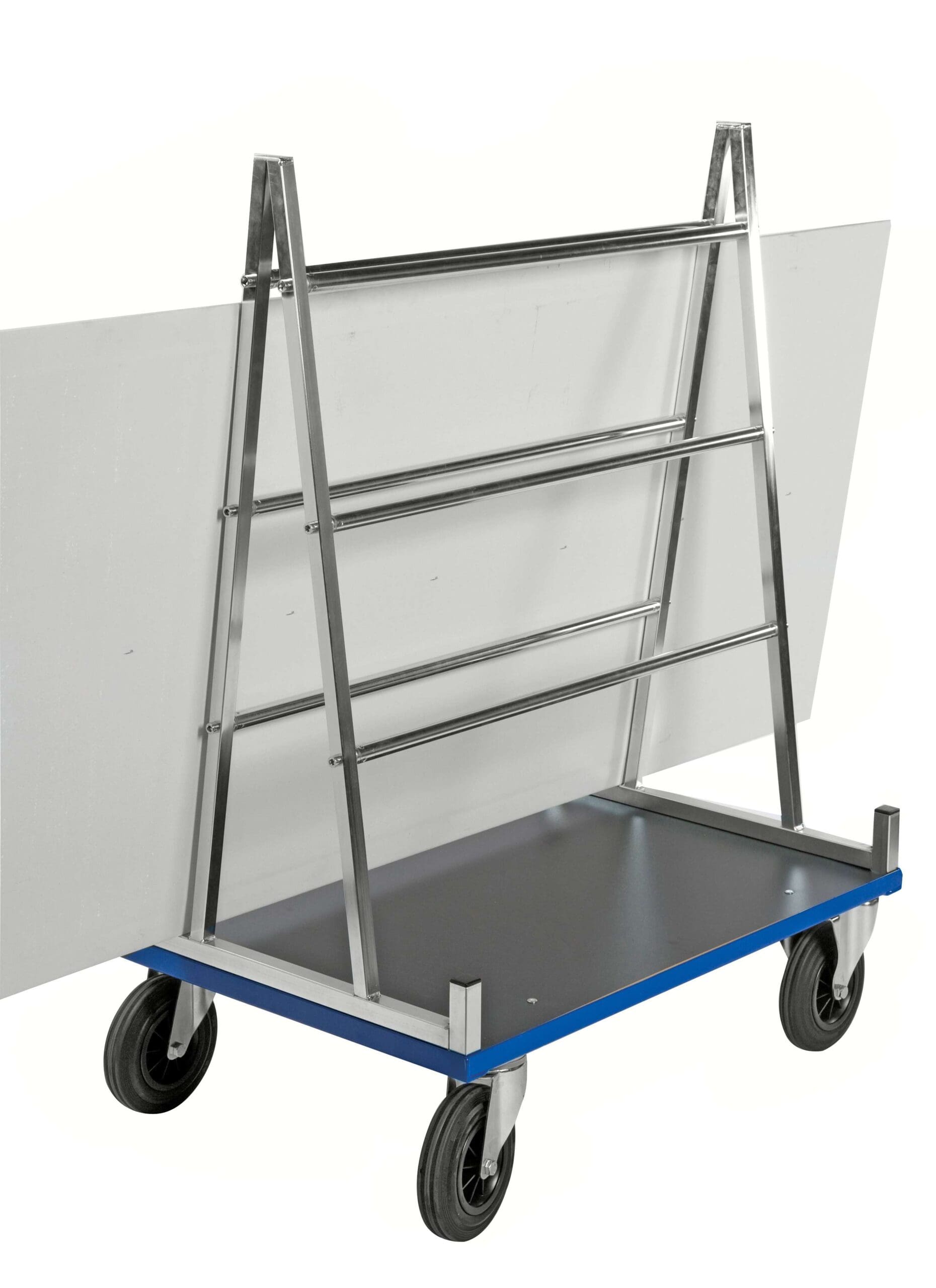

Heavy-Duty A-Frame Board Trolley

Heavy-Duty A-Frame Board & Panel Trolley for Everyday Material Handling

This heavy-duty A-frame board & panel trolley gives boards, rolls and long goods upright support, a durable base and a wheel arrangement that stays predictable when the load gets heavier. Because the loading area is available on both sides, the trolley fits naturally into busy warehouse and workshop routines where materials need to be loaded quickly, moved safely and unloaded without unnecessary lifting or constant repositioning.

Double-Sided Loading Area Keeps Materials Under Control

One of the main strengths of this panel trolley is its double-sided design. The base provides a 140 mm loading width on both sides, allowing materials to stand in a controlled upright position instead of lying flat across valuable floor space. That keeps the load tidier, gives better support during movement and makes it easier to separate different materials when needed.

Built for Demanding Use with an Electro-Galvanised Steel Frame

Durability is a key reason to choose a heavy-duty board trolley over a lighter transport aid. This model combines an electro-galvanised steel frame with a blue painted base frame, giving the trolley the robust structure needed for everyday industrial use. The electro-galvanised finish helps protect the frame in environments where wear, knocks and changing conditions are part of normal work. The painted base adds further protection and makes the trolley easier to spot in a busy working area.

500 kg Load Capacity for Serious Transport Work

This A-frame trolley is made for real material handling, not occasional light-duty moves. With a total load capacity of 500 kg, it is suited to tasks where a standard workshop trolley is not enough. The generous capacity allows heavier loads to be moved in fewer trips, which saves time and reduces repeated manual handling.

Wheel Set Designed for Stability and Manoeuvrability

The trolley is fitted with four wheels, two fixed and two swivel, each with a diameter of 200 mm. This combination gives a good balance between directional stability and easy steering. The fixed wheels help the trolley track steadily when moving forward over longer distances, while the swivel wheels make it easier to guide the load through turns, around obstacles and into tighter spaces.

The 200 mm wheel diameter supports smooth movement across typical warehouse and workshop surfaces and helps the trolley stay composed when the load is substantial. The product is available both with and without brakes, so the wheel configuration can be matched to the working environment.

Compact Footprint, Practical Working Size

With overall dimensions of 1000 x 700 x 1380 mm, the trolley offers a practical balance between capacity and manoeuvrability. The footprint is compact enough for everyday indoor movement, while the height provides the upright support needed for larger materials. The size also supports predictable handling. A well-proportioned base and upright frame make loading feel more controlled, especially with taller materials that need steady support during transport.

Optional Support Bars Available

Optional support bars are available for the trolley, making it easier to adapt the transport setup to the material being handled. Accessories like these can be useful when the load needs extra support or when the trolley is used for varying product sizes as work changes through the day.

Technical data

• Overall size: 1000 x 700 x 1380 mm
• Loading width: 140 mm on both sides
• Load capacity: 500 kg
• Wheels: 2 fixed and 2 swivel, Ø 200 mm
• Available with or without brakes
• Optional support bars available
