Hydraulic Workshop Crane 1000 kg

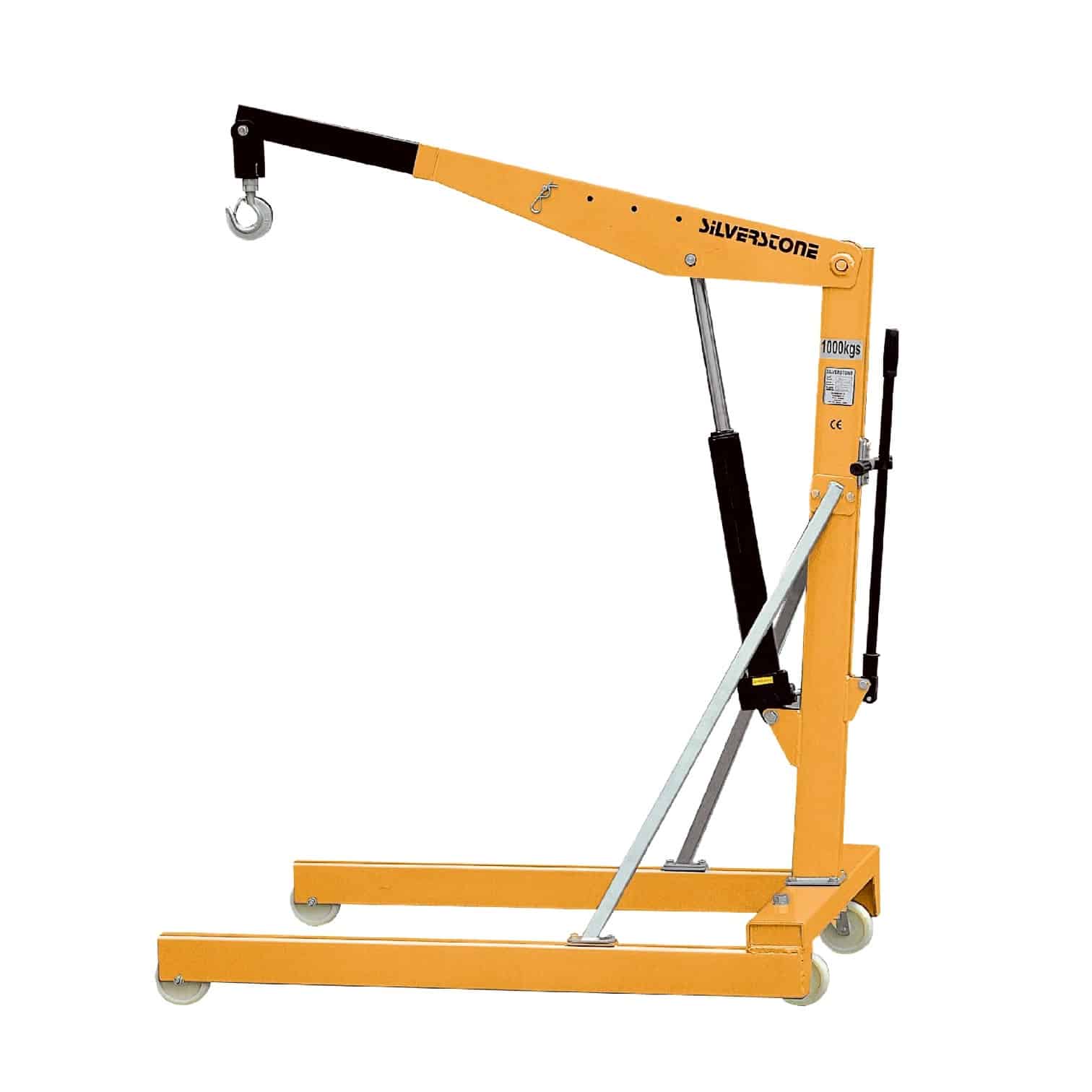

Hydraulic workshop crane 1000 kg – built for heavy, everyday use

This workshop crane is a robust, mobile lifting solution for garages, industrial service areas and production maintenance. It pairs a compact footprint with a reliable hydraulic pump, so technicians can lift, position and lower engines, gearboxes and other heavy components without calling in external lifting gear. Because the base is U‑shaped and sized for Euro pallets (1200 × 800 mm), the crane can straddle a pallet and lift directly from it, speeding up receiving, kitting and repair jobs.

Capacity, reach and control

The hydraulic workshop crane features a four‑position adjustable jib to balance reach against capacity. Jib length is 1060–1360 mm and hook height spans 470–2225 mm, allowing lifts from low pallets up to higher assembly points. To keep you within safe limits, the boom is clearly rated at each hole:

• 1000 kg at the first position
• 800 kg at the second
• 500 kg at the third
• 300 kg at full reach

A 360° swivel hook simplifies aligning loads, and the precision lowering valve helps when positioning parts to mounting studs or dowels. A built‑in overload valve protects the hydraulic system from misuse.

Technical data

• Rated capacity: 1000 kg
• Boom holes 1–4: 1000 / 800 / 500 / 300 kg)
• Jib length: 1060–1360 mm, adjustable jib with 4 positions
• Hook height range: 470–2225 mm
• 360° swivel hook
• Outer dimensions (L × W × H): 1360 × 1000 × 1595 mm
• Overall width: 1000 mm
• Chassis: U‑shaped legs for Euro pallets
• Clearance under legs: 60 mm
• Running gear: hard nylon wheels
• Weight: 98 kg
• Integrated overload valve
• Compliance: CE‑marked
