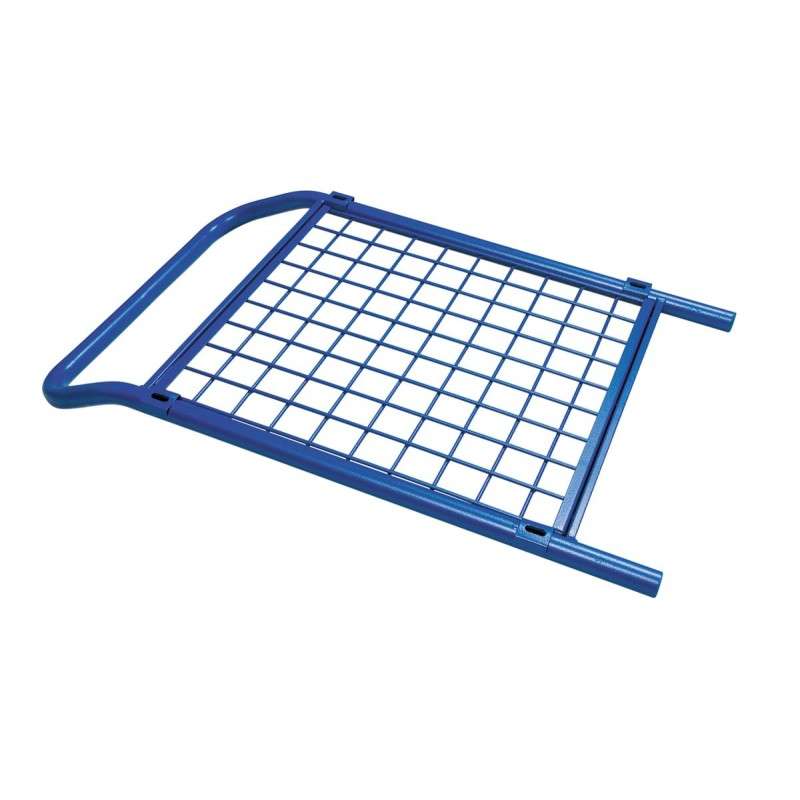

Mesh End Panel for 800 kg Platform Trolley

Mesh End Panel for 800 kg Platform Trolley – better control from the first push

Loads do not always behave the way they did at the loading point. A stack of cartons may look stable for the first few metres and then start to creep as soon as the trolley turns into an aisle, crosses a threshold or stops at packing. This mesh end panel is made for the 800 kg platform trolley and solves that problem in a straightforward way. It gives the trolley a push handle and a steel mesh end section in the same module, so the operator gets a better grip on the move and the load gets more support at the short side.

Made for the 800 kg platform trolley

This accessory is designed for the 800 kg platform trolley 7300-101. It can be fitted to either end of the trolley, which gives you more freedom when planning how the load should be handled and from which side the trolley will be pushed. Because the fit is made for the matching base trolley, the setup stays practical rather than improvised. The end section sits where it should, the trolley keeps its intended footprint, and the accessory works as part of the trolley system instead of as an afterthought.

Push handle and load support in one part

The most useful detail here is that the push handle and the mesh end panel are built into the same part. The handle height with one end panel fitted is 1050 mm, which gives a comfortable level for controlled pushing through warehouse aisles, production areas, dispatch zones and other routes where accurate steering matters. At the same time, the steel mesh helps stop goods from shifting off the end of the deck. The mesh does the job of supporting the load without closing the end fully, so the contents remain easy to see during movement and checking.

Easy to fit, easy to remove

This mesh end panel can be mounted to either end of the platform trolley without tools and removed again when the load is easier to handle on an open deck. That gives the trolley a much wider working range than a fixed configuration.

Build the trolley around the load

This product also makes sense as part of a modular setup. If you only need end support, one mesh end panel may be enough. If the goods need broader containment, matching mesh side panels can be ordered separately for the 800 kg platform trolley. That makes it possible to build a more protected mesh-sided trolley when the task changes, and go back to a more open layout when access is more important than side retention.

Clear sightlines and straightforward handling

Mesh is a sensible choice for this kind of accessory because it supports the load without making the trolley feel blind or closed off. Through the mesh, the operator can still see what is at the end of the deck, whether labels are visible and whether any part of the load is sitting awkwardly before moving off. In busy internal traffic, that quick visual check saves time. The open structure also makes loading and unloading less restrictive than a solid end would be. You get support where it is needed, but the trolley still feels like a platform trolley rather than a cabinet trolley.

Technical data

• Compatible with the 800 kg platform trolley 7300-101
• Integrated push handle and steel mesh end section
• Mounting position: either end of the trolley
• Installation: quick to fit and remove as needed
• End panel size: 765 x 710 mm
• Trolley size with one end panel fitted: 1050 x 710 x 1040 mm
• Matching mesh side panels are ordered separately
