Pallet Trolley with Turntable

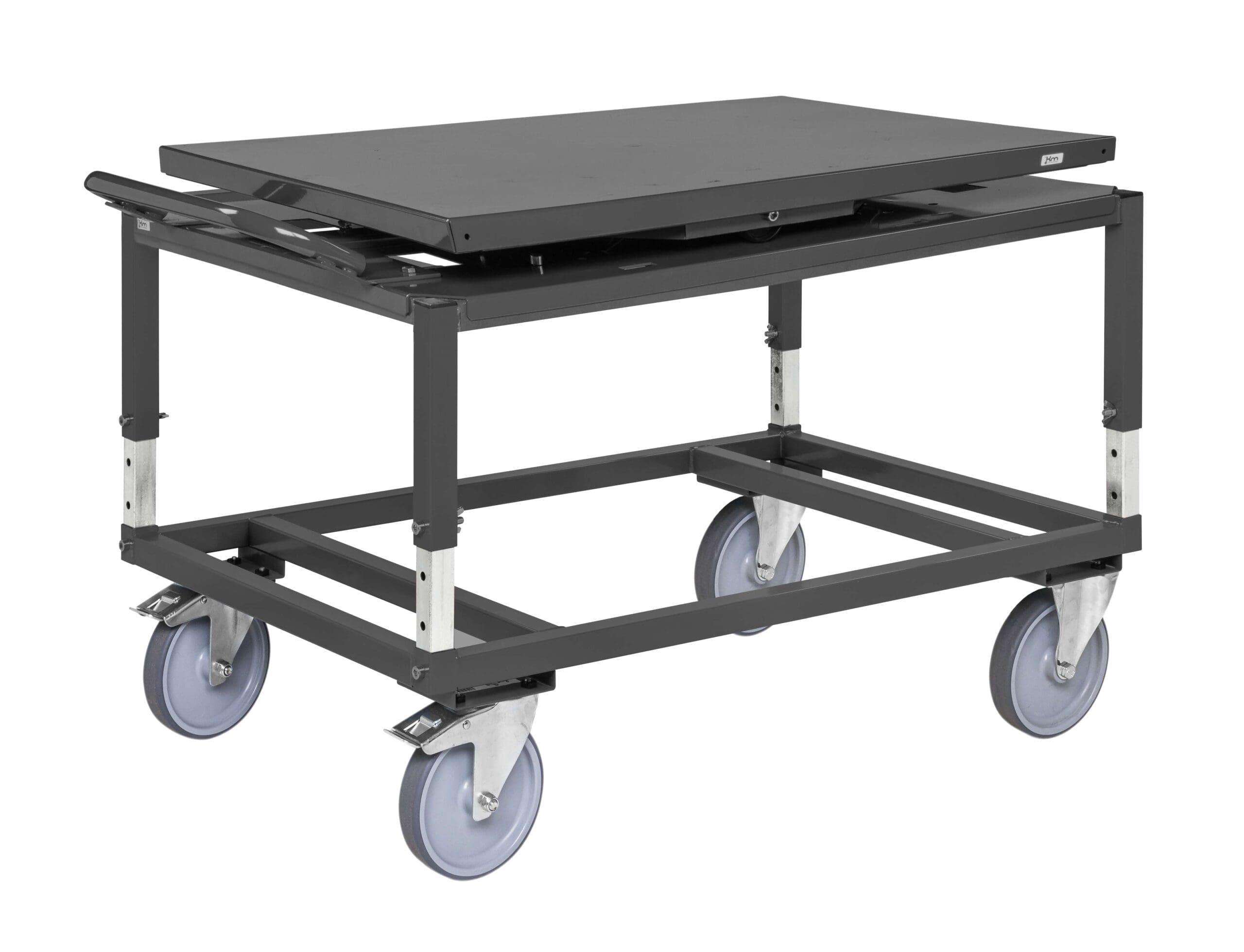

Height-Adjustable Pallet Trolley with Turntable for Faster Pallet Handling

This height-adjustable pallet trolley is built for standard 1200 x 800 mm EUR pallets and has a load capacity of 800 kg. The rotating platform locks in eight positions at 45° intervals, so the next side of the pallet can be brought into reach without moving the whole unit. That keeps the workflow cleaner around the workstation and makes it easier to handle palletised goods in a controlled, repeatable way during everyday work.

Work from one side instead of walking around the load

One of the main benefits of a pallet trolley with turntable is simple: the operator can keep working from one main position. Instead of circling the pallet again and again, the load can be rotated to face the user. That makes a real difference at assembly stations, packing benches and production cells where the same pallet is opened, picked from or replenished throughout the day. It is especially useful when the pallet holds cartons, components, subassemblies or other goods that are handled in sequence. The operator can turn the pallet a section at a time, lock it in position and keep working without breaking the flow of the task.

Height-adjustable frame for better working comfort

The frame is height-adjustable, so the pallet can be set to a more suitable working level for both the user and the task. That matters in workplaces where several people use the same trolley, or where the same pallet moves through more than one stage of work. When the load sits at a better height, there is usually less bending, less reaching across the pallet and less awkward handling around the edges. Good handling practice emphasises keeping the load in front of the body and reducing twisting during lifting and handling, while ergonomic trolleys are widely used to ease strain and create smoother workflows.

Turntable locks in eight positions

The rotating steel platform is lockable in eight positions, with each stop set 45° apart. That gives the user a clear and repeatable way to line the pallet up for the next task. When the correct side is in front, the platform can be locked and work can continue. The turntable is particularly helpful when the load is bulky or when access from one side is all that the workstation allows. Instead of leaning over the pallet or dragging the trolley around, the user can rotate the top section and keep the work area under control.

Designed for EUR pallets

The trolley is made for 1200 x 800 mm EUR pallets, which makes it easy to integrate into warehouses, factories and logistics areas already working to that format. A dedicated EUR pallet trolley is easier to plan into everyday routines than a generic platform because the pallet sits where the operator expects it to sit. That consistency becomes valuable when the trolley is part of a regular process rather than a piece of equipment used only now and then. Because the product is built around the common EUR pallet footprint, it works well in areas where palletised goods are prepared, opened, checked, packed or staged for the next step.

Wheel setup for controlled movement and secure positioning

The trolley has two fixed wheels and two braked swivel castors, all with a 200 mm diameter. This wheel arrangement gives a sensible balance between directional stability and everyday manoeuvrability. The fixed wheels help the trolley track in a controlled direction when moving between work areas, while the swivel castors make it easier to steer the unit into position. Once the trolley is at the workstation, the braked swivel castors help hold it steady. The 200 mm wheel size and industrial layout are chosen for dependable movement and controlled handling in regular warehouse and production use.

Strong steel construction for regular industrial use

The frame is made of steel and finished with a powder-coated surface for demanding day-to-day use. The overall construction is suited to warehouse, production and packing environments where the trolley may be in constant circulation throughout the shift. The turntable version measures 1338 x 810 x 807 mm and weighs 116.9 kg. That solid build supports the 800 kg capacity and gives the trolley a stable feel in use. A version without turntable is also available for operations that do not need load rotation. That model measures 1200 x 800 x 655 mm and weighs 40.5 kg, making it a simpler pallet trolley for straightforward transport and workstation use.

Two versions for different workflows

If the aim is to improve access around the pallet and reduce repeated repositioning, the turntable version is the stronger choice. It suits tasks where the pallet stays at the station and the user needs to work from several sides during the same job. If rotation is not needed and the priority is simply to raise and move a EUR pallet at a practical working height, the version without turntable offers a simpler alternative.

• With turntable: 1338 x 810 x 807 mm, weight 116.9 kg
• Without turntable: 1200 x 800 x 655 mm, weight 40.5 kg
