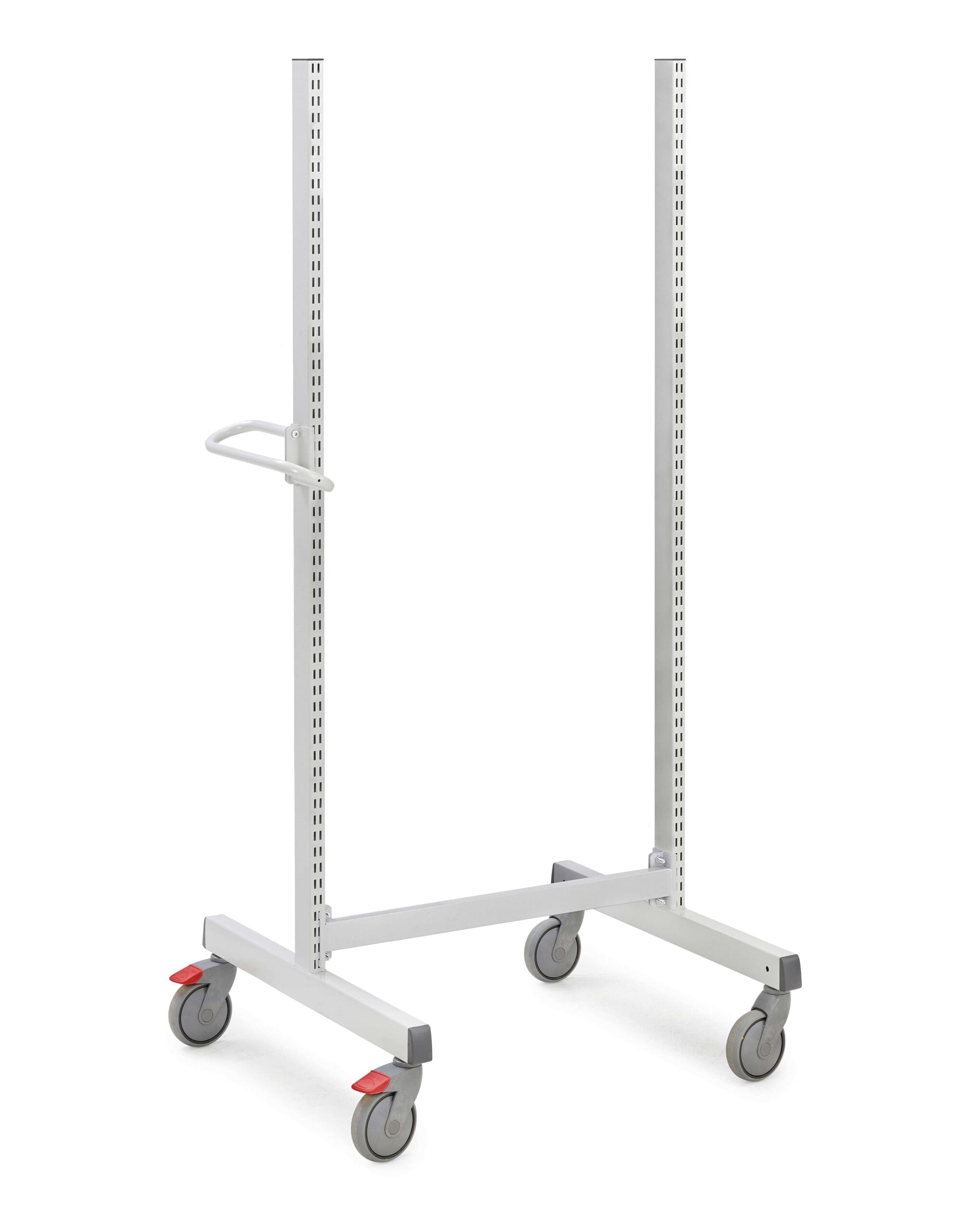

Treston Industrial Multi Trolley Frame, High

Treston Industrial Multi Trolley High Frame is built for changing workflows

Some days a trolley only needs to carry tools. On other days it needs to hold parts, bins, shelves and visual storage close to the job. That is where the Treston Industrial Multi Trolley Frame fits in. It is a modular industrial trolley frame designed for workplaces where storage needs change between tasks, lines and departments. In workshops, warehouses, maintenance areas and production environments, that flexibility matters because fixed storage is rarely enough on its own.

This high-frame version gives you a tall, mobile foundation that can be equipped according to the task. Instead of choosing a fixed layout from the start, you can build the trolley around the way the work is actually done. Treston offers the frame in three module sizes, M500, M750 and M900, so the same product family can be matched to different footprints and accessory needs.

A modular trolley frame that adapts to the job

The strength of the Treston Industrial Multi Trolley High Frame is not only in the steel frame itself, but in the accessory system around it. The frame is designed to work with module-based accessories, which means the chosen trolley size determines which shelves, bin rails, perforated panels, cabinets and other add-ons fit the unit. This modular approach keeps the setup focused and gives you room to change the layout later if the task changes. That is why this product can serve as a storage trolley, workshop trolley, picking trolley, tool trolley or transport trolley depending on how it is equipped.

Compatible with shelves, bins and perforated panels

The high frame works especially well when you want to combine different storage methods in one mobile unit. Shelves create open access for cartons, tools or larger components. Picking bins help keep small parts visible and easier to access. Bin rails let you build a more space-efficient layout and support ergonomic positioning of bins. Perforated panels add vertical storage for tools and work equipment, while perforated panel cabinets create more enclosed storage on the same frame.

Treston’s own material around the Multi trolley highlights shelves, stacking bins, perforated panels and perforated panel cabinets as compatible ways to configure the unit, and the wider accessory range for the product family also includes bin rails, shelves, perforated panels and cabinets for uprights. That makes the frame a practical base when you want one trolley platform that can be set up for tools, consumables, parts or mixed storage.

The frame itself is the base unit. Accessories are selected separately according to the chosen module size and intended use.

Three module sizes

The Treston Industrial Multi Trolley High Frame is available in three module sizes. The high-frame dimensions are:

• 540 x 760 x 1790 mm in M500
• 790 x 760 x 1790 mm in M750
• and 943 x 760 x 1790 mm in M900.

Across the range, the total load capacity remains 300 kg.

Easy movement and reliable positioning

Mobility is one of the main reasons to choose a trolley instead of fixed shelving, and Treston has kept the moving side simple. The frame includes an ergonomic handle and runs on four swivel castors with a diameter of 125 mm. Two of the castors are fitted with brakes, so the unit can be rolled into position and then secured during loading, picking or workstation use.

A strong steel frame for industrial environments

The frame is made of epoxy powder-coated steel in light grey RAL 7035 and has a total load capacity of 300 kg. That gives the unit the strength needed for a wide range of storage and transport tasks while keeping the product focused on flexible everyday industrial use. It is not just a basic push trolley, but it is not a specialist heavy-duty platform truck either. It sits in a useful middle ground: a modular storage trolley with real industrial capacity and a layout that can be reworked as needs change.

ESD-protected versions are available

Not every trolley needs ESD protection, but in electronics production and other environments that handle sensitive components, it can be essential. Treston offers the Multi trolley family in ESD-protected versions, and Treston’s ESD trolley and storage system ranges are built around the same modular idea. That makes it easier to stay within one trolley concept instead of splitting a site into completely different storage systems for standard and ESD work.

Specification

• Module sizes: M500, M750 and M900
• Dimensions: 540/790/943 x 760 x 1790 mm
• Total load capacity: 300 kg
• Frame material: epoxy powder-coated steel
• Colour: light grey RAL 7035
• Mobility: four swivel castors, Ø 125 mm, two with brakes
• Compatible with a wide range of module-based accessories
• ESD-protected versions available
