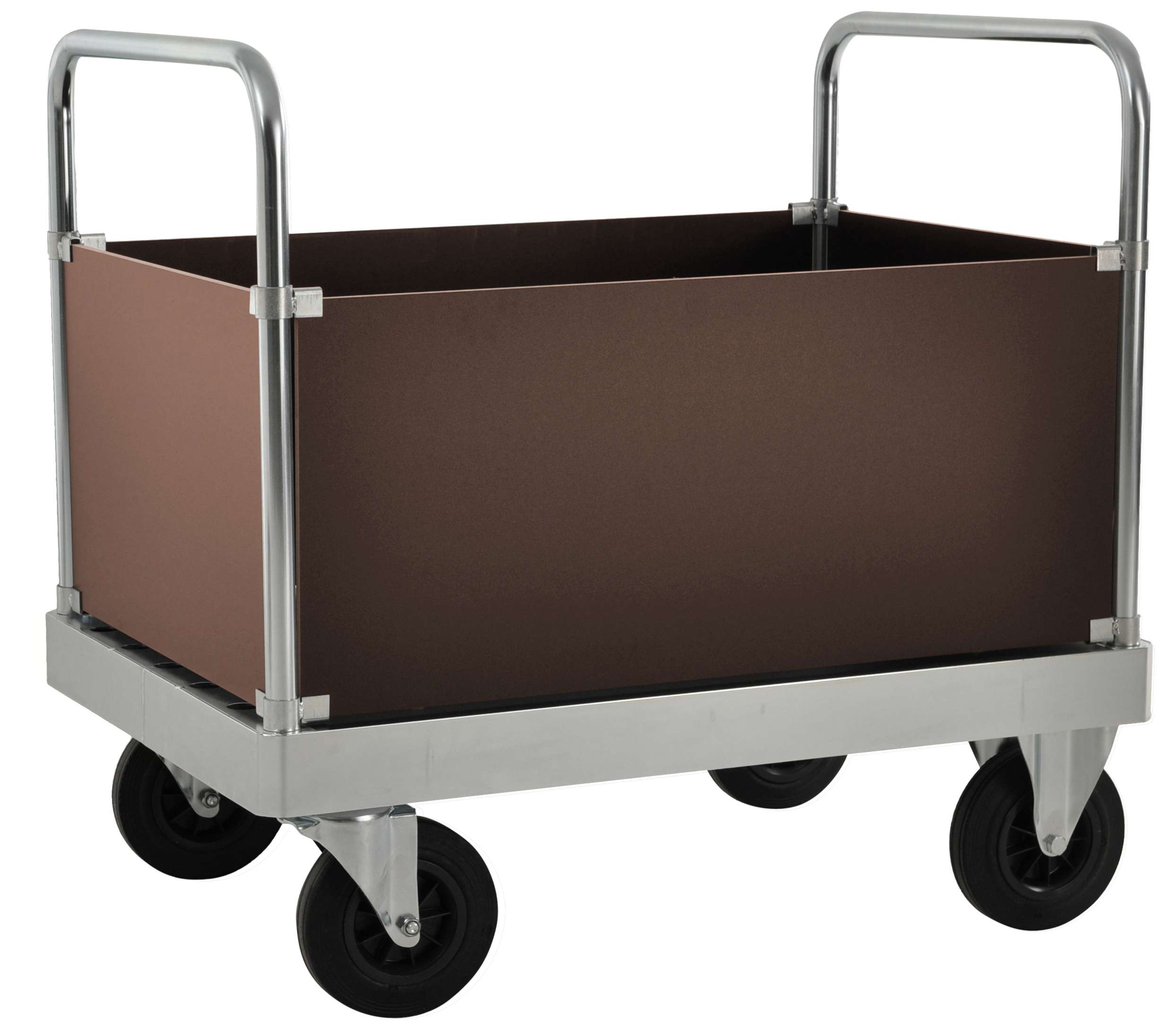

100 Series Platform Trolley, 800 kg

100 Series heavy-duty platform trolley for demanding daily transport

The 100 Series heavy-duty platform trolley is designed for professional use in warehouses, industrial facilities and logistics environments where the trolley must cope with repeated transport tasks and constant daily use. With an 800 kg load capacity, a strong electro-galvanised steel frame and a high-sided load area, this model is built to keep goods moving in a controlled and practical way.

High side panels give the load more support during transport

One of the main differences between this platform trolley and a basic flat deck model is the raised structure around the load area. The trolley is fitted with 400 mm laminate panels that create a high-sided transport space and help keep goods contained during movement. This added support is useful when transporting boxes, cartons, parts, packages and other items that benefit from a clear physical boundary around the deck. They also make loading more controlled when the goods are stacked higher than a low deck trolley would comfortably allow.

Electro-galvanised steel frame and laminate deck for long service life

The frame is made from electro-galvanised steel, giving the trolley a durable surface finish for professional environments. This type of frame construction is a practical choice when the trolley is exposed to daily wear from loading, unloading, contact with goods and constant movement through work areas. The galvanised finish supports long-term durability, while the steel structure provides the strength needed for heavier transport jobs.

The deck is made from laminate board, chosen for durability and everyday practicality. Together, the frame and deck form a solid base for repeated use under load. The laminate surface helps create a tidy, even loading area for boxes, components and packed goods. The push handles are formed from 30 mm steel tube, giving the operator a firm, stable grip when starting, steering and stopping the trolley.

300 mm platform height supports practical loading and unloading

The platform height is 300 mm, which keeps the loading level low enough for practical everyday handling while still allowing the trolley to run on large castors. A sensible load height helps when goods are transferred by hand, moved from shelves, lifted from packing stations or repositioned between work areas. When a heavy-duty platform trolley is used repeatedly, every loading and unloading movement adds up over the course of a shift, so the working height matters. The overall trolley height is 960 mm, which gives the push handles a practical working height for everyday manoeuvring.

Solid rubber castors for stable movement under load

This industrial platform trolley runs on two fixed and two swivel solid rubber castors with a diameter of 200 mm. This is a proven wheel arrangement for warehouse and industrial use because it combines directional stability with the ability to steer accurately around bends, workstations and storage areas. Two fixed castors help the trolley track steadily, while the two swivel castors support controlled turning and easier handling in tighter spaces.

The 200 mm wheel diameter supports smooth rolling and dependable movement when the trolley is carrying a heavier load. The trolley is also specified with needle roller bearings, which help the castors roll more efficiently in demanding use.

Available with or without brakes to suit the work area

The trolley is available in both braked and unbraked versions, making it easier to match the product to the working environment. In some areas, a standard non-braked model is the right choice for constant movement over level floors. In other situations, a braked platform truck offers added control when the trolley is parked during loading or positioned beside workstations where stable placement is important.

Three size options for different transport tasks

The 100 Series model is available in three size options, so the deck area can be matched to the goods being moved and the space available in the working environment. Choosing the right size helps keep both load support and manoeuvrability in balance.

• Overall size 900 x 600 mm, deck size 780 x 480 mm
• Overall size 1000 x 700 mm, deck size 880 x 580 mm
• Overall size 1200 x 800 mm, deck size 1080 x 680 mm
