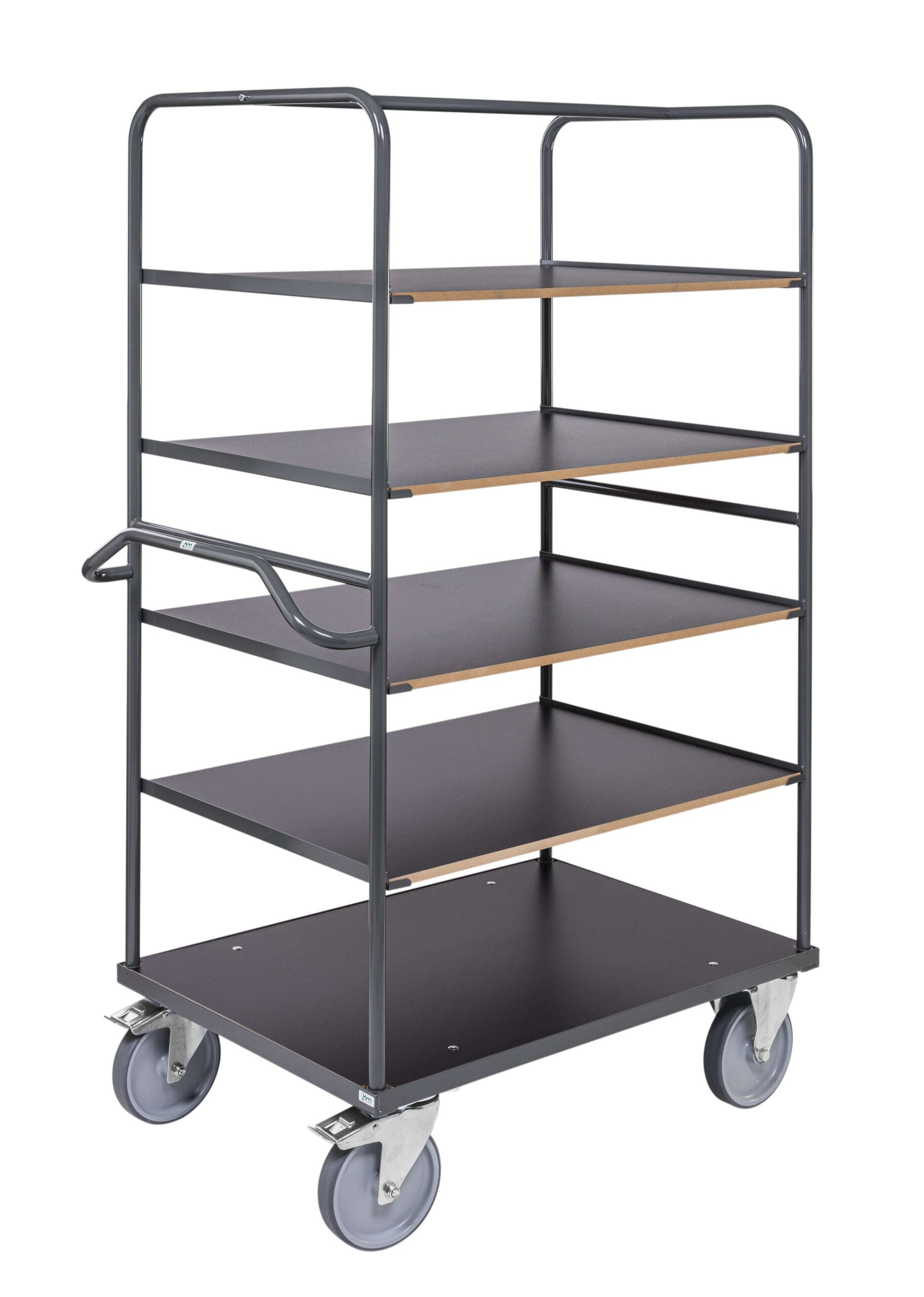

500 Series ERGO Shelf Trolley

500 Series ERGO heavy-duty shelf trolley for efficient internal transport

When cartons, tools, components and supplies need to move through a warehouse or workshop without several separate trips, the 500 Series ERGO heavy-duty shelf trolley gives a practical answer. It combines five shelf levels, a 500 kg total load capacity and a large push handle placed at 1040 mm. The trolley is open, easy to load and built around a dark grey powder-coated steel tube frame. The MDF shelves give each level a flat surface for boxes, bins, spare parts, tools and other goods that are easier to handle when kept separated by level. Instead of loading everything into one deep platform, the user can divide items clearly across the five shelves.

Five shelf levels make better use of vertical space

A standard platform trolley is useful for many jobs, but it can quickly become crowded when small and medium-sized items have to be moved together. This shelf trolley uses the height of the trolley more effectively. With five MDF shelf levels, it gives more usable surface area without needing a much wider footprint. The five-shelf structure also helps keep goods visible. Boxes can be grouped by order, product type, destination or work stage. In picking and packing areas, this can reduce unnecessary handling because the operator does not need to search through one mixed pile of items. In workshops, tools and parts can be carried together while still being kept on separate levels.

Ergonomic push handle

The ERGO model includes a large push handle positioned at 1040 mm from the floor. This is an important detail on a tall trolley, because the handle height affects how natural the trolley feels to steer. A comfortable handle position helps the user guide the trolley with better control, especially on longer transfer routes through warehouse aisles or production areas. The wide handle also gives a clear pushing point. This is useful when the trolley is loaded and when direction changes need to be controlled smoothly. The handle does not turn the trolley into powered equipment, but it does make manual handling more practical during regular transport tasks.

Two fixed and two swivel castors for controlled movement

The trolley uses a four-wheel layout with two fixed and two swivel castors. The fixed castors help maintain direction on straight routes, while the swivel castors make it easier to turn into aisles, loading areas and workstation spaces. The wheel diameter is Ø 200 mm, giving the trolley a robust wheel size for daily warehouse and workshop use. A brake-free model and a braked model are available. The braked option is useful when the trolley needs to stay in position during loading, unloading or temporary storage. The brake-free option is suitable for operations where the trolley is moved continuously and parking control is not the main requirement.

Dark grey powder-coated frame and MDF shelf boards

The frame is dark grey powder-coated steel, specified as RAL 7012 in the supplied product information. This gives the trolley a clean industrial appearance that fits well with warehouse, factory and workshop equipment. The powder-coated surface is practical for a product that is handled frequently and moved through active work areas. The shelves are made from MDF boards. MDF provides a smooth and even support surface for goods that need a more stable base than an open mesh or rail structure. It is suitable for cartons, plastic boxes, packed components, tools, maintenance supplies and other items that benefit from full shelf support. The shelf boards also make the trolley useful as a mobile storage point when goods need to be kept close to the work area for a limited time.

Two size options for different routes and load types

The 500 Series ERGO shelf trolley is available in two model sizes.

• The smaller model has an overall size of 1100 × 700 mm and a shelf board size of 925 × 680 mm.
• The larger model has an overall size of 1300 × 800 mm and a shelf board size of 1125 × 772 mm.

Both versions have a height of 1800 mm.

Technical data

• Total load capacity: 500 kg
• Number of shelf levels: 5
• Shelf material: MDF board
• Frame: powder-coated steel tube frame
• Frame colour: dark grey, RAL 7012
• Push handle height: 1040 mm
• Wheels: 2 fixed and 2 swivel castors
• Wheel diameter: Ø 200 mm
• Brake options: braked and brake-free models available
• Size option 1: 1100 × 700 mm, shelf board 925 × 680 mm
• Size option 2: 1300 × 800 mm, shelf board 1125 × 772 mm
• Height: 1800 mm
