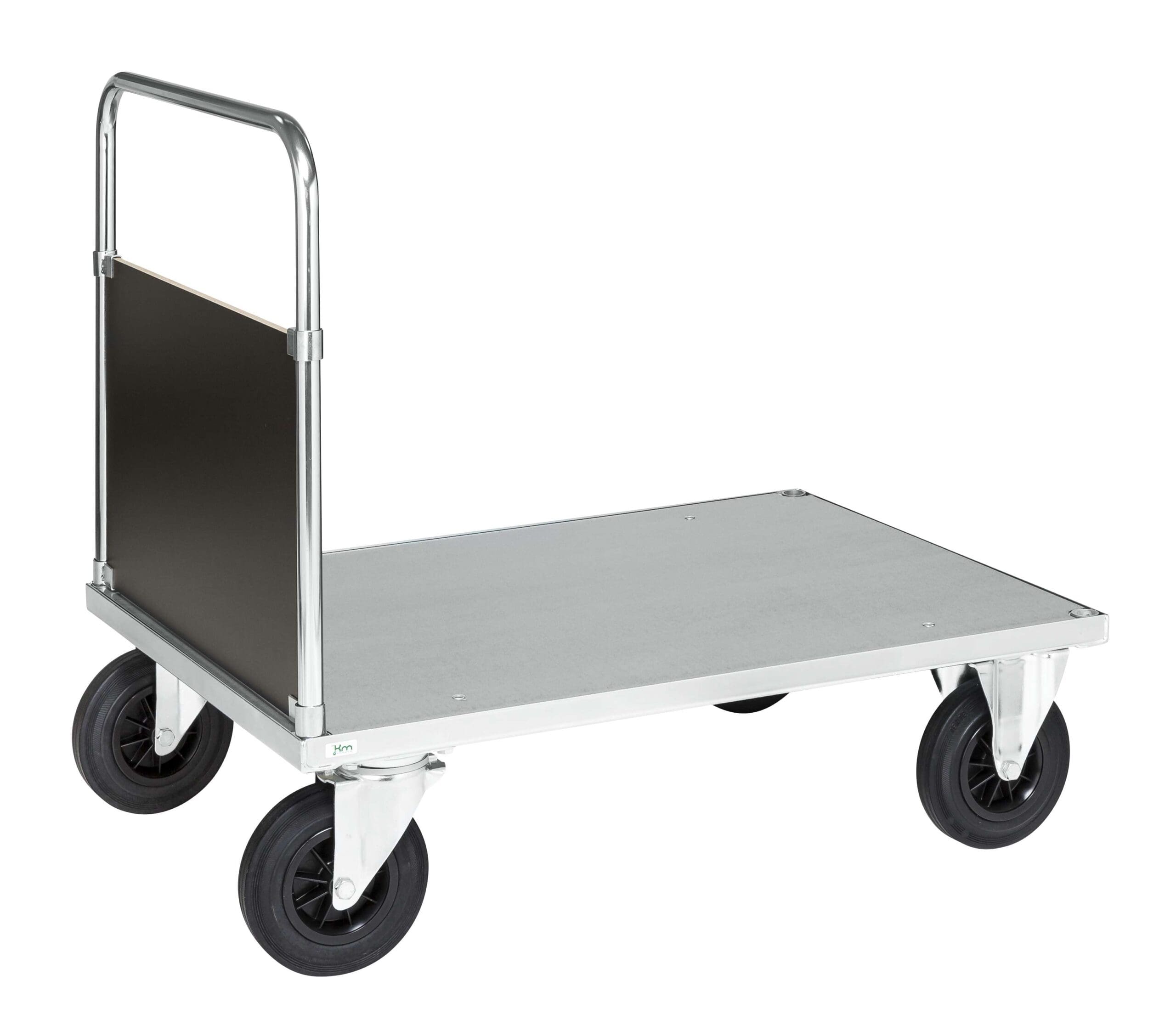

600 Series Platform Trolley with End or Side Panels

600 Series Platform Trolley with End or Side Panels – 500 kg for Warehouse and Industrial Transport

600 Series platform trolley is a straightforward industrial transport trolley built for daily movement of goods when you need a solid deck, steady running and enough side support to keep items in position. It suits warehouse replenishment, internal logistics, production transfers, packing areas and maintenance work where materials move constantly from one point to another. The frame is made from electro-galvanised steel and the load platform uses 2 mm zinc-plated steel sheet, giving the truck the kind of durability that makes sense in hard everyday use.

Electro-galvanised steel construction for demanding use

The steel frame is protected with an electro-galvanised finish that helps resist wear and corrosion in industrial conditions. The 2 mm zinc-plated steel deck adds a hard-wearing load surface under the goods, which matters when the trolley is used with heavy cartons, bins, metal parts or anything with concentrated point loading. The 25 mm tubular steel handle gives a firm grip, feels solid under load and is easy to control even with work gloves on.

Panel options that help keep the load under control

The side and end panels are there for a practical reason: they help keep the load on the truck when the route is not perfectly straight. On warehouse floors, through doorways and around storage ends, goods can shift more than expected. A panelled platform truck gives the operator more confidence because the load has support where it matters. That is useful with stacked cartons, returnable crates, loose components, longer packs and many other everyday loads that do not always sit neatly on a flat deck.

• A one-end model is a good fit when you want an open deck and a clear pushing handle.
• A two-end version adds restraint at both short sides and suits taller or longer items.
• A two-side version supports the load from the long edges and is often the better choice when transporting materials that could roll, lean or shift sideways.

Solid rubber castors for smooth, stable travel

The trolley runs on four Ø 200 mm solid rubber castors. Two are fixed and two are swivel castors, a layout that gives a familiar balance between straight tracking and manoeuvrability. On longer runs, the fixed wheels help the trolley hold its line. In tighter aisles, loading areas and workstation zones, the swivel castors make direction changes easier without making the truck feel loose or unpredictable.

Solid rubber is a sensible choice for general indoor industrial use because it combines durability with a quieter, more controlled ride than harder wheel materials. It also helps absorb some of the shock from joints and minor floor irregularities. Sealed, maintenance-free bearings help the wheels keep rolling smoothly while keeping routine upkeep low.

Brake option

Some operations want a trolley that keeps moving. Others need a trolley that can be held safely in place while goods are loaded, unpacked or staged between work phases. For that reason, the 600 Series is available both without brakes and in a braked version. The braked option adds extra control during loading and unloading and helps prevent unwanted movement when the truck is parked temporarily in a working area.

Loading height and day-to-day usability

The 260 mm platform height keeps the deck low enough for easier loading and unloading, while still giving the wheel size needed for smooth running. This helps when goods are transferred by hand, moved from a low bench, or lifted on and off repeatedly through the day. The trolley does not feel unnecessarily high, and the load can be placed or removed without extra strain compared with taller transport frames.

This is also why the 600 Series works well in mixed-use environments such as warehouses, workshops, service areas and production support zones. It is not a specialised trolley that only suits one task. It is a general-purpose industrial platform truck built around the basics that matter most: a strong deck, useful panel options, dependable wheels and a layout that is easy to work with.

Available models and dimensions

The 600 Series platform trolley with panels is available in the following layouts and sizes:

All versions have a 260 mm platform height, 900 mm handle height, four Ø 200 mm solid rubber castors and a 500 kg load capacity. You can choose either a non-braked or braked version according to the way the truck is used on site.
