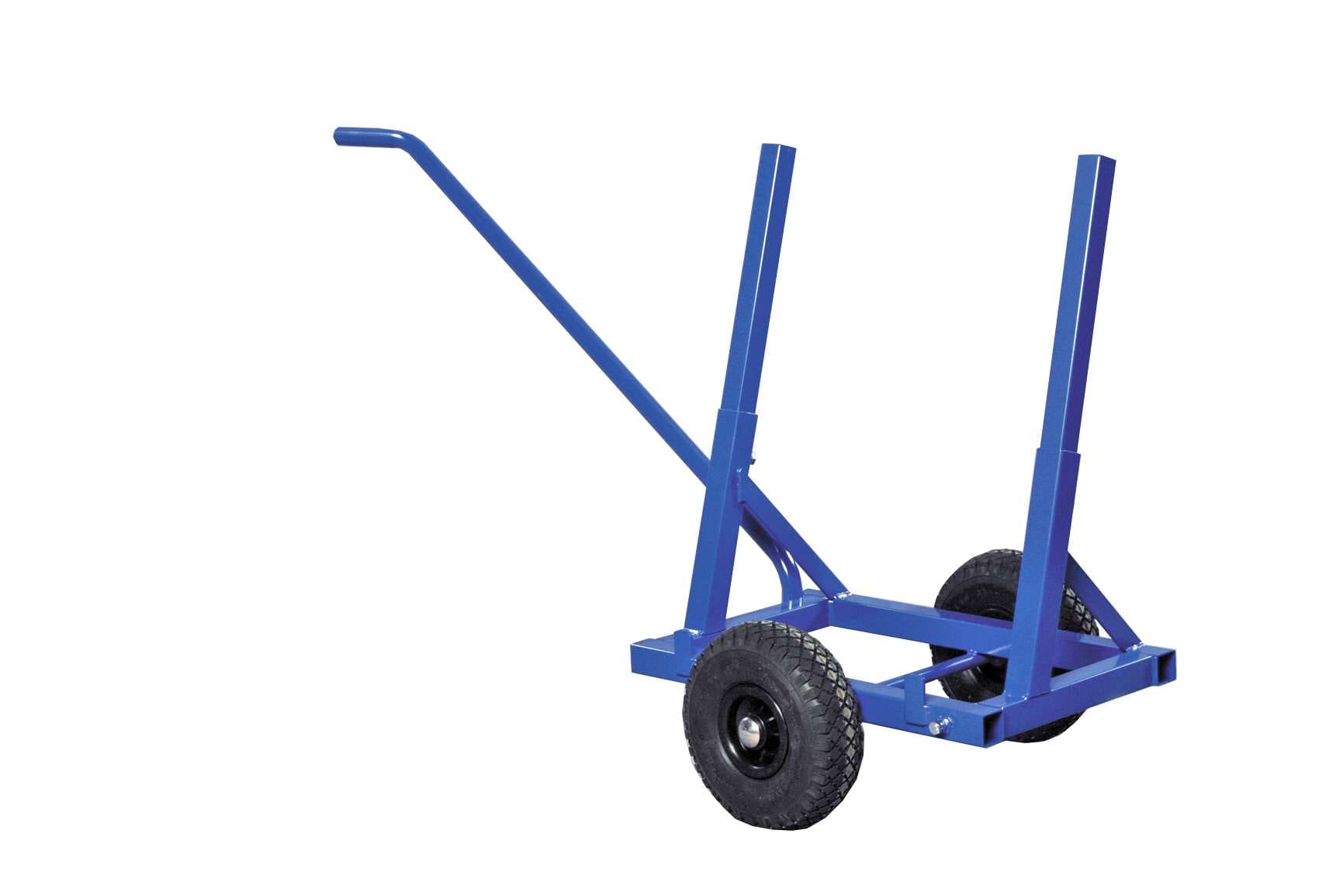

Adjustable Panel Trolley

Adjustable panel trolley for safer sheet material handling

Large boards are awkward long before they become truly heavy. They catch on door frames, wobble in narrow aisles and force people to stop and readjust their grip far too often. This adjustable panel trolley is made for exactly that kind of daily work. It gives sheet materials an upright, controlled position during transport, so moving plasterboard, plywood and sheet metal panels becomes more predictable from the first lift to the final drop-off point.

Height-adjustable support tubes

The most practical feature of this adjustable panel trolley is its variable support height. The upright tubes can be adjusted between 280 and 830 mm, which helps the trolley adapt to different board sizes and material thicknesses. Lower support can suit slimmer loads, while the higher setting gives taller or bulkier panels more contact and more confidence during movement.

Narrow loading width keeps the load compact

The 90 mm loading width is narrow by design, and that is exactly what makes it useful. It keeps sheet materials standing close together and upright rather than letting them spread, lean too far or shift unnecessarily during movement. In practice, that helps the load stay compact and easier to guide through everyday routes.

Long handle for controlled movement

The long, upward-angled handle gives the trolley a more natural pushing position and supports controlled manoeuvring in work areas where you need accuracy as much as strength. That can be useful when the route includes turns, short ramps, uneven ground or narrow access points. The handle also makes it easier to guide the load without having to crowd too close to the panels themselves.

Pneumatic tyres for rougher surfaces

Two Ø260 mm pneumatic tyres with steel-reinforced rims help this board trolley roll more smoothly over floor joints, thresholds, ramps and rougher surfaces. Larger pneumatic wheels are a practical advantage when the route is not perfectly flat. Instead of feeling every seam in the floor, the trolley keeps moving with a steadier rhythm and better control.

That is useful both indoors and outdoors. On indoor concrete floors, the wheels help the trolley travel more smoothly past joints and minor level changes. Outside, they are better suited to gravel, yard surfaces and other less forgiving ground than smaller hard wheels.

Built for regular industrial use

The frame is made from powder-coated steel tube with welded seams. That construction gives the adjustable panel trolley the straightforward strength needed for repetitive handling of heavy, bulky materials. It is a simple design, but that is part of its appeal. With a load capacity of 200 kg, the trolley is well suited to many common handling tasks involving flat materials. It is a practical fit for workplaces that need a compact transport aid for regular use rather than an oversized specialist solution.

Technical data

• Overall dimensions (L x W x H): 1600 x 600 x 800 mm (with handle)
• Adjustable support height: 280–830 mm
• Loading width: 90 mm
• Load capacity: 200 kg
• Wheels: 2 x Ø260 mm pneumatic tyres with steel-reinforced rims
• Frame: powder-coated steel tube with welded seams
