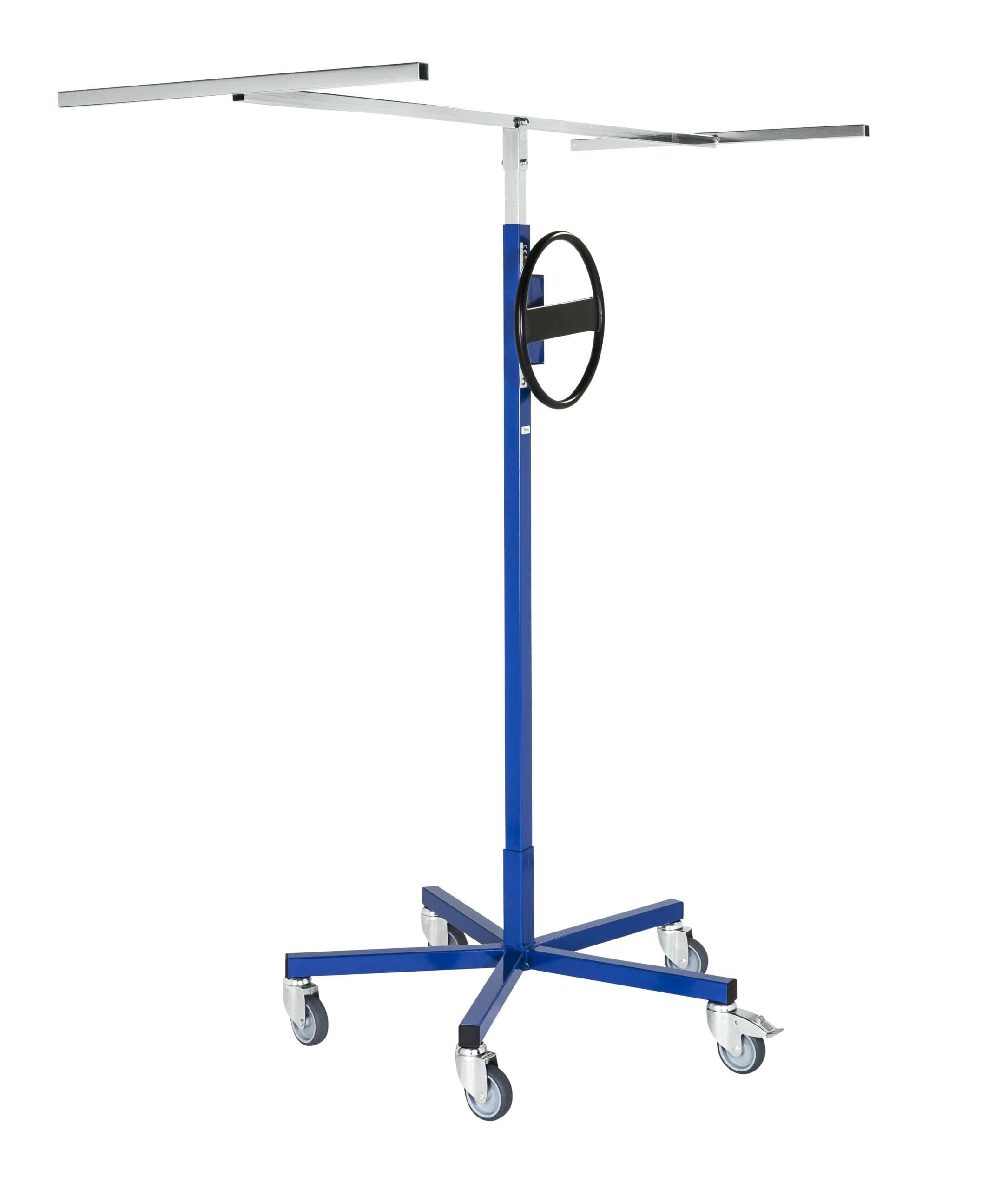

Raise ceiling boards into position with this board lift, designed to make overhead panel installation easier. Its 70 kg load capacity and adjustable height of 1790–3000 mm provide support for lifting suitable plasterboard sheets and ceiling panels to the required working height.
The blue powder-coated steel frame gives the panel lifter a sturdy structure for installation work. Five swivel castors allow the unit to be positioned around the work area, while one braked castor helps keep it in place. The handwheel provides manual height adjustment, so the board can be raised towards the ceiling while supported by the lift.
A separate model with a tilting panel holder is also available.
"*" indicates required fields
This board lift supports the panel as it is raised, helping installers bring suitable boards up to ceiling level with less manual overhead handling. With a rated capacity of 70 kg and height adjustment from 1790 to 3000 mm, it provides a practical lifting aid for plasterboard and ceiling panel installation. The unit combines a blue powder-coated steel frame with a wheeled base. It can be positioned where the installation is taking place, giving the panel its own support during lifting. A handwheel provides manual height adjustment.
The adjustable height range allows this ceiling panel lift to raise boards from 1.79 m up to a maximum of 3 m.
The base is fitted with five swivel castors, allowing the unit to change direction as it is positioned in the work area. The lift can be brought to the next installation point on its castors. Mobility is especially useful where the working position changes along a ceiling. One castor has a brake to help keep the base in place. The combination of swivel castors and a braked castor gives the unit both mobility and a means of reducing unwanted rolling at the working position.
The steel frame is designed for repeated use in panel installation and is finished in blue powder coating. It forms the main structure of the lift, supporting the holder above the mobile base. This sturdy construction suits the repeated positioning and lifting involved in fitting a ceiling.
A version with a tilting panel holder is available alongside this model. The tilting function makes placing boards on the holder easier, particularly when handling heavy or awkward panels.
| Thumbnail | SKU | Model | Price | Quantity | |
|---|---|---|---|---|---|
| KM08300 | With straight plate holder | €882,72 0 % ALV / kpl | ||
|
| KM08350 | With tilting plate holder | €1062,72 0 % ALV / kpl |
