The LTP16 workbench drawer unit is a compact seven-drawer storage module for the Handy Industrial workbench. It fits under the bench top and uses only 520 mm of width, while the 550 mm depth and 625 mm height give practical under-bench storage for tools, fasteners, gauges, spare parts and small work documents. The drawer layout includes 6 x 75 mm drawers and 1 x 100 mm drawer, so frequently used items can be separated by size and kept close to the workstation.
This industrial drawer unit has ball-bearing drawers with 100% opening, central locking and two keys. The powder-coated steel body is supplied in standard RAL 7016 / RAL 7035 colours, and all RAL Classic colours are available by separate order.
Handy Industrial workbenches are available in three lengths:
"*" indicates required fields
Good workstation storage starts with one simple idea: the items used every day should stay where the work is done. The LTP16 workbench drawer unit gives the Handy Industrial workbench seven lockable drawers directly under the worktop. It is built for industrial workstations where hand tools, measuring equipment, fasteners, small spare parts and work papers need a fixed place, close to the operator and away from the work surface. The drawer unit uses only 520 mm of bench width, so it leaves room for the worker’s legs, larger tools or other Handy Industrial modules. At the same time, the 550 mm depth and 625 mm height give a clear and practical storage space below the bench. The unit weighs 41 kg, giving it a solid feel when fitted as part of the workstation.

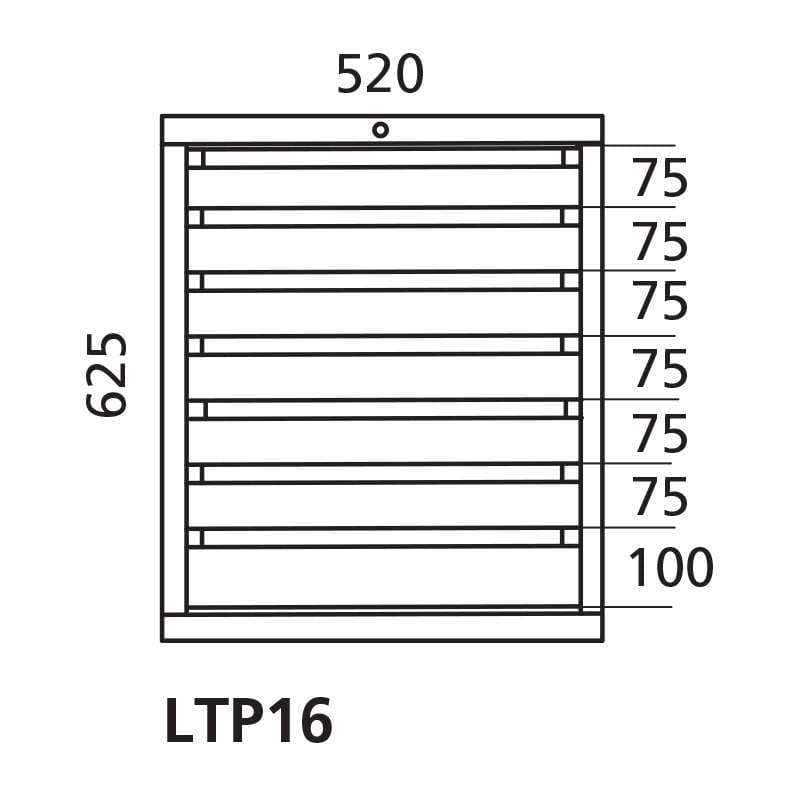

The LTP16 layout is designed for workstations that handle many small and medium-size items. The unit includes 6 x 75 mm drawers and 1 x 100 mm drawer. The six 75 mm drawers suit items that are easily lost in deeper cabinets, such as bits, sockets, drill accessories, small spare parts, labels, measuring tools and production documents. The 100 mm drawer gives more space for larger tools and supplies that are still needed close to the work area.
The drawers run on ball-bearing guides and open fully, so the rear part of each drawer is easy to reach. Full opening is especially helpful when small parts are stored in rows or when heavier hand tools are placed at the back of the drawer. The drawer unit also includes central locking with two keys, so tools and supplies can be secured when the workstation is not in use, during shift changes or when the bench is placed in a shared production area. The drawers are prepared for divider sets, which helps when the contents need to be separated into smaller sections. The drawer unit is a practical under-bench storage solution for keeping the worktop free for the actual task.
The LTP16 drawer unit is made for Handy Industrial workbenches. These industrial workbenches are intended for demanding workshop and production use, and the drawer unit follows the same modular idea. Depending on the workbench length, one, two or three drawer units can be fitted under the bench. This makes it possible to build a compact single-station bench or a wider workstation with more storage capacity.
| Handy Industrial workbench length | Maximum number of drawer units under the worktop |
|---|---|
| 725 mm | 1 drawer unit |
| 1245 mm | 2 drawer units |
| 1765 mm | 3 drawer units |
Because the LTP16 is part of a wider Handy Industrial drawer unit range, it can be combined with other drawer options when the workstation needs a different storage mix. For example, one workbench may need many shallow drawers for small components, while another may need deeper drawers or cabinet-style storage. The Handy Industrial range includes 22 different drawer unit options, so the bench can be selected according to the task instead of forcing every workstation into the same layout.
The body is made from powder-coated steel in the standard colours RAL 7016 / RAL 7035. This finish gives the drawer unit a clean industrial look that suits production areas, workshops, maintenance rooms and warehouse workstations. All RAL Classic colours are also available by separate order, which is useful when workstations need to match company colours, area markings or an existing furniture line. For special colour requirements, ask the sales team before ordering.
