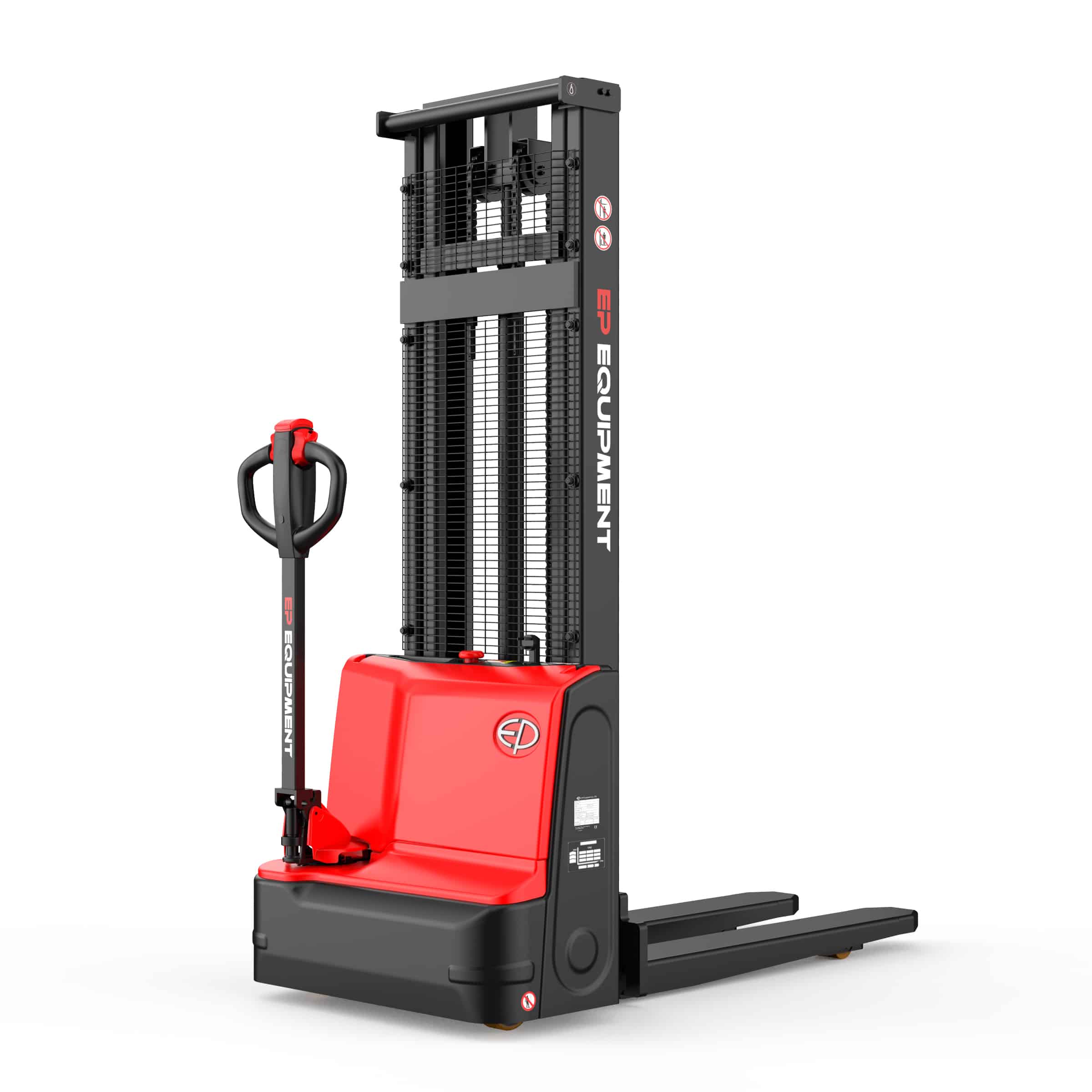

The EP DS3 electric pallet stacker is made for daily pallet lifting, pallet transport and racking work in warehouses, production areas and retail backrooms where space, control and reliability matter. With a 1,500 kg load capacity at a 600 mm load centre, 1,150 mm forks and a 570 mm width over forks, it handles standard pallet tasks with steady electric drive and lift.
The compact DS3 is equipped with a durable I-beam duplex mast and a centre lift cylinder. This structure gives the stacker stable lifting at height and leaves good visibility to the load through the forks. A strong steel mesh mast guard is used instead of plexiglass, which is a practical choice in hard everyday use.
Controlled lift and lowering speeds make the electric stacker truck easy to place accurately in pallet racking, especially when handling valuable or sensitive goods. A 24 V / 40 Ah Li-ion battery, built-in 24 V / 15 A charger, anti-roll-back brake and automatic speed reduction near the upright tiller support safe, efficient work in tight spaces.
Read more
"*" indicates required fields
The EP DS3 electric pallet stacker is a practical choice for warehouses, production areas and retail storage spaces where pallets have to be lifted, moved and placed into racking with control. It is compact enough for tight working areas, yet it offers the capacity and mast options needed for ordinary pallet stacking work. The rated load capacity is 1,500 kg at a 600 mm load centre, which makes the DS3 suitable for many everyday material handling tasks involving standard pallet loads.
This is a pedestrian electric pallet stacker, so the operator controls travel, lifting and lowering from the tiller. It fits work where a full-size forklift may be unnecessary or too large, but manual lifting equipment would slow the process down. In daily use, the EP DS3 supports pallet transport between departments, loading and unloading tasks, replenishment work and placing goods into pallet racking.
The DS3 has an overall length of 1,727 mm and an overall width of 834 mm. With a working aisle width of 2,240 mm when handling a 1,200 mm long load, it can be used in many compact warehouse layouts where every metre of aisle space matters. The 1,150 mm fork length and 570 mm width over forks suit common pallet handling needs, while polyurethane wheels give smooth running on suitable indoor floors.
The EP DS3 electric pallet stacker uses a traditional I-beam duplex mast with the lift cylinder positioned in the centre of the mast. This structure is simple, strong and stable, which is useful when lifting pallets to higher rack levels. A steel mesh mast guard is fitted in front of the mast instead of a plexiglass panel. This is a sensible detail for demanding warehouse use, because steel mesh is robust, visible and less vulnerable to the kind of knocks and scratches that can happen around pallets, racks and loading areas. It protects the operator while still keeping the load area easy to see.
The lifting and lowering speeds of the DS3 are deliberately calm. This makes the truck easier to control when the operator is placing goods into racking or lowering a pallet onto the floor. The lift speed is 0.085 m/s with load and 0.13 m/s without load. The lowering speed is 0.105 m/s with load and 0.085 m/s without load. These values support steady pallet handling, especially in work where accuracy and safety are more important than maximum speed.
| Lift height | Lowered mast height | Maximum mast height |
| 3,318 mm Duplex | 2,217 mm | 3,832 mm |
| 3,918 mm Duplex | 2,517 mm | 4,432 mm |
| Load capacity | 1,500 kg at 600 mm load centre |
| Wheel material | Polyurethane |
| Load wheels | Single fork wheels |
| Working aisle width | 2,240 mm with a 1,200 mm long load |
| Fork length | 1,150 mm |
| Width over forks | 570 mm |
| Overall length | 1,727 mm |
| Overall width | 834 mm |
| Weight with battery | 530 kg |
| Ground clearance at centre of wheelbase | 13 mm |
| Drive motor | 0.75 kW DC |
| Lift motor | 2.2 kW DC |
| Travel speed with / without load | 4 / 4.5 km/h |
The EP DS3 electric pallet stacker is equipped with a 24 V / 40 Ah lithium-ion battery and a built-in 24 V / 15 A charger. The integrated charger keeps charging straightforward because the charger stays with the machine. A battery discharge indicator helps the operator follow the remaining charge during the working day.
For help with warehouse planning, contact our expert sales team at myynti@thtt.fi. We serve on weekdays from 8:00 to 16:00 by phone at +358 2 431 0400 and through the webshop chat.
| Thumbnail | SKU | Lifting height mm | Price | Quantity | |
|---|---|---|---|---|---|
| DS3-3300-LI-ION | 3300 | €3390,00 0 % ALV | ||
|
| DS3-3900-LI-ION | 3900 | €3590,00 0 % ALV |
