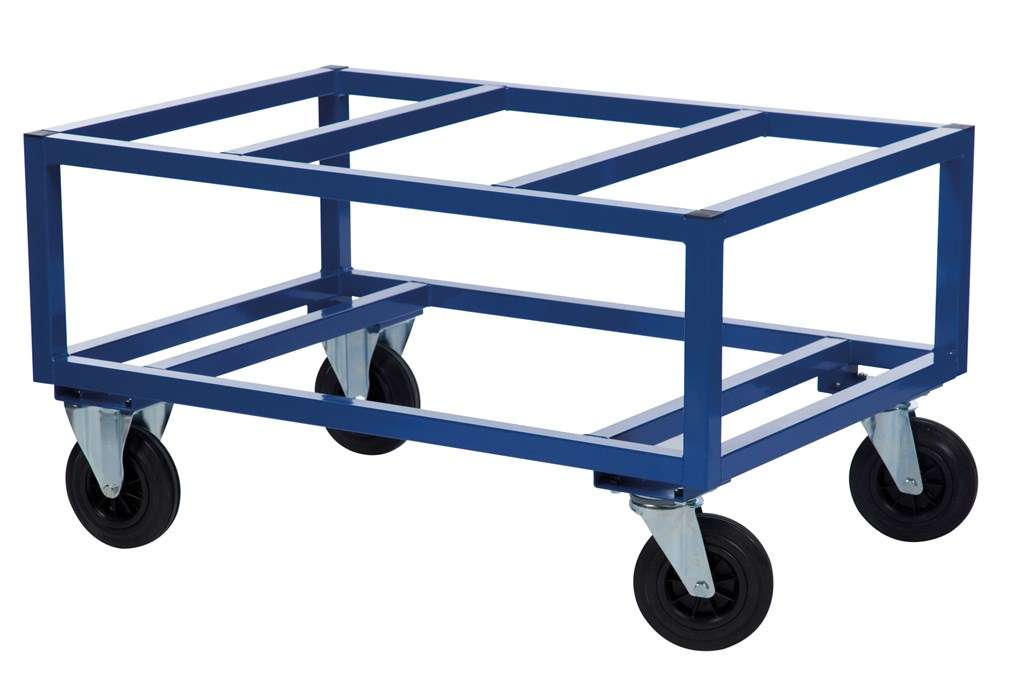

Move a loaded Euro pallet without repeatedly handling materials at floor level. This fixed-height Euro pallet trolley supports a standard 1200 x 800 mm EUR pallet on a rigid steel frame, keeping palletised goods mobile and easier to reach during assembly work and internal transport.
With an 800 kg load capacity, the pallet trolley is suitable for heavy components, spare parts and other palletised loads in factories, warehouses and workshops. The all-welded frame has a fixed height of 650 mm and a blue powder-coated finish. The setup stays consistent wherever the same pallet handling height is needed day after day.
Four bearing-mounted 200 x 50 mm solid rubber castors carry the load. Two swivel castors make the Euro pallet trolley easier to guide into position, while two fixed wheels provide directional stability during straight travel. The trolley weighs 38 kg. Its castors are supplied loose for fitting after delivery.
"*" indicates required fields
This fixed-height Euro pallet trolley makes a standard pallet easier to move and keeps its contents higher than they would be on the floor. It is designed for a 1200 x 800 mm EUR pallet and has a load capacity of 800 kg. The rigid, all-welded steel frame suits daily material handling in assembly areas, warehouses and workshops.
On an assembly line, a full pallet of components may need to follow the work rather than remain in one storage position. This pallet trolley turns that pallet into a mobile supply unit. Materials can be brought beside the task and moved on again when the production stage changes. The same approach works for spare parts in a maintenance area or palletised goods waiting for the next warehouse stage.
A pallet placed directly on the floor requires the user to reach down for every carton, component or parts box. Raising the pallet on a 650 mm frame brings the load closer to the person doing the work. The exact access height depends on the pallet and the height of the goods, but the raised position can reduce low-level reaching during repeated picking, assembly or maintenance tasks.
The Euro pallet trolley can also serve as a mobile pallet workstation when materials must stay beside the job. Instead of unloading the entire pallet onto a separate bench, suitable items can remain on the pallet and move together. This keeps the material flow simple and reduces unnecessary transfers between a floor position, a transport aid and a work area.
The pallet trolley runs on four bearing-mounted solid rubber castors measuring 200 x 50 mm. Their large diameter helps the trolley roll under a heavy load on suitable industrial floors. Because the tread is solid rubber, there is no tyre pressure to check during regular indoor use.
Two of the wheels swivel and two remain fixed. The swivel castors allow the operator to change direction and guide the trolley into its working position. The fixed wheels help it track in a more controlled line when moving forwards. This combination provides a useful balance between manoeuvrability and directional stability, particularly when the loaded trolley moves along established routes between workstations.
The blue frame is made from welded steel and finished with powder coating. Its rigid construction supports the pallet without a height-adjustment mechanism. The trolley itself weighs 38 kg; the castors provide mobility without changing the fixed frame height.
