Handy Industrial Workbench Drawer Unit 8

Handy Industrial Workbench Drawer Unit 8 – deep under-bench storage for tools and parts

Handy Industrial Workbench Drawer Unit 8 is a three-drawer storage unit for the Handy Industrial workbench. It is made for workplaces where tools, spare parts and daily supplies need to stay close to the operator, but the worktop must remain clear for the actual job.

This model is a good choice when the workstation needs higher drawer space rather than many shallow compartments. Drawer Unit 8 includes three pull-out drawers with drawer heights of 150 mm, 200 mm and 200 mm. The layout suits larger hand tools, measuring tools, fixtures, spare parts, maintenance accessories and other workshop supplies that are too bulky for low drawers. The two 200 mm drawers give useful height for items that need more clearance, while the 150 mm drawer keeps frequently used tools visible and organised.

Designed for the Handy Industrial workbench frame

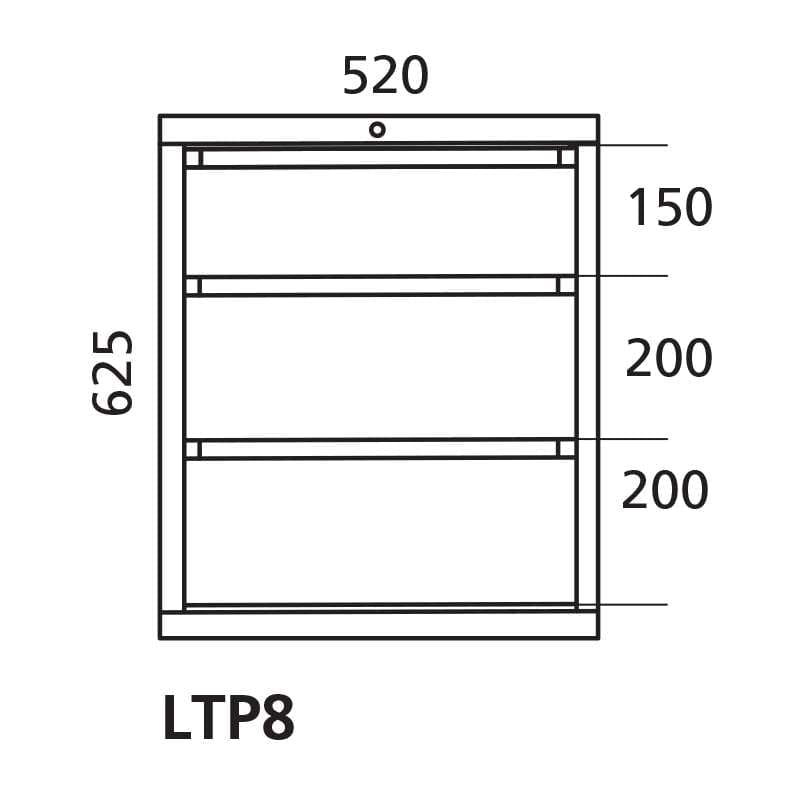

The unit is built for the Handy Industrial workbench, a robust bench intended for industrial use. The drawer unit fits under the worktop inside the bench structure, so it does not require a separate cabinet standing next to the workstation. This keeps the working area compact and helps the operator keep tools, parts and consumables within arm’s reach. The external dimensions are 520 mm wide, 550 mm deep and 625 mm high. The weight is 29 kg, which gives the unit a solid feel in demanding use.

Because the workbench drawer unit is positioned under the worktop, it supports a cleaner and more efficient workflow. Items that are used often can be placed in the top drawer, while heavier or less frequently used items can be stored lower down.

Three drawer heights for clear tool storage

The main strength of Drawer Unit 8 is the combination of one 150 mm drawer and two 200 mm drawers. Many workstations need more than small-part storage. Maintenance work may involve larger wrenches, pullers, service parts, protective equipment or boxed accessories. Assembly work may require fixtures, jigs, gauges and fastening supplies. The deeper drawers help keep these items together at the bench instead of spreading them across shelves, trolleys or nearby cabinets.

The drawers are specified as full-extension drawers. In daily use, full extension is especially useful because the contents at the back of the drawer can be reached without emptying the front first. This is a small detail, but it has a clear effect when the same drawer is opened many times a day. The operator can see the contents better, place tools in a logical order and use the full depth of the drawer more effectively.

Scalable under-bench storage for different bench lengths

The Handy Industrial workbench is available with three worktop lengths, and the number of drawer units depends on the selected length.

• A 725 mm long worktop can take one drawer unit underneath.
• A 1245 mm long worktop can take two drawer units underneath.
• A 1765 mm long worktop can take three drawer units underneath.

The same product family includes 22 different drawer unit options. That gives flexibility when planning the bench layout.

Colour options for existing workplace layouts

The standard colour combination is RAL 7016 / RAL 7035. These shades are common in industrial furniture and fit well with many workshop, warehouse and production interiors. If the workplace uses a specific colour system, other colours from the RAL Classic colour chart are available by separate order.

Technical data
