High-Sided Platform Trolley

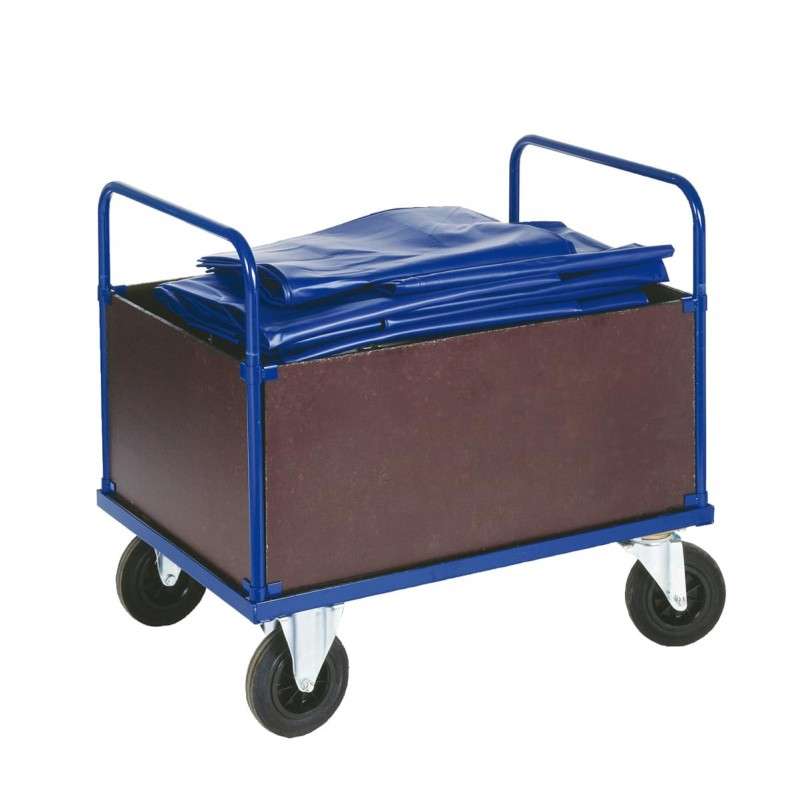

Box Platform Truck 500 kg – a high-sided trolley for controlled internal transport

Some loads sit neatly on an open platform. Others never do. Loose goods, small parts, packs and mixed materials can shift long before the route is finished. That is where this box platform truck comes into its own. The enclosed body helps keep the load together, and the twin push handles make the trolley easier to guide in aisles, at rack ends and beside workstations.

This model is built for heavier day-to-day internal transport. If you regularly move goods between storage, production, packing and dispatch points, a high box trolley like this gives you a more secure transport area than an open platform trolley.

Enclosed panels help keep goods in place

The main benefit of this box platform truck is its enclosed construction. All four sides are panelled, which makes the trolley well suited to goods that do not sit neatly on an open deck. Loose stock, small cartons, components and mixed items are easier to contain when the trolley itself forms a clear boundary around the load.

The 400 mm panel height is a practical middle ground. It is high enough to support the load properly, yet low enough to keep loading and unloading from above quick and uncomplicated.

Two platform sizes for different handling needs

The box trolley is available in two sizes: 1000 x 700 mm and 1200 x 800 mm, so the box platform truck can be matched more closely to the load footprint.

• The smaller version is the more compact option for tighter aisles and more frequent turns.
• The larger version gives you extra platform area for wider or bulkier loads and can reduce the need to split a load across multiple trips.

Both sizes keep the same basic concept: enclosed sides, two push handles, a 500 kg capacity and a platform height of 270 mm.

Durable steel and MDF construction

This high box truck combines a powder-coated steel frame with 12 mm MDF panels. The steel frame provides the strength needed for regular goods handling, while the MDF panels create a smooth, solid transport area around the load. For indoor warehouse, workshop and production use, that is a practical and durable combination.

Wheel setup designed for stable movement

The trolley is fitted with two fixed and two swivel black solid rubber wheels with needle roller bearings. This layout is widely used because it gives a good balance between straight-line stability and controlled manoeuvrability. The fixed wheels help the trolley track properly over longer moves, while the swivel wheels make turning and positioning easier.

Solid rubber wheels are a sensible choice for regular indoor handling. They are dependable in day-to-day use and support smooth movement across typical warehouse and industrial floors. Under heavier loads, a stable wheel arrangement makes a clear difference, and this setup is designed to deliver that dependable feel.

Twin push handles improve everyday control

There is a push handle at both ends of the trolley, which makes it easier to approach and reposition from either side. The handle layout also supports better control when the trolley is fully loaded. Combined with the enclosed side panels, it gives the operator a secure way to guide the trolley while keeping the load inside a defined transport area.

Technical data

• Load capacity: 500 kg
• Enclosed side panels on all sides
• Panel height: 400 mm
• Overall trolley height: 900 mm
• Platform height from floor: 270 mm
• Wheel setup: 2 fixed and 2 swivel black solid rubber wheels
• Wheel bearings: needle roller bearings
• Panel material: 12 mm MDF
• Two push handles
• Platform sizes: 1000 x 700 mm or 1200 x 800 mm
