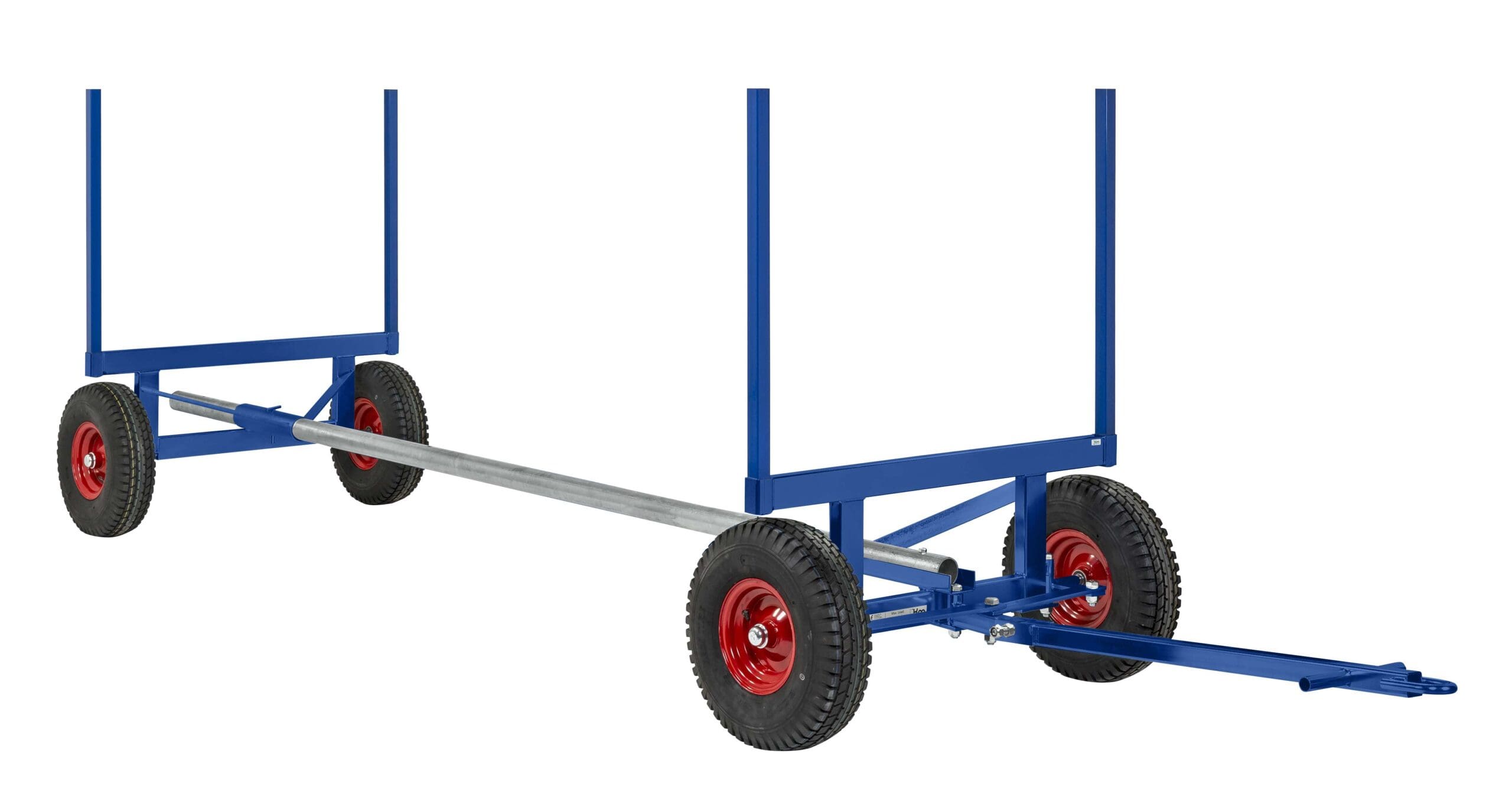

Long Transport Trolley 3500 kg

Long Material Trolley for Long and Heavy Loads

This long material trolley is made for pipes, bars, profiles, beams and other heavy items that need support across a greater length. Its 3500 kg load capacity suits demanding material movements in production, warehouse and logistics environments. The trolley can be set to 4500, 5500 or 6000 mm, so one unit can handle several load lengths. Four separate corner posts, a drawbar with a towing eye and four large fixed wheels complete the open layout.

Adjustable Length for Loads up to Six Metres

The choice of three length settings is one of the main advantages of this long material trolley. Select 4500 mm for shorter material, 5500 mm for an intermediate setup or 6000 mm when the full length is required. The maximum distance between the axles is 6000 mm.

Matching the trolley length to the material makes it easier to plan how the load will sit between the two ends of the trolley. The selected setting should be checked and secured before loading begins. The load itself must also remain within the stated 3500 kg capacity and be positioned according to the applicable workplace instructions.

Capacity for Long and Heavy Materials

With a load capacity of 3500 kg this heavy-duty material trolley is intended for work that exceeds the scope of a light warehouse cart. It can be used for long steel sections, pipes, bars, beams and similar items, provided that the load fits the trolley and the stated capacity is not exceeded.

The electro-galvanised tubular steel construction gives the trolley a strong frame and adds surface protection to the steel. Its open layout keeps the loading area accessible. This is useful when long material needs to be transferred as one load rather than divided into shorter pieces.

Four Corner Posts Define the Load Area

The long goods trolley is supplied with four separate corner posts. The clear distance between the posts is 1160 mm. The posts mark the sides of the carrying area at both ends of the trolley. They help define where the load should sit, but they do not replace suitable load securing.

Drawbar with Towing Eye

The 1210 mm drawbar ends in a towing eye, giving the material handling trolley a defined connection point for compatible towing equipment. This distinguishes it from a push-only platform trolley. The connection, route and operating method should be checked against local site requirements before use.

Four Fixed Wheels

The trolley runs on four fixed wheels with a diameter of 540 mm. This measurement is useful when comparing the model with smaller workshop trolleys. As the wheels are fixed rather than swivel castors, the route and the space available for changes of direction should be considered during planning.

Specifications

• Product type: adjustable long material trolley
• Load capacity: 3500 kg
• Construction: electro-galvanised tubular steel
• Adjustable length settings: 4500, 5500 and 6000 mm
• Listed size (L × W × platform height): 6000 × 1270 × 640 mm
• Maximum distance between axles: 6000 mm
• Clear distance between corner posts: 1160 mm
• Corner posts: four separate posts
• Drawbar length: 1210 mm
• Connection: towing eye
• Wheels: four fixed wheels
• Wheel diameter: 540 mm
• Trolley weight: 168 kg
