Magni LED Magnifying Lamp

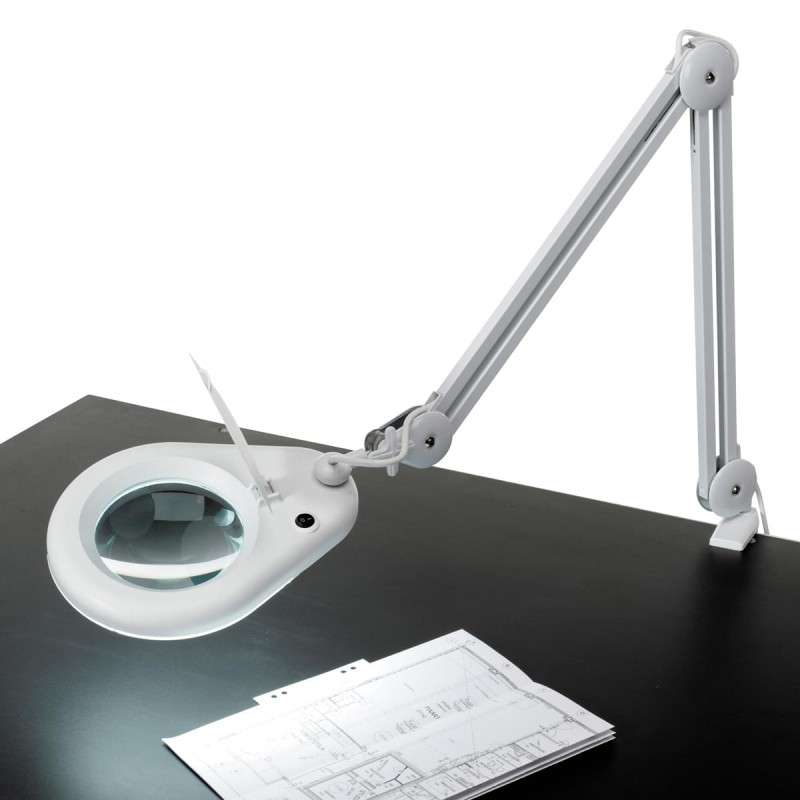

Magni LED Magnifying Lamp – clear light and magnification at the workbench

Small details slow work down when the lighting is poor. A cable marking, a hairline scratch, a solder joint or a small surface defect can be easy to miss if the light comes from the wrong direction or the operator has to lean too close to the work. The Magni LED magnifying lamp solves that daily problem by combining a magnifying lens and an LED work light in one adjustable unit. It is made for precise, hands-free viewing at the table, without moving the component away from the actual work area. Magni LED is a Finnish product with a practical, workshop-ready structure. The lamp has a sturdy spring-loaded metal arm that can be guided smoothly over the work surface. Once positioned, it stays in place without constant adjustment. The dome is made of plastic, and the lamp is supplied in a clean white finish that fits well on technical workstations, production tables, laboratory benches and service desks.

The light source is included with the lamp. At the correct viewing distance, where the image seen through the lens is sharp, the illumination level is over 3500 lx. This gives the operator a bright, usable view through the magnifier and helps reduce unnecessary eye strain during detailed work. The LED light is arranged around the lens area, so the workpiece can be viewed with direct light from the same direction as the magnification.

Two Magni LED models for different viewing needs

Magni LED is available in two versions. The right choice depends mainly on the size of the area you need to inspect and the level of magnification required. The 9 W version gives stronger magnification with a smaller lens, while the 15 W version has a larger lens and a wider viewing area.

The 9 W model is well suited to tasks where the object is small and the operator wants a close view of fine details. Typical examples include small-space soldering, checking electronic components, analysing samples and inspecting markings or surface faults. The 120 mm lens keeps the lamp compact, and the 5 dioptre magnification gives a closer view when the work requires more enlargement.

The 15 W model is a good choice when a broader field of view is more important. Its 170 mm lens gives more space under the magnifier, which is useful in electronics assembly, weld inspection, component checking and other work where the operator needs to see a larger part of the object at once. The 3 dioptre lens offers practical magnification for inspection without making the viewed area unnecessarily narrow.

Hinged lens cover for everyday use

The magnifying lens is protected by a hinged flap. This simple detail is valuable in real work environments, where dust, packaging material, metal particles or general workshop dirt can easily land on horizontal surfaces. When the flap is closed, it helps protect the lens between tasks. It also makes the same unit usable as a normal desk lamp, because the operator can close the cover and use the LED light without looking through the magnifier. This dual-use design is practical on busy workstations. A worker may need magnification for one stage of a job, then only general light for notes, drawings or a short assembly phase. Instead of keeping a separate desk lamp and a separate magnifier on the table, Magni LED covers both needs in one workbench lamp.

Spring-loaded arm and sturdy table clamp

A magnifier lamp must be easy to move, but it also has to stay where it is placed. Magni LED uses a spring-loaded metal arm that reaches over the work surface and can be adjusted with one hand. The arm helps the operator bring the lens close to the exact inspection point without moving the product, tool or drawing. The standard mounting is a sturdy screw clamp for the edge of the worktable. The clamp is suitable for tabletops from 15 to 60 mm thick. This mounting keeps the desk magnifying lamp firmly attached while leaving the actual work surface free for tools, parts and documents.

When a fixed edge mounting is not practical, a separate table stand is available as an accessory. The stand, product code 0152-340, allows the lamp to be placed more freely on the table and moved between nearby work areas when needed.
