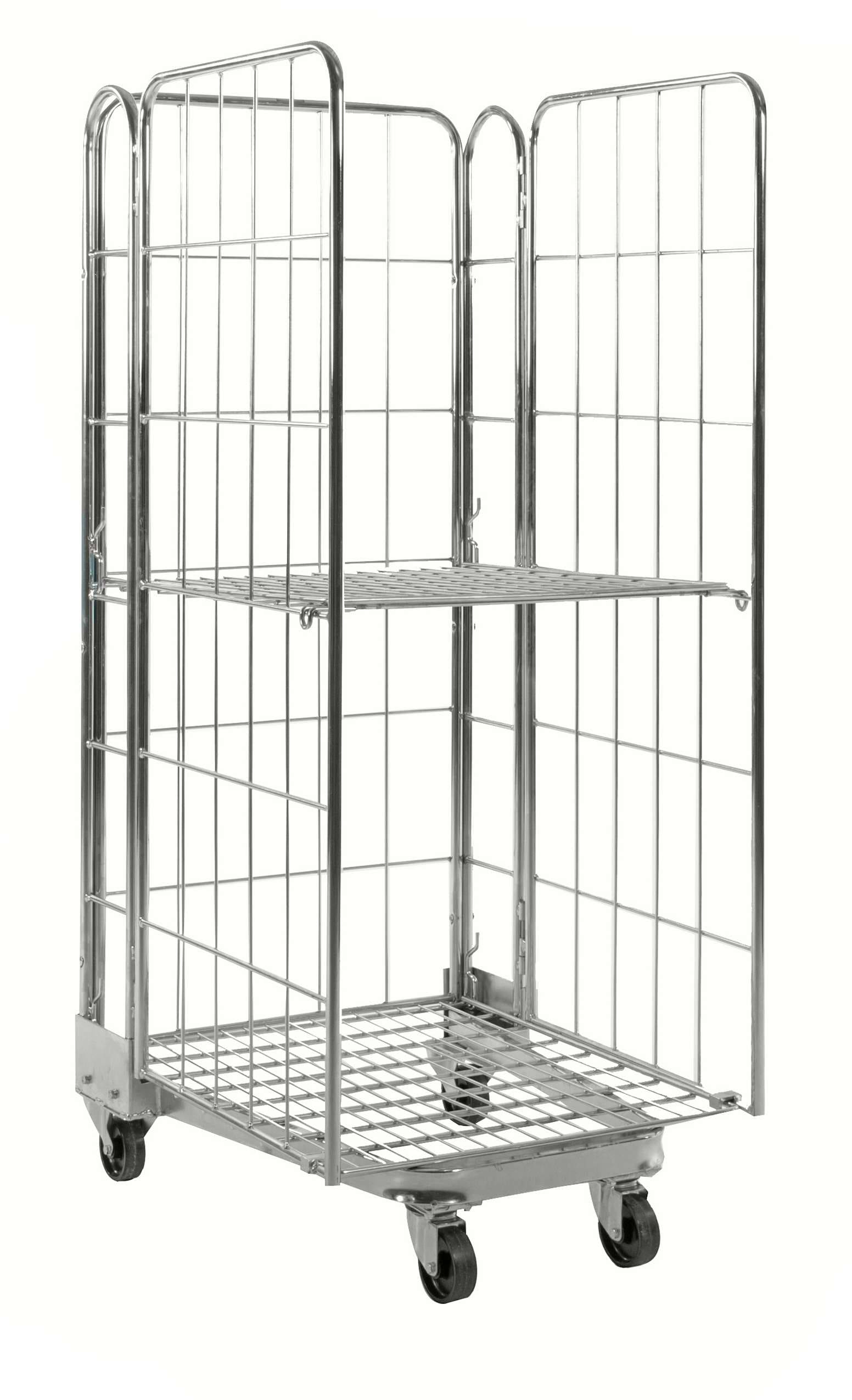

Nestable 3-Sided Roll Container with Wire Shelf

Nestable roll container with shelf for daily goods handling

In warehouses and distribution areas, a roll container has to work just as well empty as it does loaded. This nestable roll container gives you a 400 kg load capacity, three enclosing wire walls and an included wire shelf, yet it occupies less floor space when several empty units are stored together. The open side keeps the contents accessible, so staff can load, unload and pick items without working around a front panel. It is a practical way to move goods between receiving, storage, picking, packing and dispatch.

The steel wire frame is zinc-plated. The supplied shelf creates a second level for separating smaller cartons, components or containers from items placed on the base. If the job changes, additional shelves can be installed. This allows the same 3-sided roll container to serve different load profiles without changing its overall footprint.

Why the nestable design matters

Empty handling equipment can quickly take over valuable floor space. Empty units nest inside one another instead of standing as separate, full-size containers. A group of nested units therefore needs less storage room than the same number stored individually. The design also makes the containers quicker to bring back into use than conventional roll containers that require more preparation. When work picks up again, take out the units needed and put them back into service.

Three wire walls and an open side

The rear wall and two side walls support the load from three directions during normal movement. At the front, the open side provides direct access to the goods. This is useful when items are added and removed repeatedly, because there is no gate to open before reaching the contents. The layout suits internal transport, order handling and replenishment tasks where accessibility is more important than full enclosure.

One wire shelf with scope for additional levels

One wire shelf is included as standard. It divides the available load space and makes it easier to keep different goods apart. Smaller cartons or components can be placed on the shelf while larger items use the base, provided the total load remains within the stated capacity. The open wire construction also keeps both levels visible during routine handling.

Additional shelves can be fitted when more levels are needed. This gives the nestable roll container with shelf a flexible role in changing warehouse routines. A multi-level layout can help separate product groups, individual orders or process stages without increasing the container’s external dimensions. Use shelves intended for this model and observe the applicable loading instructions.

400 kg load capacity and practical castor layout

The container has a total load capacity of 400 kg. Its underframe is fitted with two fixed castors and two swivel castors. The fixed pair supports straight travel, while the swivel pair helps the operator change direction. This familiar wheel arrangement is widely used on warehouse roll containers because it balances tracking and manoeuvrability on normal internal routes.

All four wheels are nylon and have a diameter of 100 mm. Floor condition, thresholds and the nature of the load should always be considered before moving any loaded trolley. Keep the load stable and do not exceed the stated 400 kg capacity.

A braked version is also available. Choose it when the roll container needs to remain stationary during loading, unloading or temporary positioning. Select the wheel configuration according to the working area and local handling procedures.

Zinc-plated steel wire construction

The frame is made from electro-galvanised steel wire, giving the steel a zinc-plated finish. The coating adds surface protection, while the open wire structure keeps the load visible instead of hiding it behind solid panels. The zinc-plated finish is a practical choice for normal warehouse handling.

Specifications

• Overall dimensions: 850 x 720 x 1740 mm
• Load capacity: 400 kg
• Configuration: three wire walls and one open side
• Shelf: one wire shelf included
• Additional shelves: can be fitted
• Castors: two fixed and two swivel
• Wheel material: nylon
• Wheel diameter: 100 mm
• Brake option: braked version available
• Frame: zinc-plated steel wire
