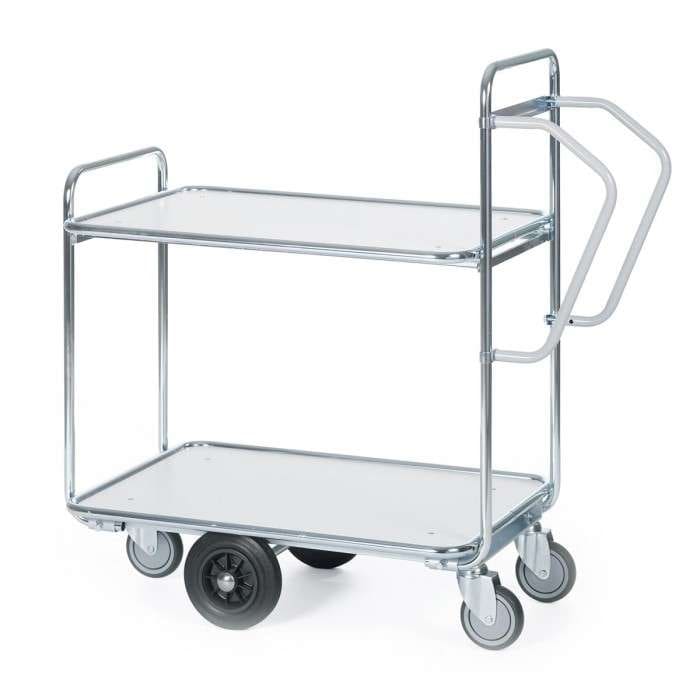

Order Picking Trolley 300 kg with Centre-Mounted Balance Wheels

Order Picking Trolley 300 kg for Demanding Warehouse Work

This order picking trolley is designed for working days when cartons, components, spare parts and picked items build up shelf by shelf, yet the trolley still needs to stay predictable in motion. That is the real value of this model. It gives you 300 kg of load capacity in a format that remains easy to guide through routine order picking, replenishment work and internal transport.

The structure is practical and direct: rounded corners, laminate shelves, a grey plastic-coated handle and wheel geometry that supports the load instead of fighting against it. In use, that means the trolley feels stable in a long aisle, easier to turn when the route narrows and less awkward to control when the shelves are full.

Why this order picking trolley stays easy to manoeuvre

The wheel setup is what most clearly separates this picking trolley from a more basic shelf trolley. Two fixed black solid-rubber balance wheels in size 200 x 45 mm carry the main load. They are fitted with roller bearings and give the trolley the support it needs when the weight starts climbing. Steering is handled by three grey-rubber swivel castors in size 125 x 35 mm with ball bearings. Together, the wheels create a six-wheel layout that is light in motion and controlled under load.

2- and 3-shelf configurations for different picking routines

Not every picking route follows the same pattern, which is why this order picking trolley is available with either two or three shelves. That gives you a direct way to match the trolley to the goods being moved and the amount of separation you need during picking.

The 2-shelf model is a sensible choice when the load includes taller items, larger cartons or goods that need quicker access from above. In this version, one end is lower than the handle end. That lower end makes loading easier and gives the operator better access to the shelf area during a fast picking round.

The 3-shelf model provides more level separation when the work involves smaller goods, mixed orders or products that benefit from being sorted across more than one shelf. In many warehouses, that helps keep the picking flow cleaner because the operator can separate order lines or item groups more clearly without needing extra containers.

Three size options for aisle width, load size and floor space

This order picking trolley is available in three overall sizes, each built around a different platform format. The available options are:

• Overall size 1130 x 520 x 1110 mm, shelf size 850 x 520 mm
• Overall size 1130 x 620 x 1110 mm, shelf size 850 x 620 mm
• Overall size 1530 x 620 x 1110 mm, shelf size 1250 x 620 mm

Laminate shelves built for daily use

The shelves are surface laminated, which is a practical choice for an industrial picking trolley. In daily use, shelf surfaces get dragged against boxes, brushed by packaging and cleaned regularly. Laminate handles that kind of routine wear well and keeps the trolley presentable with ordinary care.

Another useful detail is that the shelves can be removed easily when needed. First, cleaning is simpler when the shelf surfaces can be taken out rather than wiped around fixed frame sections. Second, flexibility improves when taller items need temporary space. Removing a shelf can open up the trolley for awkward goods without needing a completely different transport solution.

Safe handling details that help in everyday work

All corners on the trolley are rounded. That may sound like a small point, but it is the sort of feature people appreciate after weeks and months of daily use. Rounded corners help reduce knocks against surrounding structures, goods and the trolley operator in narrow warehouse aisles and busy picking zones. The push handle is grey plastic-coated, which gives a more secure and comfortable grip than bare metal alone. Combined with the smooth wheel setup, the handle helps keep movement controlled from the first run to the last.

Load capacity for professional use

This order picking trolley has a total load capacity of 300 kg. That makes it suitable for professional use where the trolley is expected to work hard instead of only handling occasional light tasks. Each shelf has a maximum load capacity of 150 kg, which gives a clear working limit when planning how goods are distributed across the trolley.

Also available with a ladder

For facilities where operators need to reach higher levels during the picking round, this model is also available in a version with a ladder. That makes the range easier to standardise across different picking tasks, from ground-level work to higher shelf access.

Technical data

• Available with 2 or 3 shelves,
• Two fixed 200 x 45 mm black solid-rubber balance wheels with roller bearings
• Three 125 x 35 mm grey-rubber swivel castors with ball bearings
• Load capacity: 300 kg
• Maximum load per shelf: 150 kg
• Sizes: 1130 x 520 x 1110 mm, 1130 x 620 x 1110 mm and 1530 x 620 x 1110 mm
• A ladder-equipped version is also available
• The trolley is delivered unassembled
