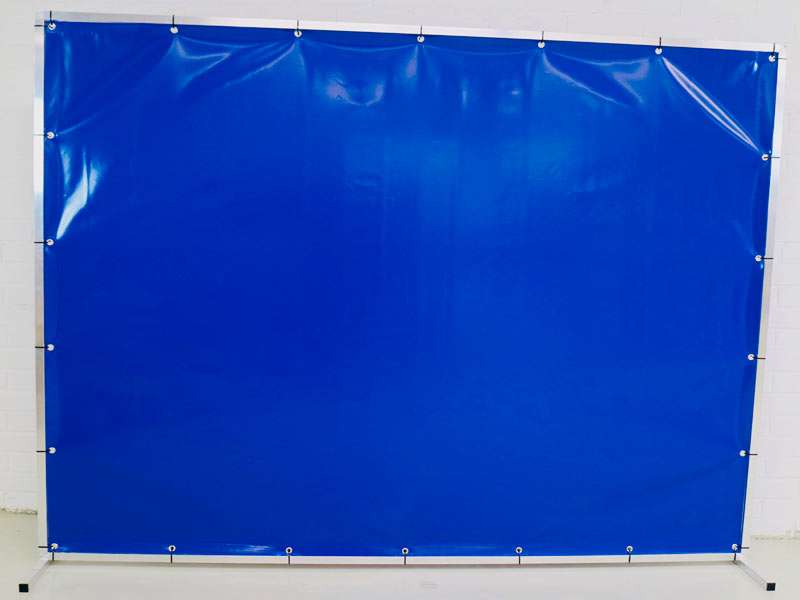

Portable Welding Screen

Portable welding screen for changing work areas

When welding moves, the screening needs to move with it. Repair jobs, maintenance tasks and short production runs may take place in different parts of a workshop. This portable welding screen marks off the active work area without the need for a permanent partition. Put it where the task is taking place, then reposition it when the job or layout changes.

The standard aluminium frame is 1300 mm wide and 1860 mm high. It creates a clear boundary around a local workstation while leaving the wider floor plan flexible. The format suits workshops, industrial production areas, maintenance departments and other professional spaces where welding or hot work is carried out at changing locations.

UV protection with a flame-retardant PVC welding curtain

Arc welding produces intense light and ultraviolet radiation. This screen uses flame-retardant, UV-coated PVC fabric for welding and hot-work areas. According to the supplied product information, the material blocks 99.8% of the UV radiation generated by welding. The welding screen therefore forms a practical barrier between the active workstation and nearby work areas.

The PVC welding curtain is mounted on an aluminium frame, so it does not have to hang from a wall or ceiling. This is useful when the same floor area serves different purposes during the day or when a temporary repair point needs screening.

Aluminium frame in a practical standard size

The aluminium frame measures 1300 x 1860 mm (W x H). This practical format screens a focused work area without adding a fixed wall. It works well wherever the work zone needs to remain easy to change. The 1300 x 1860 mm model is the standard size. Other dimensions are also available, so the screen can be matched more closely to the workstation or floor layout.

Optional castors make the screen easier to move

The portable welding screen can be repositioned as work requirements change. If it will be moved frequently, add the optional four-piece castor set. The wheels reduce the need to lift the frame and make it easier to move the screen between nearby work areas. The castor set is an accessory and is ordered separately under product code 1013-711.

Suitable for welding, maintenance and temporary hot-work zones

The screen is made for professional settings where a welding or hot-work area needs quick separation without permanent construction. It is useful for planned maintenance, individual fabrication tasks and repairs carried out away from a fixed welding bay.

• Welding and fabrication workshops
• Industrial maintenance and repair areas
• Production facilities with changing workstations
• Temporary hot-work zones in warehouses and service areas
• Training areas where welding workstations need clear separation

Because the hot-work screen can be relocated, the same unit can serve different work areas at different times. It is a straightforward choice when the layout must remain flexible and a permanent wall or fixed curtain system would be impractical.

Specifications

• Product type: portable welding screen for welding and hot work
• Frame material: aluminium
• Standard frame size: 1300 x 1860 mm (W x H)
• Screen material: flame-retardant, UV-coated PVC fabric
• UV protection: blocks 99.8% of UV radiation generated by welding
• Mobility: optional four-piece castor set
• Castor set product code: 1013-711
• Size options: standard size and other dimensions available
