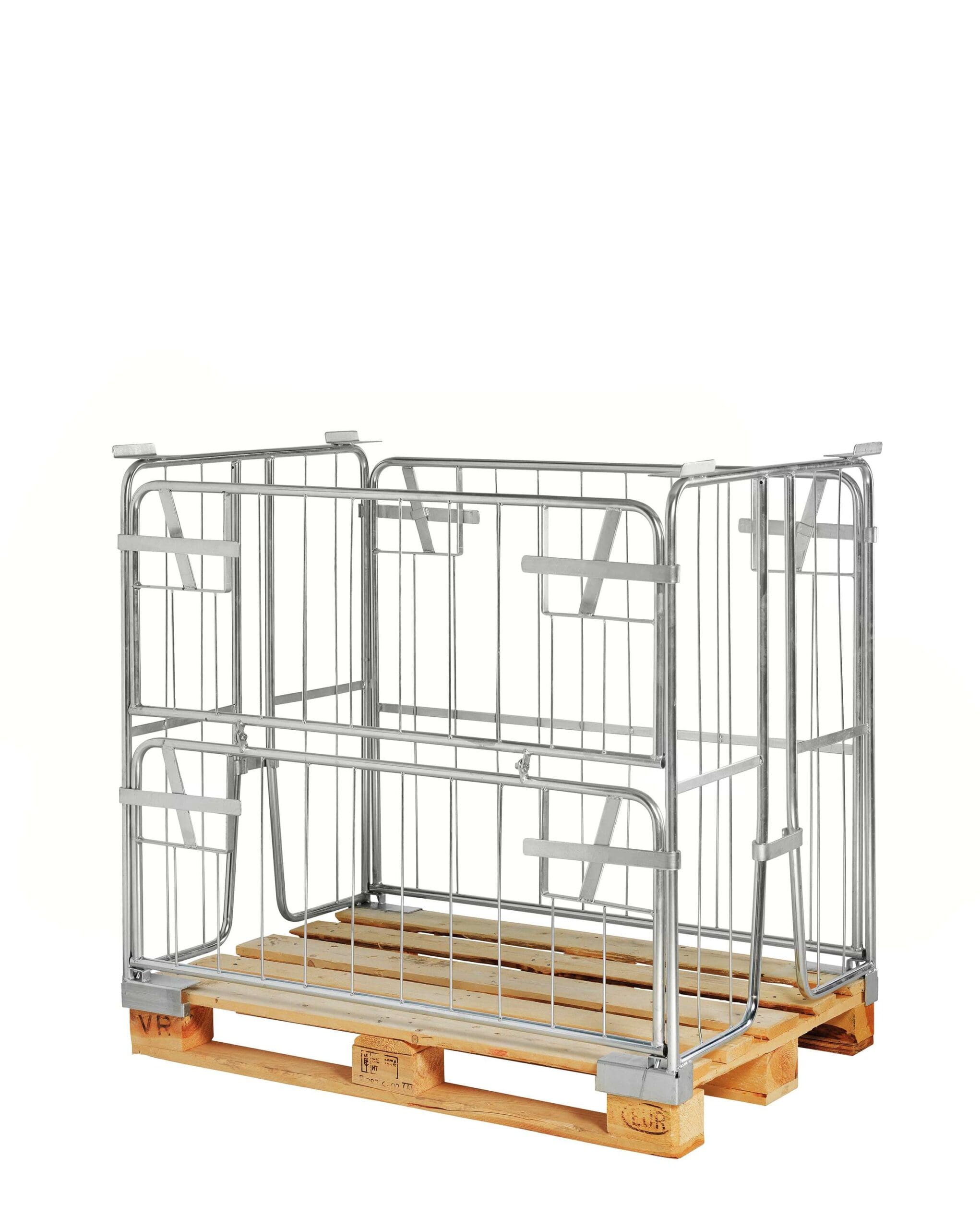

Stackable Mesh Pallet Collar for EUR Pallets

Stackable mesh pallet collar for 1200 x 800 mm EUR pallets

Cartons, packaged components and awkwardly shaped goods can be difficult to keep together on an open pallet. This stackable mesh pallet collar adds metal sides around a standard 1200 x 800 mm EUR pallet, turning the pallet into a clearly defined storage unit. The load remains visible through the mesh, while the frame helps keep suitable goods within the pallet area during storage and internal handling.

A mesh stacking frame that fits an existing EUR pallet

The frame is designed to be placed directly on a 1200 x 800 mm EUR pallet. Retaining edges locate the cage on the pallet and help hold it firmly in position. There is no need to move the goods into a separate box simply to create surrounding walls. The EUR pallet remains the base of the unit, which makes this Euro pallet cage a practical addition to an established pallet-based workflow

Fold-down or removable half gate on the long side

Access is often the main problem with a tall pallet cage. Reaching over the top is inconvenient, and unloading the upper layers only to reach items lower down wastes time. On this model, a half-width section of one long side acts as a gate. It can be folded down for routine access or removed when a wider, unobstructed opening is more useful.

The half gate helps during loading, unloading and order picking. Operators can approach the load from the long side and work through the opening rather than over the full wall height. This is particularly helpful with the 1500 and 1800 mm versions, where top access alone would be less practical. Once access is no longer required, the gate can be returned to its normal position so that the pallet cage again surrounds the load.

Three heights with the same 1200 x 800 mm footprint

The correct height depends on the size of the goods, how often they must be picked and how the loaded unit will be handled. All three versions occupy the footprint of one EUR pallet:

• 1200 x 800 x 1000 mm – the lowest option. It is a practical choice when side access is frequent or the goods do not require a tall enclosure.
• 1200 x 800 x 1500 mm – the middle height. It provides more vertical space while retaining access through the fold-down or removable half gate.
• 1200 x 800 x 1800 mm – the tallest option. It is intended for goods that need the greatest available enclosure height on the same EUR pallet footprint.

Stackable design for better use of vertical space

The mesh pallet collars can be stacked on top of one another. This allows compatible units to use vertical space instead of occupying a separate floor position for every pallet. Stackability can be valuable in buffer storage, production supply areas and warehouses where floor space must be used carefully.

Electro-galvanised metal frame for regular warehouse use

The metal frame has an electro-galvanised finish. This surface treatment helps protect the metal against corrosion during normal indoor storage and handling. It also leaves a clean metallic surface that is easy to inspect as part of routine warehouse checks.

Visible contents support faster identification

Solid pallet boxes hide most of the load from view. The open mesh structure of this pallet cage lets staff see the contents from several sides before opening the gate. That can make it easier to identify the correct pallet, notice when stock is running low and check whether a load appears complete.

Specifications

• Product type: stackable mesh pallet collar / pallet cage
• Compatible pallet size: 1200 x 800 mm EUR pallet
• Available overall sizes (L x W x H): 1200 x 800 x 1000 mm, 1200 x 800 x 1500 mm and 1200 x 800 x 1800 mm
• Access: a half-width section of one long side folds down or can be removed
• Frame: electro-galvanised metal
• Storage feature: stackable
