Stacking Bin Rack 4

Treston stacking bin rack for small parts storage

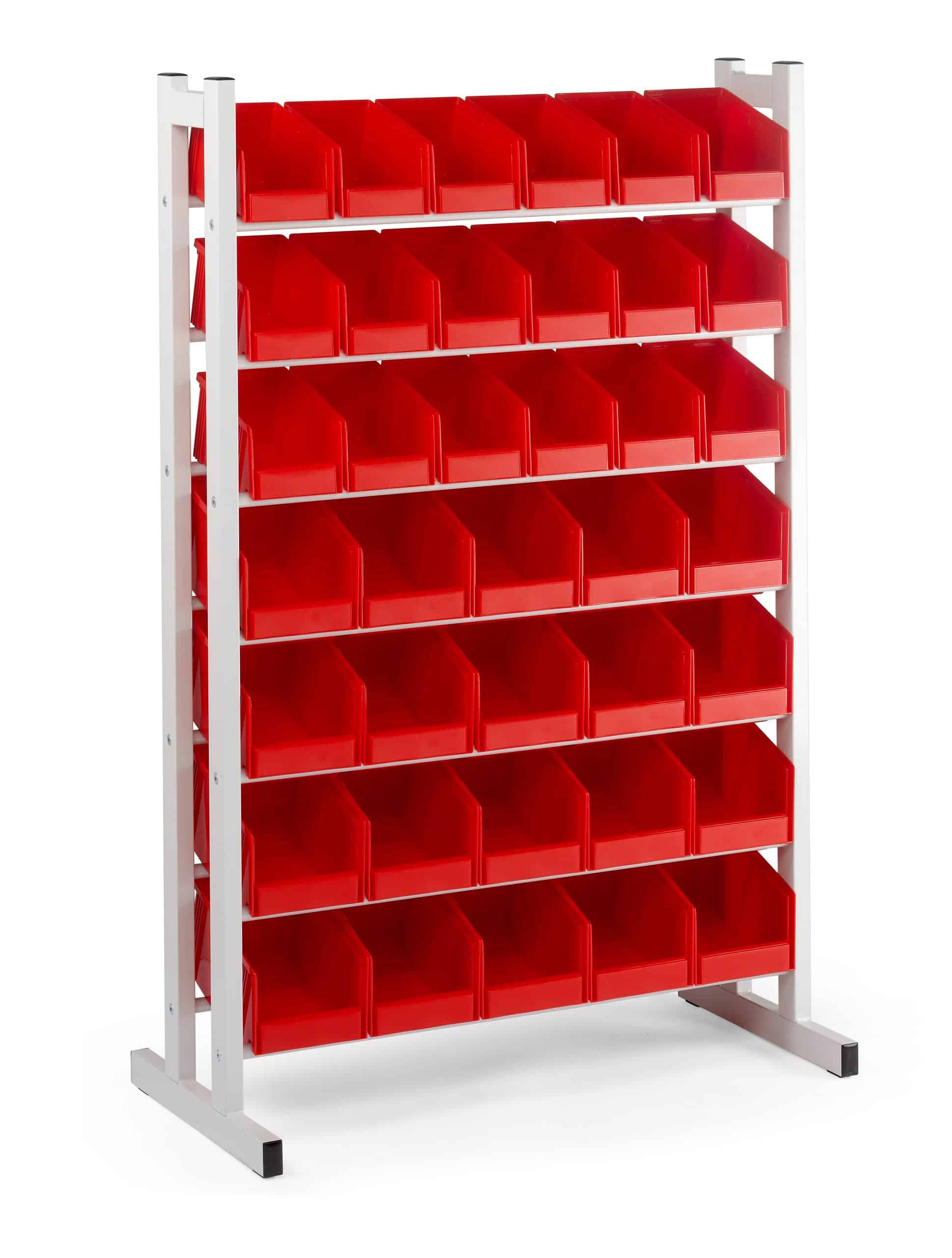

Treston stacking bin rack with 35 Treston 1930 stacking bins gives frequently used parts a visible, fixed and easy-to-reach storage position. It is a straightforward small parts storage system for warehouses, stores, production areas, maintenance points and assembly work where fast picking and tidy stock control are part of daily work.

Complete Treston bin rack combination

This ready-made combination includes the Treston BR-2530 rack and 35 Treston 1930 stacking bins. The rack is used here with the 1930 bin size, with five bins on each of the seven support levels. The stand is compact and easy to place along a wall, at the end of a shelving row or beside an assembly line where parts need to be close to the work.

The steel frame is light grey, RAL 7035, and powder-coated for a hard wearing finish. The structure includes seven fixed support pairs that slope forward, so the bins sit at a practical picking angle. The support width is 930 mm. Each support level has a 50 kg load capacity, and the complete stand has a maximum load capacity of 350 kg when loaded correctly.

• Includes rack BR-2530 and 35 stacking bins 1930
• Seven fixed, forward-sloping support levels
• Five 1930 bins per level
• Light grey powder-coated steel frame, RAL 7035
• 50 kg load capacity per level and 350 kg load capacity per stand

Open-fronted stacking bins for fast picking

The Treston 1930 bins are practical open-fronted storage bins for daily use. The open front makes the contents visible and keeps the picking edge low enough for quick access. The corrugated base helps prevent small items from sliding on the bottom and makes it easier to pick up even flat or light components. The open design also makes filling the bins quick when stock is topped up.

The bins are made from coloured polypropylene (PP), a durable plastic material suited to industrial small parts storage. The temperature tolerance is -20…+75°C, and the bins withstand oils, most acids, alkalis and solvents. Each 1930 stacking bin measures 300 x 186 x 156 mm (D x W x H). The internal dimensions are 230 x 155 x 140 mm, and the capacity is 5 litres. This size suits many common parts and consumables without taking too much floor space.

Available bin colours are blue, red and grey, which makes it possible to build a simple colour-coded storage system by part type, work area, stock status or department. Dividers are available separately for internal separation when different items need to be kept apart inside the same bin. Labels and protective shields can also be used for clearer identification.

Technical data

• Rack BR-2530: 500 x 990 x 1540 mm
• Support pair width: 930 mm
• Stacking bin 1930: 300 x 186 x 156 mm
• Internal bin dimensions: 230 x 155 x 140 mm
• Bin capacity: 5 litres
• Bin material: coloured polypropylene (PP)
• Temperature tolerance: -20…+75°C
• Available bin colours: blue, red and grey
