Treston Bin Rail for Workbenches

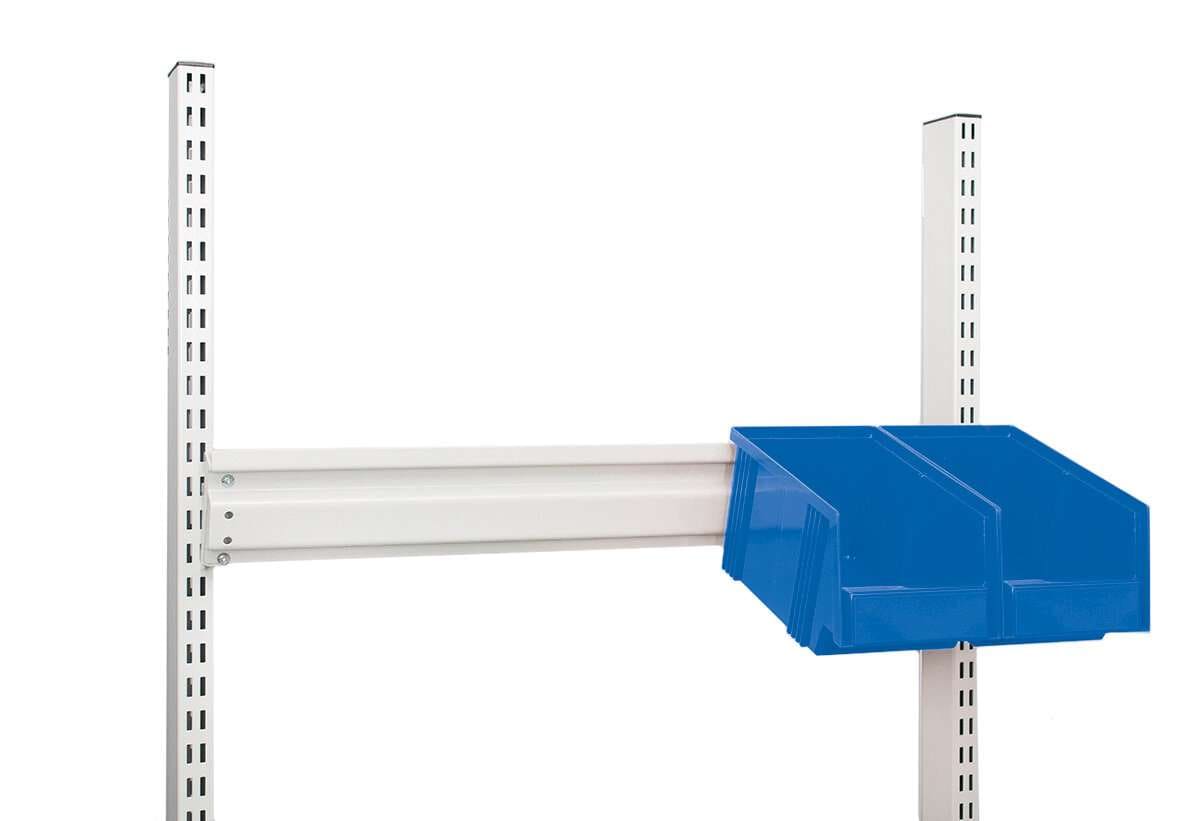

Treston Bin Rail for Workbenches – organise picking bins above the work area

Loose small parts can slow down even a well-planned workstation. Screws, washers, plugs, O-rings, terminals and labels are needed again and again, but they should not cover the work surface or disappear into drawers. The Treston bin rail gives those everyday items a clear place. It creates a hanging line for compatible picking bins, so the operator can see the contents, reach them quickly and keep the bench ready for the actual job. This Treston bin rail is intended for compatible Treston upright tubes and frame systems. It suits modular industrial workstations where the space above or behind the bench is used for storage instead of leaving every box on the table.

Why add a bin rail to a Treston workstation?

A workbench is most useful when the surface stays open. If picking bins are placed directly on the top, they take space from tools, parts, documents and the product being assembled. A workbench bin rail moves those bins into vertical space. The parts remain close to the operator, but the working area stays clearer and easier to clean.

Designed for Treston modular frames

The rail is made for Treston workbench and storage systems that use compatible upright tubes or modular frames. It can be used with several Treston product families, including Concept Ergo workbenches, TP workbenches, Workshop heavy workbenches, industrial cabinets, Treston Industrial Multi trolleys and Treston Tower storage and workstation units. The exact fit depends on the module size and the frame used, so the module should be checked before ordering.

Two common module sizes are available. The M750 version is for the 750 mm module and has an actual rail width of 742 mm. The M900 version is for the 900 mm module and has an actual rail width of 895 mm. Both versions are 100 mm high and designed to give compatible bins a stable hanging point. This makes it easier to build a practical small parts storage system without adding a separate cabinet or extra floor-standing unit.

Technical data

• Product type: Treston bin rail for compatible workbenches, upright tubes and frames
• Module options: M750 and M900
• Actual rail widths: 742 mm for M750 and 895 mm for M900
• Height: 100 mm
• Material: epoxy powder-coated steel
• Colour: light grey, RAL 7035
• Maximum load: 50 kg when installed and used according to the correct setup
• Version: standard non-ESD bin rail

Strong steel construction for industrial use

The rail is manufactured from epoxy powder-coated steel in light grey RAL 7035. The finish matches many Treston workstations and gives the accessory a clean, industrial appearance. Steel construction is a practical choice for daily work areas, where accessories need to tolerate repeated handling and the weight of filled small parts bins. The maximum load is 50 kg, provided that the rail is installed correctly on a compatible structure and the load is suitable for the frame.
