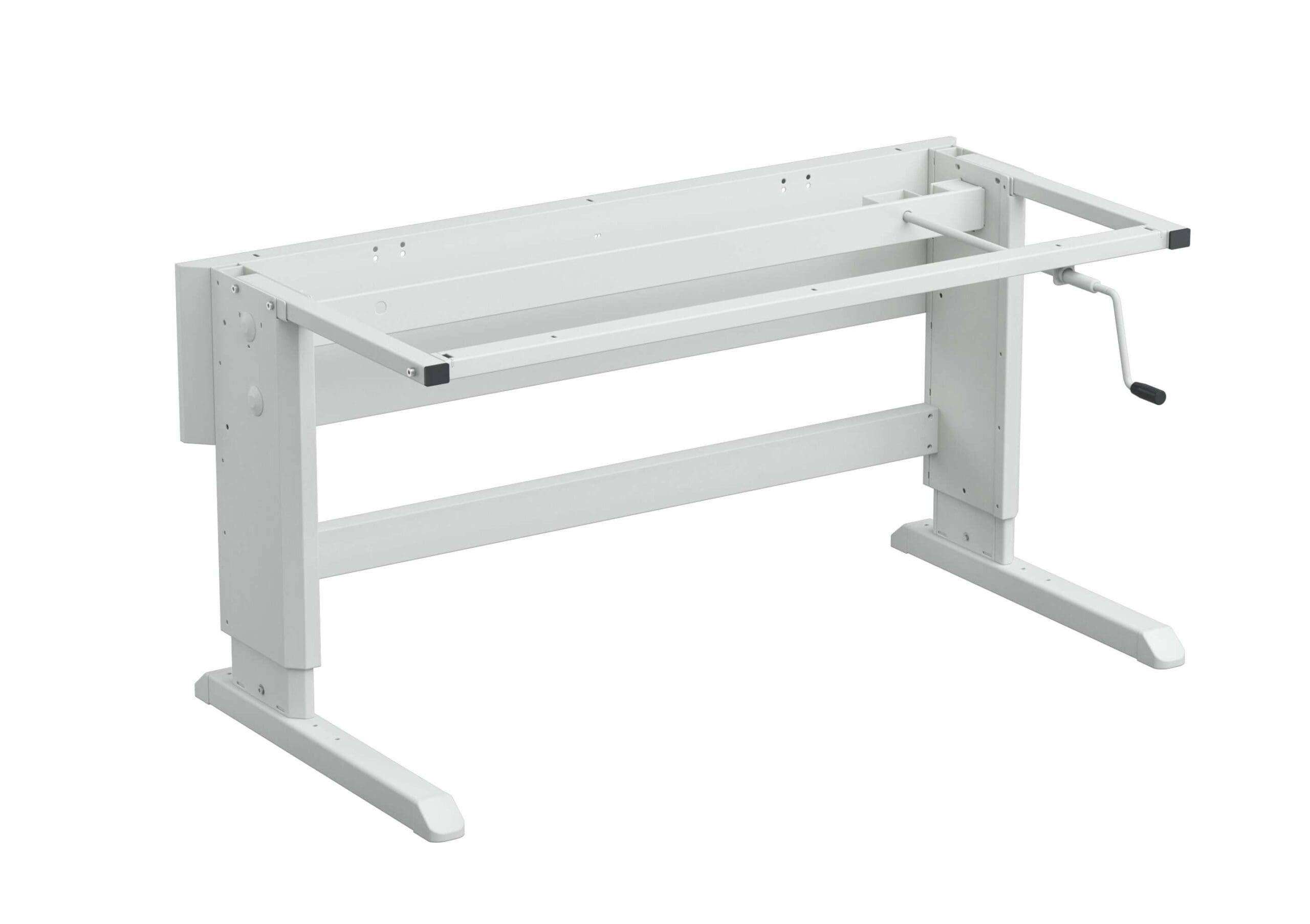

Treston Concept Hand Crank Adjustable Workbench Frame

Treston Concept hand crank adjustable workbench frame for industrial workstations

The Treston Concept hand crank adjustable workbench frame gives a stable, practical base for professional workstation. It is made in Finland and designed for demanding industrial use where the table must carry tools, materials and equipment without becoming difficult to adjust. This product is the frame of a Concept workbench. A compatible Concept worktop is selected separately, which makes it easier to build a workstation around the actual job. With the Concept frame, the base stays the same while the equipment around it can be chosen for the process.

Stepless height adjustment

The most important feature of this adjustable workbench frame is the stepless hand crank height adjustment. The working height can be set from 675 to 1025 mm, giving a broad range for seated work, standing work and users of different heights. This matters in real production work. The hand crank gives controlled adjustment without an electric motor. That makes the frame a strong choice for workstations where the height is changed when the task, shift or operator changes.

200 kg load capacity for tools, materials and equipment

The frame has a 200 kg load capacity. This gives a safe working base for the equipment normally found in industrial workstations: hand tools, torque tools, test instruments, small machines, printers, packaging supplies, fixtures and materials waiting for processing. The load capacity also supports workstation planning. Heavy items can stay close to the user instead of being moved repeatedly from a separate trolley or shelf.

A modular Concept workstation

The Treston Concept system can be equipped for different tasks. The frame can be combined with upright tubes and profiles, lighting supports, light and balancer rails, power rails, cable channels, shelves, drawers, bin rails, small storage cabinets and auxiliary shelves. This makes it possible to keep the worktop clear while frequently used items stay within reach.

Hand crank adjustment without a power connection

A hand crank adjustable workbench is a practical middle ground between a basic manual bench and a fully electric height adjustable workbench. It does not require a power connection for height adjustment, but it is easier to adapt than a frame that needs tools for each height change. This is useful when the workbench height is adjusted a few times a day, for example at shift change or when a different process is brought to the same line. The mechanical adjustment also supports flexible layouts. The frame can be placed in packing areas, production cells, repair spaces or inspection points without planning a power outlet only for height control.

ESD version for electronics environments

Where electrostatic discharge protection is required, an ESD version of the Concept workbench frame is available. This is important in electronics production, repair and testing areas where sensitive components must be handled with controlled grounding and suitable workstation materials. When building an ESD workstation, the frame, worktop and accessories should be selected as a complete ESD-compatible setup.

Technical data

• Product: Treston Concept hand crank adjustable workbench frame
• Height adjustment: stepless, 675–1025 mm
• Adjustment method: hand crank mechanism
• Load capacity: 200 kg
• Frame material: powder-coated steel
• Suitable uses: packing workstation, assembly workbench, testing bench and quality control workstation
• Accessories: upright tubes, lighting supports, tool balancer rails, power rails, cable channels, shelves, drawers, bin rails, small storage cabinets and auxiliary shelves
• ESD version: available for electronics workstations
