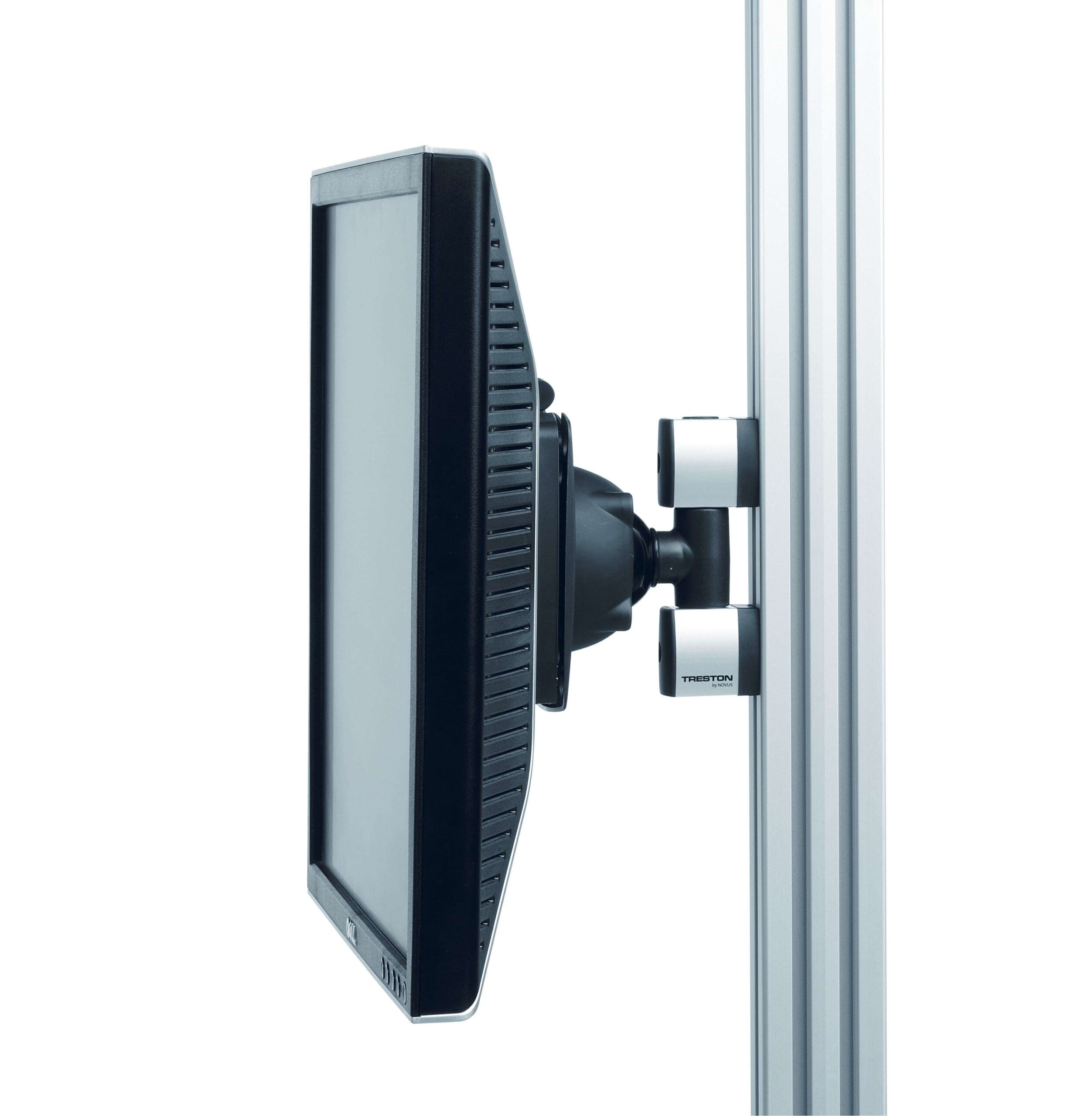

The Treston MH LCD monitor bracket keeps the screen off the worktop and places information where it is easier to see during assembly, packing, testing or maintenance work. It is a compact workbench monitor mount for several Treston benches and trolleys, with a standard VESA 75 x 75 mm and VESA 100 x 100 mm mounting plate for common flat screens.
The MH bracket has a maximum load capacity of 15 kg, making it suitable for many LCD monitors used in production and warehouse workstations. The robust construction helps keep the monitor in a stable position, while cable routing keeps power and signal cables tidier around the keyboard and work area.
Use the AS2 adapter set when MH, MA or MA2 monitor arms are mounted to Concept, TP, LMT or Towerline adjustment tubes, or to the C-profile of a TPH table. The product is light grey and supplied as one unit.
"*" indicates required fields
A monitor should not take over the worktop. On an assembly bench, packing station, test desk or service point, the screen must be easy to read without blocking tools, parts, documents or the keyboard. The Treston MH LCD monitor bracket is made for that exact purpose: it lifts a flat screen away from the working surface and fixes it to the workstation structure where the display can stay close to the task.
The MH bracket is a compact workbench monitor mount for several Treston workbenches and industrial trolleys. Instead of placing a monitor stand on the table, the screen is mounted to the bench structure. This gives the workstation a cleaner layout and leaves more usable space for daily work.
The Treston MH LCD monitor bracket uses the two common flat screen mounting patterns: VESA 75 x 75 mm and VESA 100 x 100 mm. These VESA sizes are widely used on office and industrial LCD monitors, so the same bracket can be used for many screen models when the monitor weight and hole pattern match. For example, the bracket can suit a small test monitor or a larger workstation display, as long as the screen stays within the stated load capacity.
The quick-release VESA mount makes fitting the screen more practical in workshop and production environments, where equipment may need to be changed, serviced or reorganised. The maximum load capacity is 15 kg. This gives the MH bracket enough strength for many flat screens used on production benches, packing benches and technical workstations. Always check the monitor’s weight and VESA hole pattern before ordering.
The MH LCD monitor bracket is intended for use with a wide range of Treston products. It is a good option when the workstation already has upright structures, adjustment tubes or compatible profiles for accessories.
Suitable Treston product groups include:
The AS2 adapter set is required when MH, MA or MA2 monitor arms are attached to Concept, TP, LMT or Towerline adjustment tubes, or to the C-profile of a TPH table. This is an important detail when the bracket is added to an existing bench. Choosing the correct adapter at the same time avoids installation delays and makes the final monitor setup more secure.
| Product name | Treston MH LCD monitor bracket |
|---|---|
| Product code | MH |
| EAN code | 6416763084258 |
| Maximum load | 15 kg |
| VESA compatibility | 75 x 75 mm and 100 x 100 mm |
| Colour | Light grey |
| ESD classification | No |
| Package dimensions | 190 x 210 x 130 mm |
| Package weight | 1 kg |
| Quantity per package | 1 unit |
