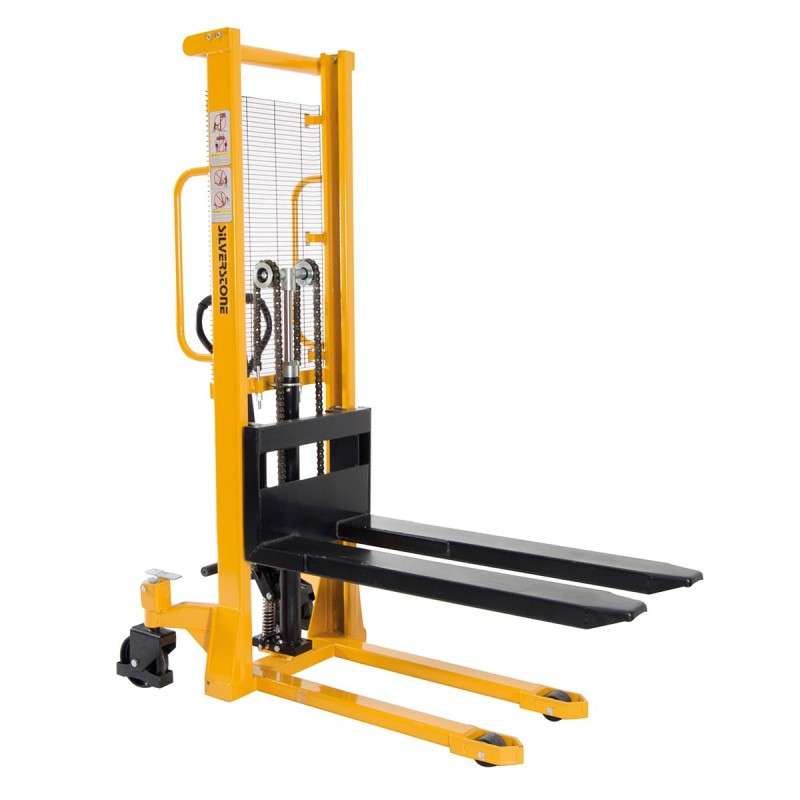

Manual Pallet Stacker with Foot Pump 1000 kg

Manual Pallet Stacker with Foot Pump 1000 kg for Everyday Pallet Handling

This manual pallet stacker with foot pump is made for light daily lifting, occasional pallet handling and static use where a simple hydraulic solution is enough. The stacker is operated by a hydraulic foot pump, so it is always ready for use. There are no charging breaks, no cable routes and no battery maintenance to consider during the working day. The design is straightforward and mechanical, which makes it a dependable choice for sites that need lifting equipment available at any time of day.

When to choose this manual pallet stacker

A manual pallet stacker is a good fit when lifting tasks are regular but not constant. It helps raise palletised goods from floor level to a more comfortable working height, support light shelf replenishment, unload goods at a fixed point or improve ergonomics in a workstation. The operator can position the pallet, pump the load upwards with the foot pedal and move the stacker short distances on hard indoor floors.

1000 kg capacity with practical pallet dimensions

The manual stacker has a load capacity of 1000 kg. The fork length is 1150 mm, a common length for handling Euro pallets and many standard pallet loads. The specified load centre is 460 mm, so the load should always be placed evenly on the forks and within the stated capacity. The lifting movement is steady and predictable. Each pump stroke raises the forks by 12.5 mm. This makes the stacker useful in work where the load must be brought to a controlled height, for example beside a packing bench, machine feed point or lower storage level. The hydraulic system also includes an overload valve, which protects the cylinders and prevents lifting when the load is too heavy.

Two lift height options

The pallet stacker is available in two model versions. The free lift model is intended for applications where the operator needs to raise the forks without increasing the mast height during the free lift phase. The duplex mast model is the right choice when a higher maximum lift height is required.

Easy movement on nylon wheels

Good wheel behaviour matters when a stacker is moved by hand. This manual pallet stacker is equipped with nylon steering wheels and nylon fork wheels. The steering wheels measure Ø 150 × 40 mm, and the fork wheels measure Ø 80 × 70 mm. Nylon is a hard-wearing wheel material for smooth concrete and epoxy floors, and it helps keep rolling resistance low on clean, hard surfaces.

The turning radius is 1350 mm, which supports manoeuvring in aisles, stockrooms and compact production areas. The compact turning behaviour is useful when the operator has to approach shelving, align the forks with a pallet or reposition a load near benches and machines. Toe guards on the steering wheels add protection around the operator’s feet during normal handling.

Technical data

• Load capacity: 1000 kg
• Fork length: 1150 mm
• Load centre distance: 460 mm
• Turning radius: 1350 mm
• Lift per pump stroke: 12.5 mm
• Steering wheels: nylon, Ø 150 × 40 mm
• Fork wheels: nylon, Ø 80 × 70 mm
• Safety: overload valve and toe guards on steering wheels
• Model options: free lift 85–1600 mm or duplex mast 85–2500 mm
