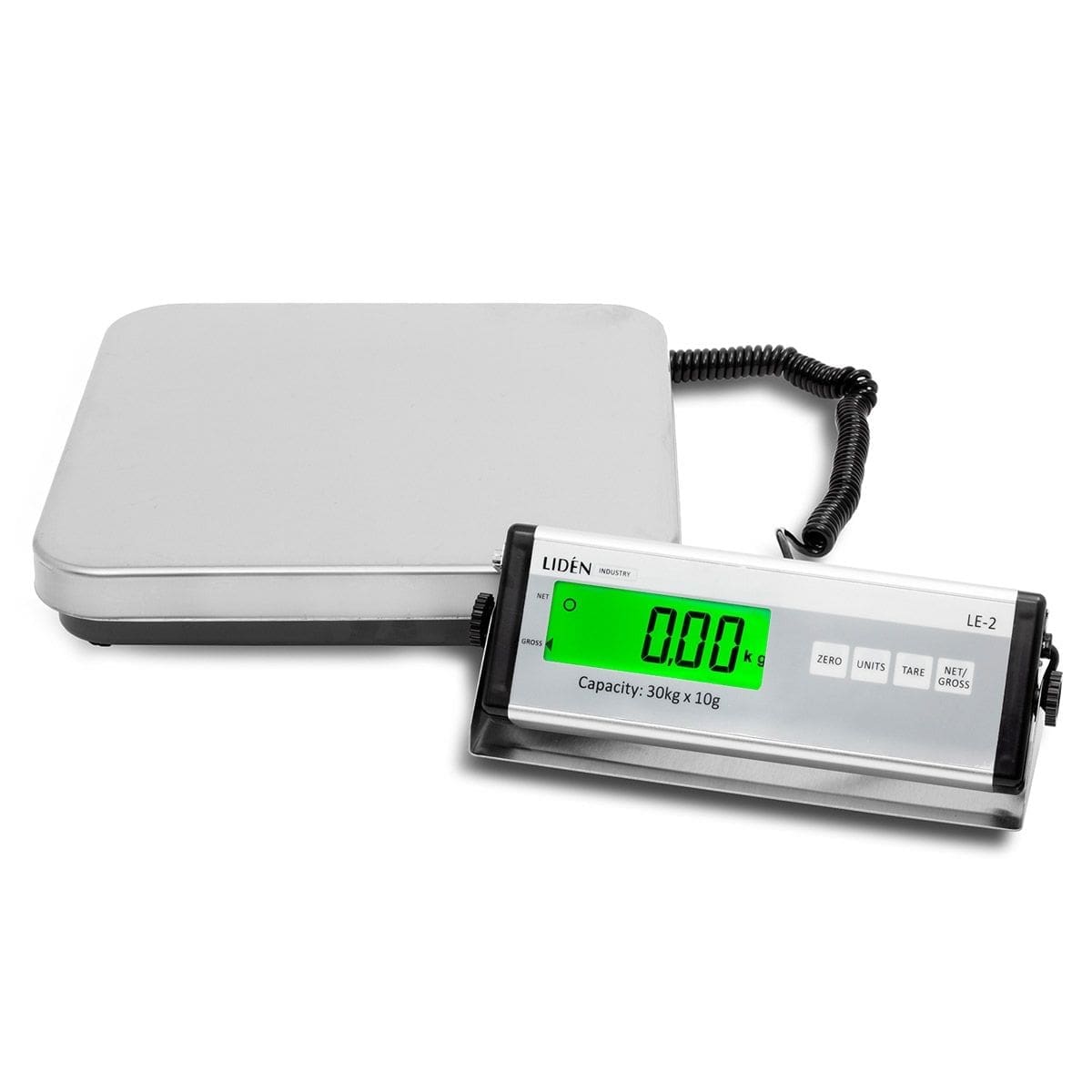

LE2 Parcel Scale – accurate weighing for dispatch, receiving and warehouse work
LE2 parcel scale is a practical, high-accuracy solution for everyday logistics: fast readings, a rugged stainless steel platform and a separate indicator that stays visible even when you place a large box on the scale. Because the display is separate from the platform, you can keep the weighing area clear and still see the numbers. The LE2 parcel scale setup is also easy to move between workstations when the flow changes, without rebuilding your process around a fixed weighing point.
Stainless steel weighing platform
The LE2 parcel scale uses a sturdy stainless steel weighing platform sized 325 × 320 mm. The surface handles bumps and typical warehouse spills, and it is easy to wipe clean at the end of the shift. The footprint is compact enough for a packing table, yet large enough for most parcels, cartons and return totes.
Separate backlit indicator keeps the reading in view
The backlit LCD indicator has 25 mm high digits and a clear layout. It is designed to be read quickly from a normal working distance, including in dim aisles or at a goods-in desk. The indicator housing can be placed on the table or mounted to a wall, so you can position it where the operator naturally looks.
Fast weighing functions
On a packing line, speed comes from simple controls. The LE2 is built around the functions you use all day: zero, tare, unit selection (kg/lb) and net/gross. Tare is especially useful when you use standard cartons, void fill or reusable totes.
Three capacities on the same LE2 concept
Different flows require different capacities. The LE2 is available in three versions, so you can match the parcel scale to your typical shipment weights without paying for unnecessary range.
- 30 kg capacity with 10 g readability for small and medium parcels where detail matters.
- 60 kg capacity with 20 g readability for heavier cartons and multi-item shipments.
- 150 kg capacity with 50 g readability when you regularly weigh bulky packages and freight-ready loads on the bench.
Mains power or rechargeable battery
Not every weighing point is next to a socket, and in many facilities the packing area shifts during peak season. The LE2 parcel scale (also used as a shipping scale) can be used with the supplied mains adapter or with the included rechargeable battery (7.2 V / 0.8 Ah). That makes it easy to set up a temporary station for returns, quality checks or cycle counts without running extension leads across walkways.
For longer periods away from mains power, an additional spare battery can be added to extend continuous working time. The power-saving auto-off function helps preserve battery capacity when the scale is not in active use.
RS232 serial interface for data transfer
Manual re-typing of weights is slow and prone to errors, especially in busy dispatch. The LE2 includes an RS232 serial interface for transferring weighing results to external equipment. Depending on your setup, weight data can be sent to a PC, a warehouse management system (WMS) terminal or a label printing solution.
Technical data
-
Weighing platform: Stainless steel
-
Platform size: 325 × 320 mm
-
Display: Backlit LCD
-
Digit height: 25 mm
-
Indicator size: 270 × 90 mm
-
Power supply: Mains adapter or included battery
-
Battery (included): 7.2 V / 0.8 Ah
-
Interface: RS serial port (RS232)
-
Approval: CE approved / CE marked
-
Available models (capacity / readability): 30 kg / 10 g, 60 kg / 20 g, 150 kg / 50 g
-
Basic functions: Zero, Tare, Unit change (kg/lb)
